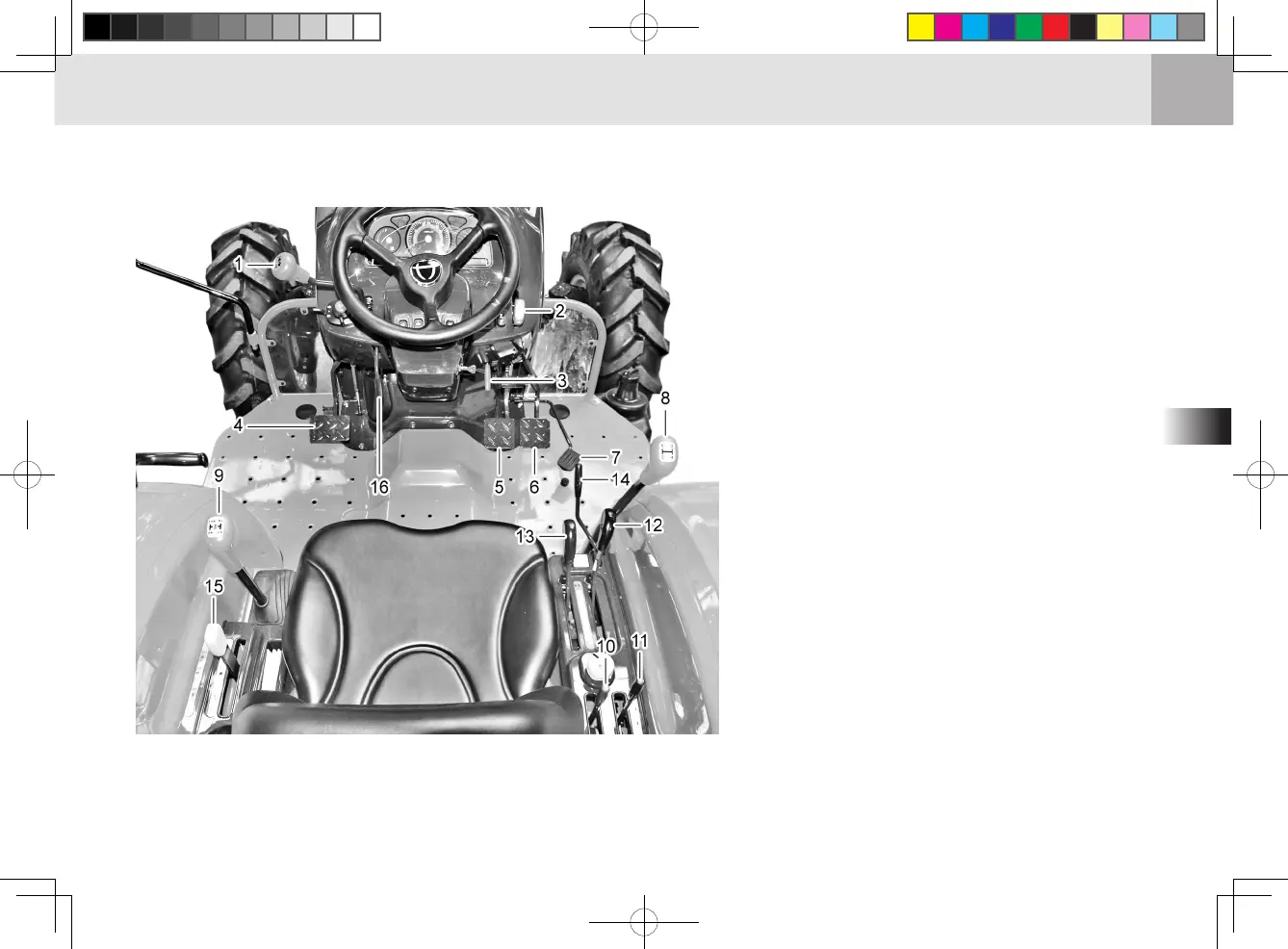

FUNCTION DESCRIPTION AND OPERATING TIPS
(1) Hydraulic Shuttle Shift Lever
(2) Hand Throttle Lever
(3) Parking Brake Lever
(4) Clutch Pedal
(5) brake Pedal (LH)
(6) brake Pedal (RH)
(7) Foot Throttle
(8) Main Shift Lever
(9) Range Shift Lever
(10) Double Acting Lever (A, B)
(11) Double Acting Lever (C,D) (Option)
(12) Lift Position Control Lever
(13) Draft load control lever
(14) One-touch lifting/lowering lever
(15) PTO Shift lever
(16) Tilt Control Lever
TD2O437A
OPERATING THE CONTROLS
[ROPS-MANUAL]
