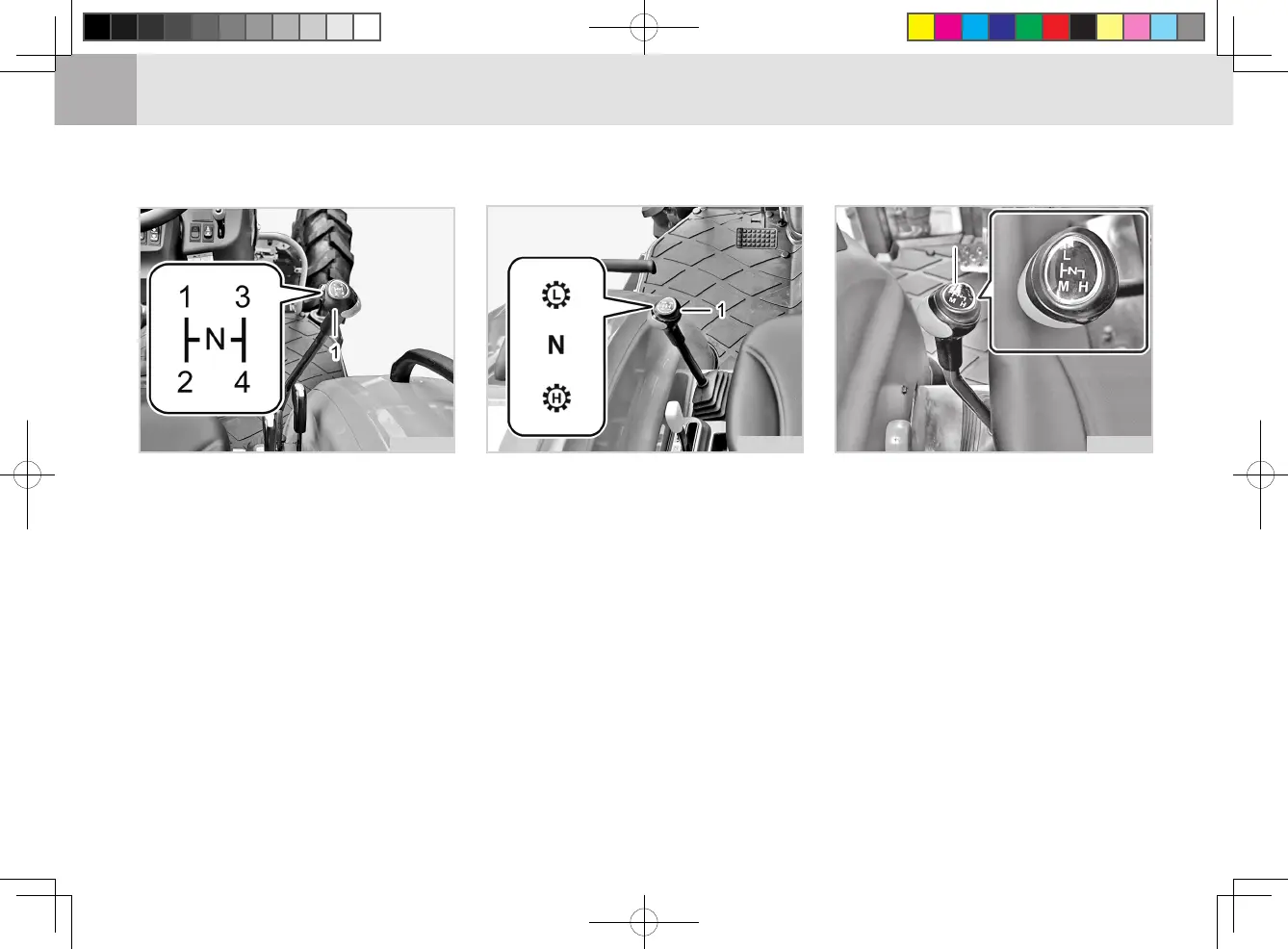

(1) Range Shift Lever(1) Range Shift Lever
High speed, mid speed and low
speed can be selected by the range
shift lever. Make sure to shift the
range shift lever after the tractor is
completely stopped by depressing
the brake pedal.
If the lever is not moved freely or
makes abnormal noise, put the lever
into the neutral position and then try
to shift the lever.
High speed and low speed can be
selected by the range shift lever.
Make sure to shift the range shift
lever after the tractor is completely
stopped by depressing the brake
pedal.
If the lever is not moved freely or
makes abnormal noise, put the lever
into the neutral position and then try
to shift the lever.
[HST]
RANGE SHIFT LEVER
[MANUAL]
D21O411AD22O412A
Four speeds can be selected by
moving this main shift lever in “H”
shaped path. As the gear is a syn-
chromesh type, shift operation is
possible with the clutch pedal de-
pressed during driving.
In total, 8 forward driving speeds and
8 reverse driving speeds are provid-
ed by combination of the main shift
lever (4 speeds), range shift lever (2
speeds), shuttle shift lever.
T22O413A
(1) Main Shift Lever
MAIN SHIFT LEVER
[MANUAL]
