Daedong DK4520 - Remote Hydraulics

5
-
22
DK4220/4520/4720/5020/5320/5520/6020
Port Coupler Size
A, B, C, D PT 1 / 2
Lever 1 Push Pull
Valve
1 Port
A Out In
B In Out
Lever 2 Push Pull
Valve
2 Port
C Out In
D In Out
Pressure Returning
This machine is equipped with one
double-acting valves (Detent type)
which can supply hydraulic pressure
to exterior devices. Utilize them prop-
erly according to implement specifi-
cations.
• For the self-return type double act-
ing lever, it returns to its neutral
position to block the hydraulic uid
when it is pushed/pulled and then
released. Therefore, this type of
double acting valve lever should be
pulled or pushed continuously for
operation which is suitable for an
implement with a short operating
time, such as a hydraulic cylinder.
• For the detent type double acting
valve lever, it keeps its position af-
ter it is pulled or pushed to a certain
position. Therefore, it is not neces-
sary to hold the lever to a certain
position which is suitable for an
implement with a long operating
time, such as the hydraulic motor.
Additionally, you can attach one
more double acting valve please
contact KIOTI dealer.
TD2O524A

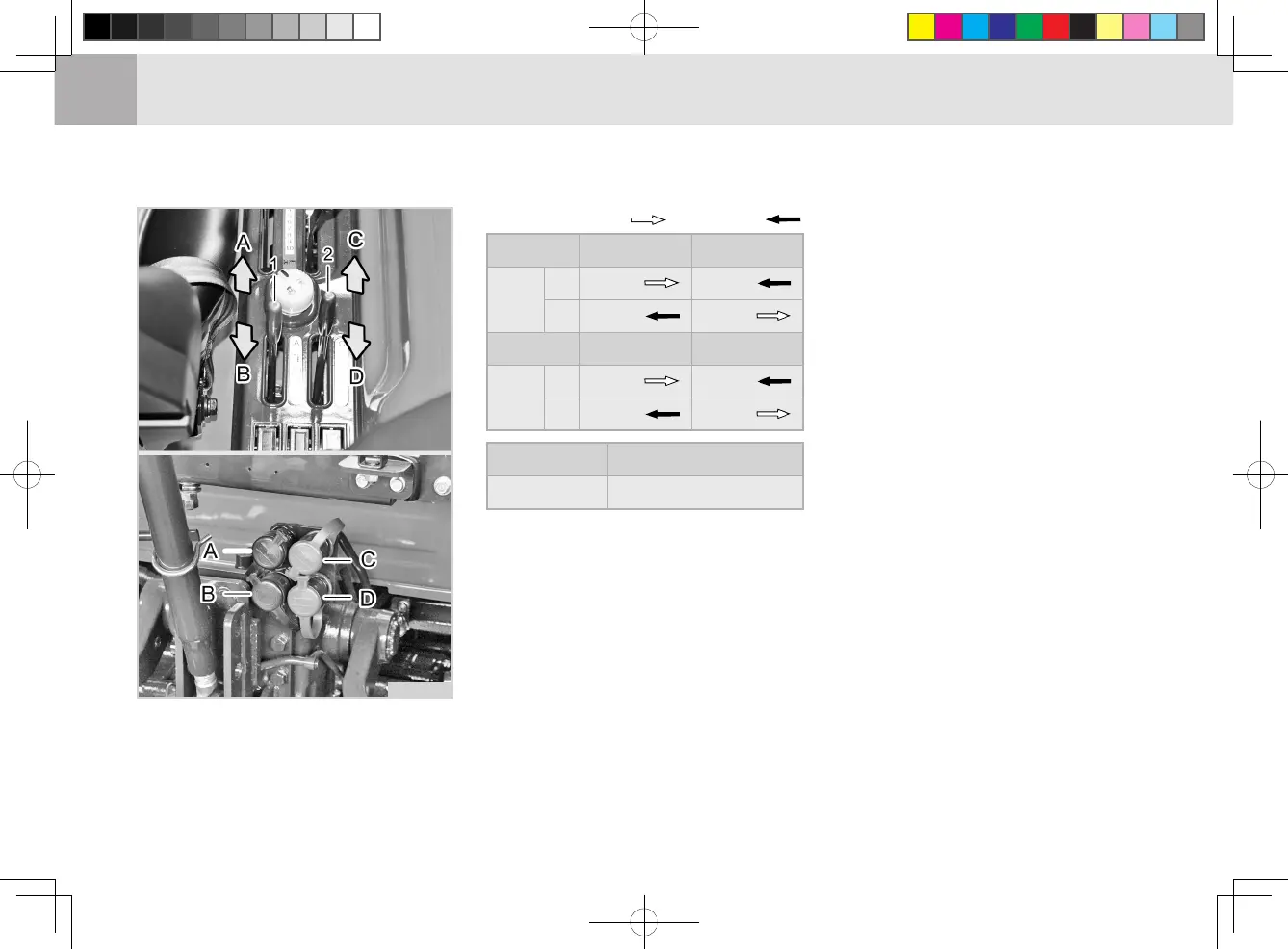

(1) Double Acting Valve 1, Lever 1
(2) Double Acting Valve 2, Lever 2
(A) Port A (C) Port C
(B) Port B (D) Port D
REMOTE HYDRAULICS
DOUBLE ACTING LEVER (IF EQUIPPED)
