Daedong DK4520 - Joystick Lever; 3 Rd Function Valve Control Button; 3 Rd Function Valve Control But- Ton

4
-
38
DK4220/4520/4720/5020/5320/5520/6020
This joystick lever is used mainly to
operate the front end loader when
attached to the tractor.
For detailed information, refer to
"Handling Loader" in Chapter 6.

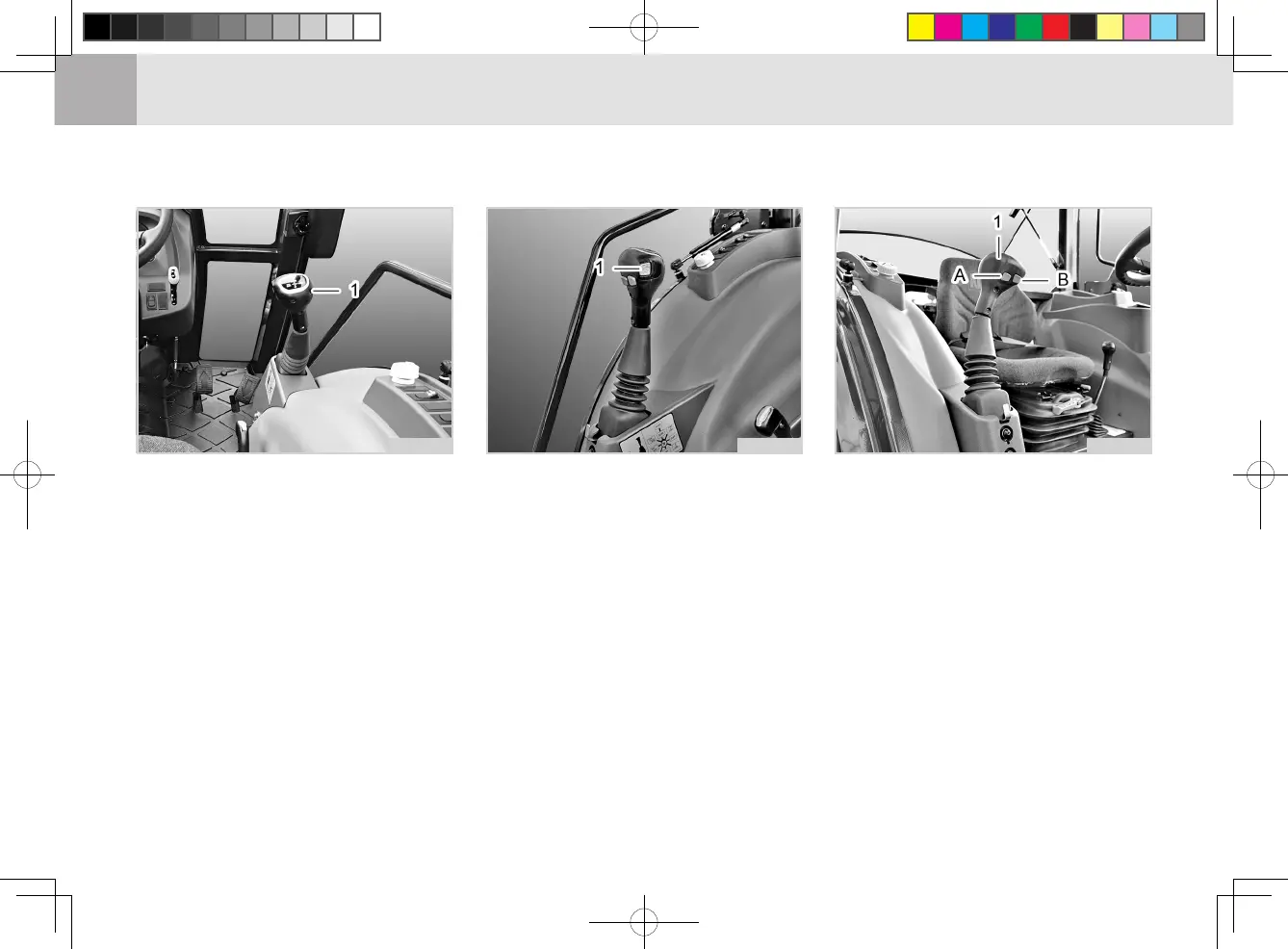

D22O409A
(1) Joystick Lever
JOYSTICK LEVER
While this button is pressed, the
engine rpm rises to the maximum
rpm, and when released, the engine
speed decreases to the set hand
throttle position.
If the engine speed drops during
load operation, such as loader
operation, press this button to in-
crease engine speed and increase
power to facilitate the operation.
Use it appropriately for high-load
work.
JOYSTICK FINGER RPM UP (OP-
TION)
D22O404A
(1) RPM Up Button
The joystick lever is equipped with a
button for operating the 3rd function
valve as standard. Use the function
by connecting the wiring of the trac-
tor and the 3rd function kit.
D22O420A
(1) Joystick Lever
(A) Open Button (B) Close Button
3RD FUNCTION VALVE CON-
TROL BUTTON
