Daedong DK4520 - Changing Front Axle Case Oil

8
-
32
DK4220/4520/4720/5020/5320/5520/6020
4. Add oil while checking the oil level
with the dipstick attached to the
ller plug. (Refer to the instructions
for the lubrication system in Chap-
ter Maintenance.)
5. After adding oil, fit the filler plug
again.
6. Wait for 15 minutes and check the
oil level again. If the amount is in-
su󰀩cient, add more oil.
(1) Oil Dipstick
(A) Upper Limit
TD2O715A
(1) Oil Filler Plug (2) Drain Plug
1. Remove the drain plugs from the
front axle case (LH/RH) and front
axle support to drain oil.
2. After draining, reinstall the drain
plugs securely.
3. Remove the bleeding plug from the
front axle case and add oil through
the ller hole.
TD2O714A

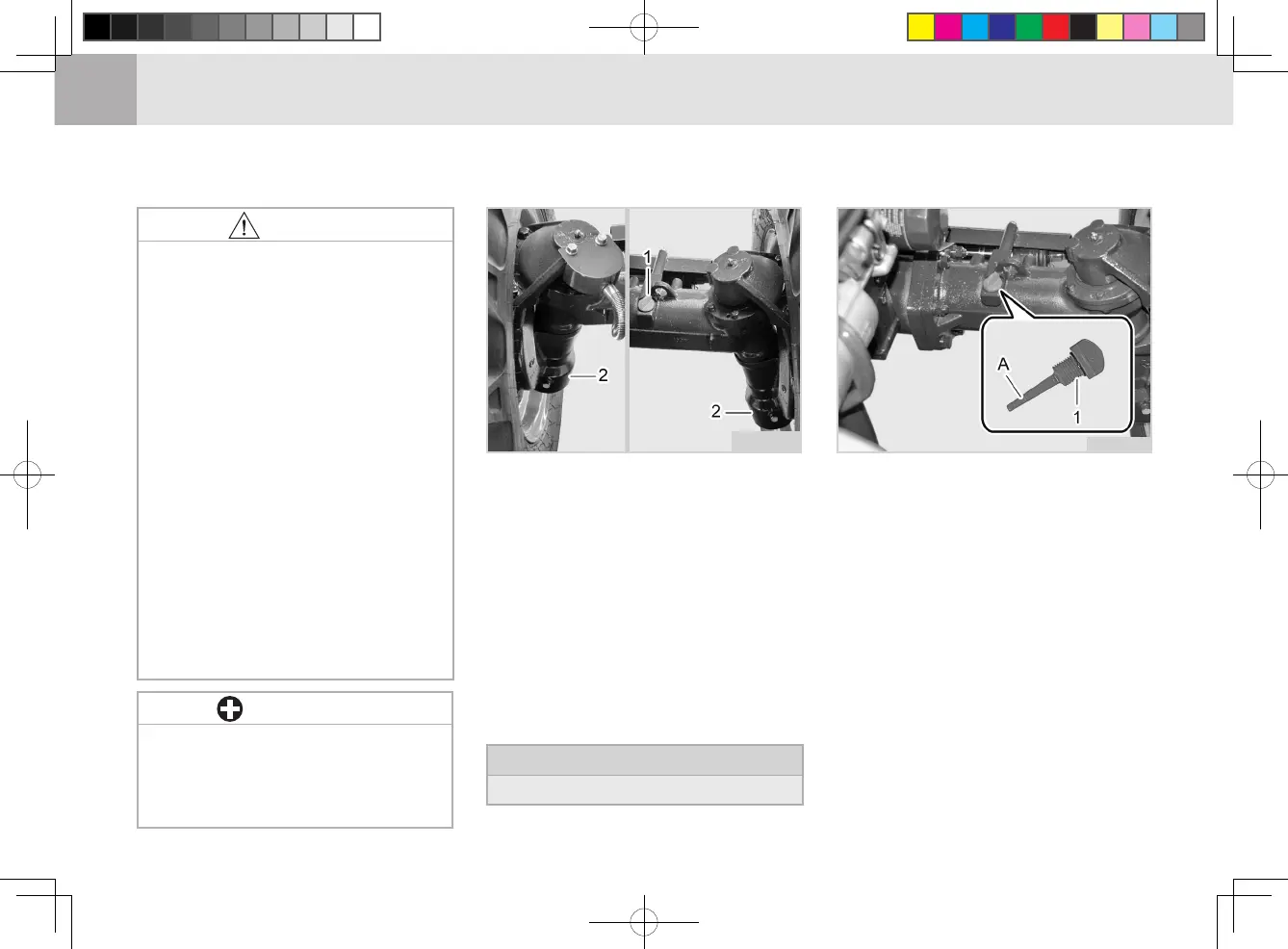

CHANGING FRONT AXLE CASE OIL
Oil Capacity [U.S. gal(L)]
1.48 (5.6)
IMPORTANT
• Use only specied engine oil
and KIOTI genuine filter to
insure smooth operation and
durability of the engine.
CAUTION
To avoid injury:
• Be sure to stop the engine before
changing the uid or replacing
the lter.
• Check the engine oil level before
every operation of the tractor. If
the engine oil is insu󰀩cient, the
engine can be damaged, and this
is not covered by warranty. Be
sure to add the engine oil when
its level is below the lower limit of
the oil dipstick.
• Do not dispose of used oil and oil
lter into drainage and other plac-
es not designated by regulations.
Observe applicable regulations
when disposing used oil and
lters.
