FUNCTION DESCRIPTION AND OPERATING TIPS
HOW TO DEACTIVATE PTO
CRUISE
Depress the brake pedal or turn off
the PTO cruise switch to deactivate
the function.
If the PTO cruise is deactivated by
depressing the brake pedal with the
PTO cruise switch in the “ON” po-
sition, pressing the RES (+) switch
once resumes the function to the
previous state.

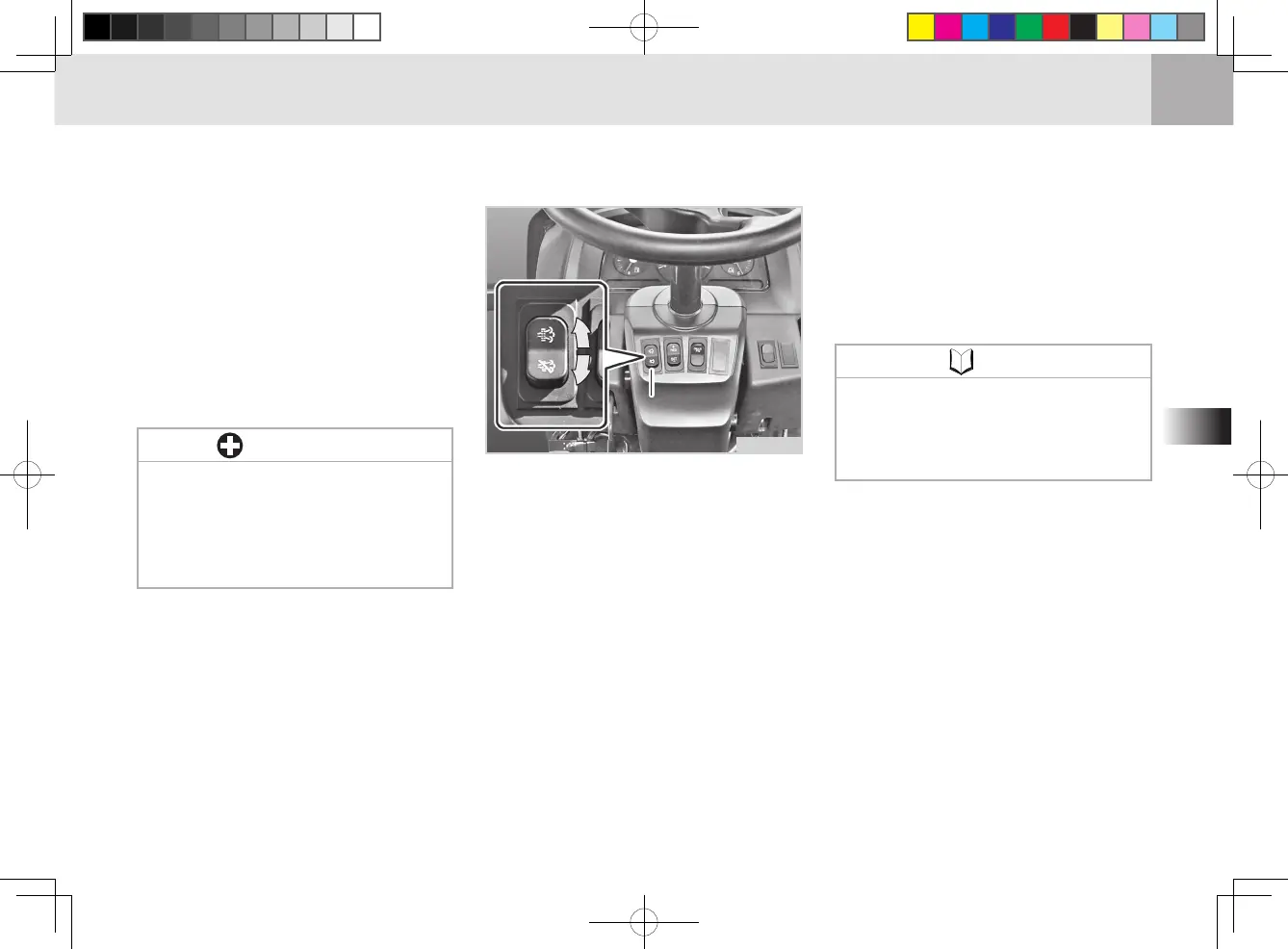

DPF REGENERATION SWITCH
(1) DPF Regeneration Switch
(A) Activation (B) Deactivation
DEACTIVATION (LOWER POR-
TION OF SWITCH)
Do not press the deactivation portion
of the switch while the regeneration
process is activated.
However, the switch can be set to
the deactivation position to stop the
regeneration process in emergency.
1
1
1
A
A
A
B
B
B
D21O436A
ACTIVATION (UPPER BUTTON)
Perform the following procedure
when the regeneration warning lamp
comes on :
1. Park the vehicle on level ground
2. Start the engine and run the en-
gine at the idle speed.
3. Depress the brake pedal and lock
it in place.
4. Do not depress the clutch pedal.(if
equipped)
5. Put the range shift lever on the
neutral position
6. Run the engine 3 to 4 minutes.
Then, press the regeneration button
over 2 second.
7. The regeneration underway lamp
blinks after the regeneration warn-
ing lamp goes o󰀨.
Wait for approx. 30 to 40 minutes
until the regeneration process is
completed.
IMPORTANT
• The PTO cruise is not deacti-
vated when depressing one of
the brake pedals with the brake
pedals disconnected from each
other.
NOTE
• The regeneration underway lamp
is turned on when the DPF tem-
perature reaches a certain tem-
perature.
