FUNCTION DESCRIPTION AND OPERATING TIPS
TD2O435E
FLASHED
TD2O436C

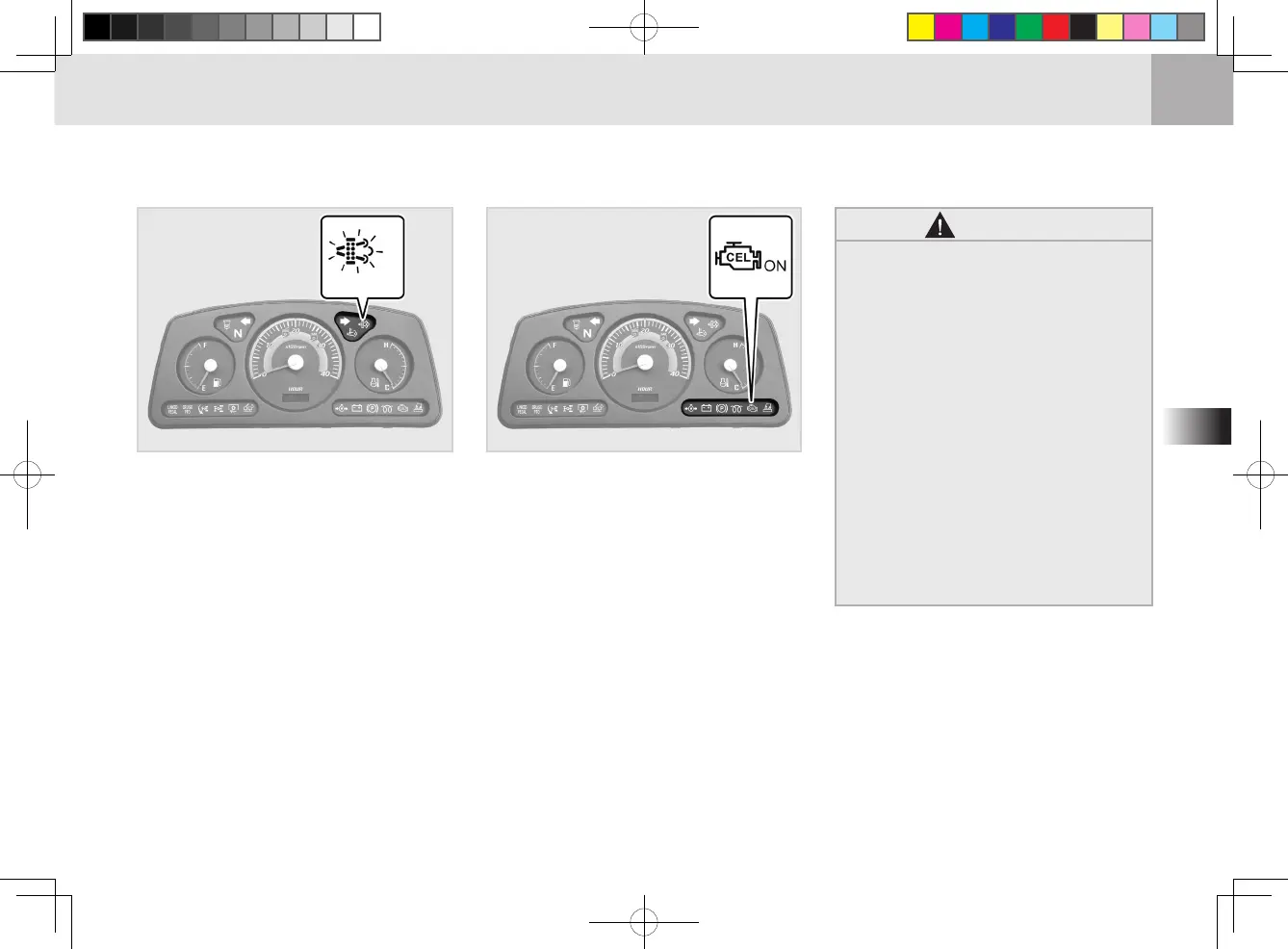

2. Stage 2 warning lamp for DPF
clogging
: DPF Soot Loading Level 160% -
200%
Manual regeneration required.
Engine RPM limit is activated
(below 2,200 rpm)
If the DPF is not regenerated in the
stage 1 warning state, the warning
lamp blinks. In this state, make sure
to perform DPF regeneration pro-
cess. (see page 4-11)
3. Stage 3 warning lamp for DPF
clogging
: DPF Soot Loading Level 200%
or higher
Passive regeneration prohibited.
Engine RPM limit is activated
(below 2,200 rpm)
If the DPF is still not regenerated
even in stage 2, the Check engine
lamp comes on and the DPF needs
to be replaced.
WARNING
•
In the warning level 3 (CEL lamp
ON), both manual and automatic
regeneration processes cannot
be performed.
•
When the DPF warning lamp comes
on, make sure to perform the manu-
al regeneration as the active regen-
eration cannot be performed.
•
Enabling condition for manual
regeneration
- Brake ON
- Engine rpm Idle state
•
If any of the above conditions is
not met during regeneration, the
regeneration mode is deactivated.
