DAELIM DAYSTAR Service Manual

10-3
Crank Case / Transmission / Crankshaft / Kick Starter

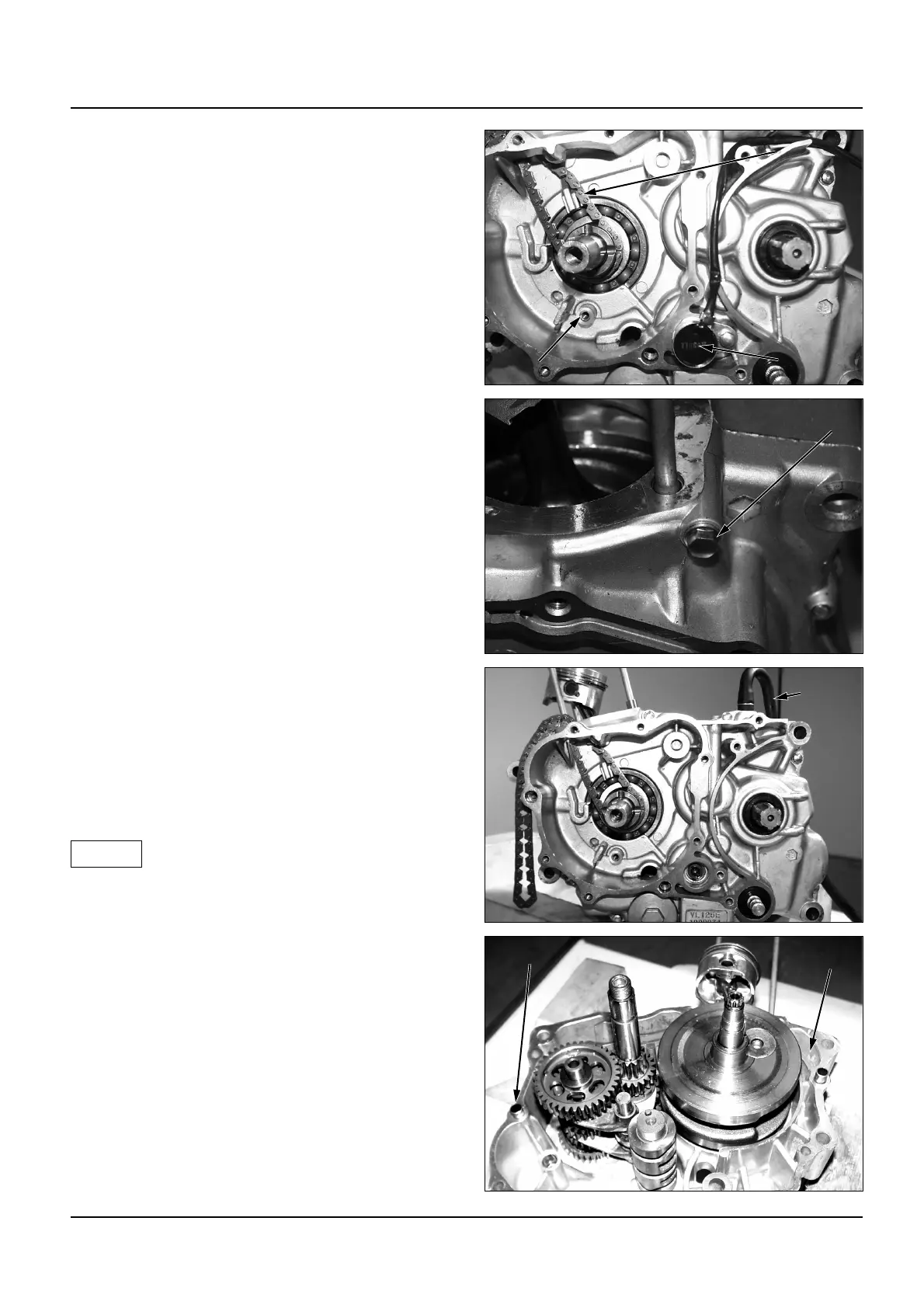

Crankcase Disassembly
 The engine must be separated from the frame
( section 5)
 Refer to the service information for removal of
necessary parts before disassembling the
crankcase. Remove the cam chain set plate and
cam chain.
 Remove the gear change switch.
 Remove the 6mm bolt form right crank case.
 Remove the crank case breather tube.
 Loosen the ten 6mm crankcase bolts in a
crisscross pattern in 2~3 steps, remove the
bolts.
 Place the crank case down, and separate the
right crank case from the left crankcase by
tapping the crank case with a soft hammer.
 Do not remove the crankcase mating surfaces
crookedly.
 Remove the dowel pins and gasket.

