DAELIM DAYSTAR Service Manual

12-4
Seat/Exhaust Muffler
Tool Box
● Remove the R. front cover (removing with a
key.)
● Loosen the tool box stay pinch bolt.
● Assembly is done in reverse of disassembly.

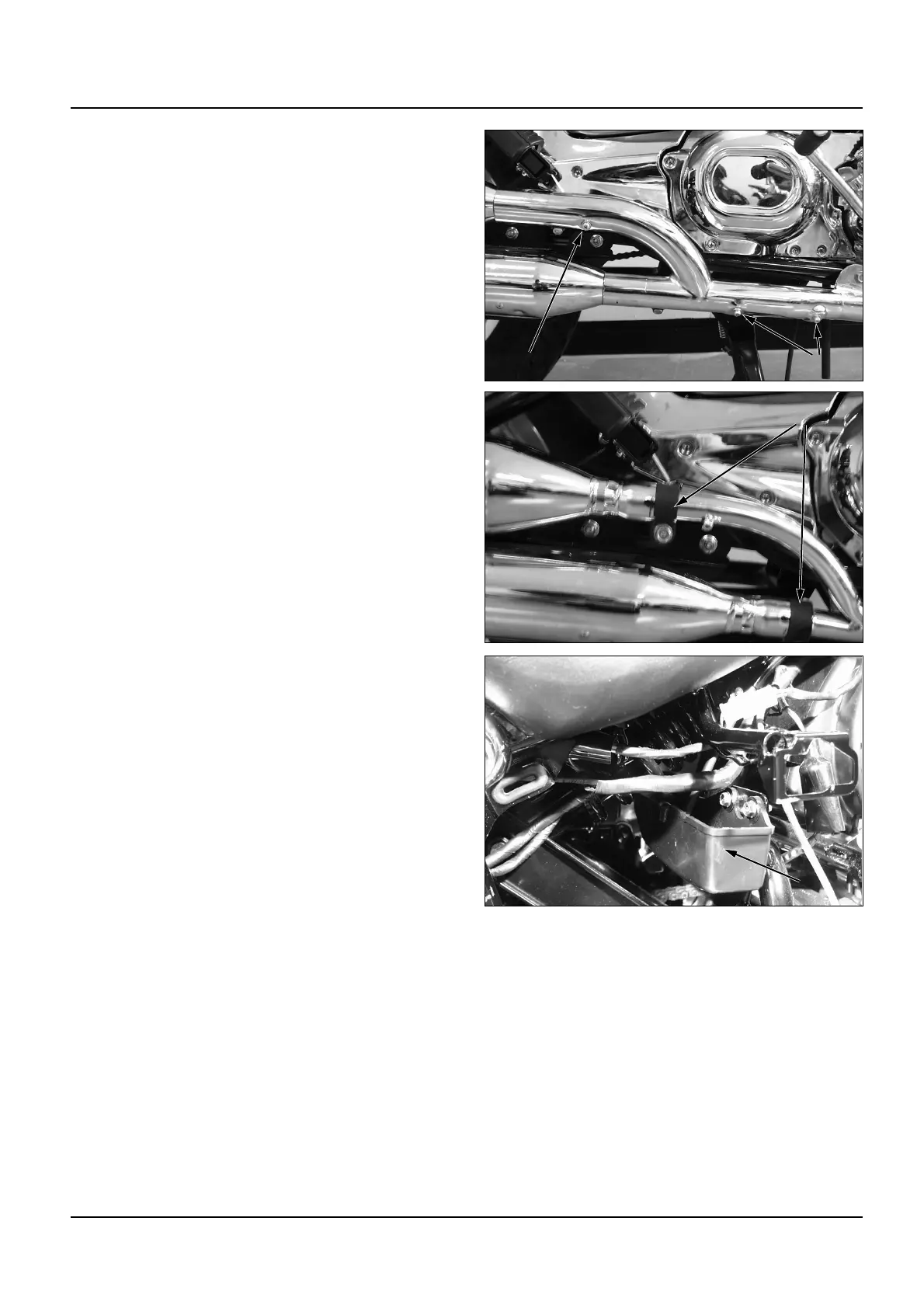

Muffler Removal/Assembly
● Loosen the 3 pan screw of muffler protector
and remove the protector.
● Loosen the upper/low muffler band.
● Loosen the 2 flange nut of upper muffler stay
and remove the muffler comp
