DAELIM DAYSTAR Service Manual

10-4
Crank Case / Transmission / Crankshaft / Kick Starter
Inspection

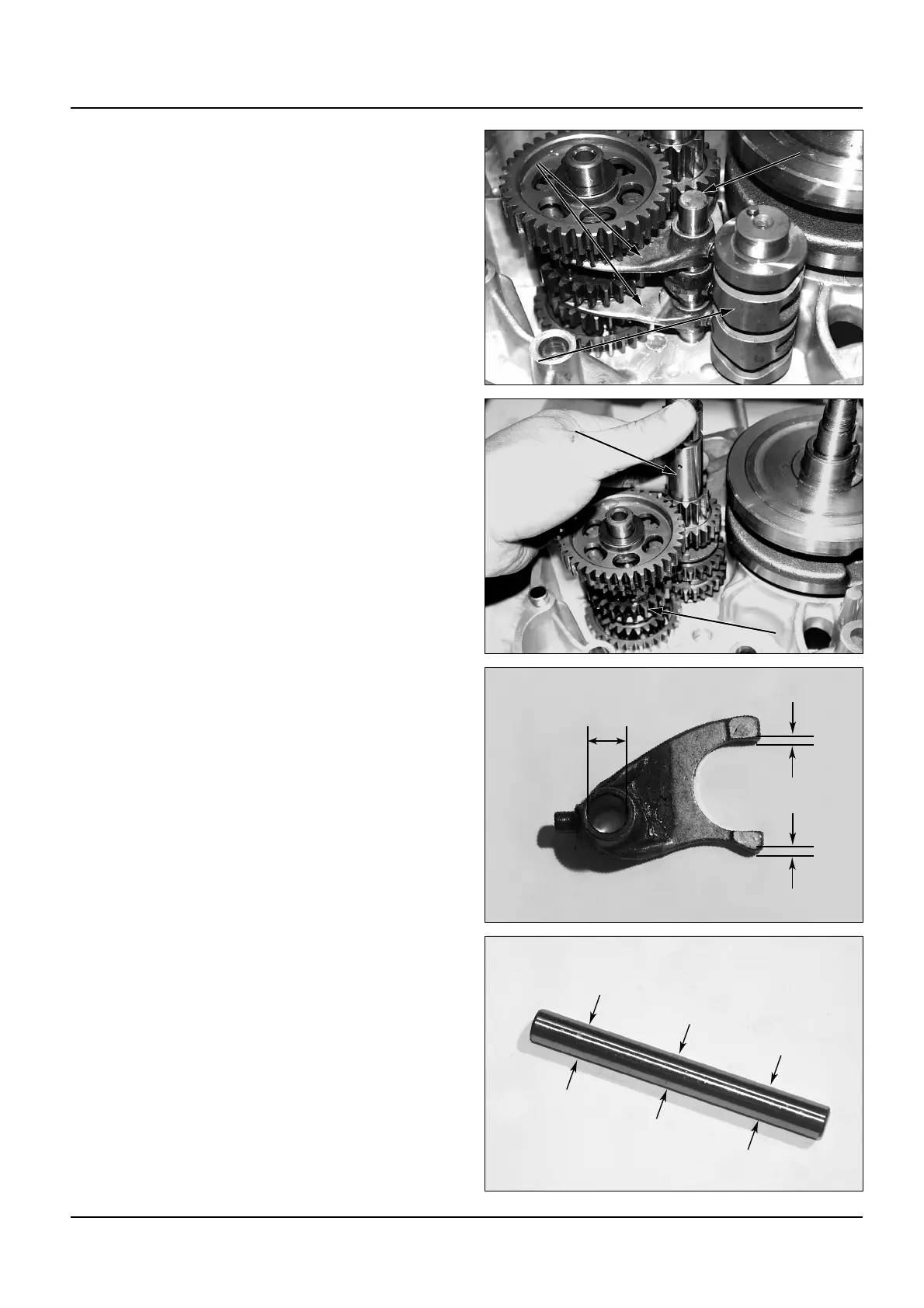

 Inspect the shift fork for wear and damaging.
 Measure the shift fork inside diameter and
projecting parts thickness in shift fork.
Service Limit:
Inside diameter: 12.05mm(0.474in)
projecting parts thickness: 4.5mm(0.18in)
 Inspect the shift fork shaft for wear and
damaging.
 Measure the shift fork shaft outside diameter
in friction part.
Service Limit: 11.96mm(0.47in)
Transmission Disassembly
 Remove the shift fork shaft.
 Separate the shift fork and the shift drum.
 Remove the main shaft and the counter shaft.
 Disassemble the main shaft and the counter
shaft.
