DAELIM DAYSTAR Service Manual

19-10
Lights/Switches/Horn
The horn should sound when a fully charge
12V battery is connected across he horn
terminals.

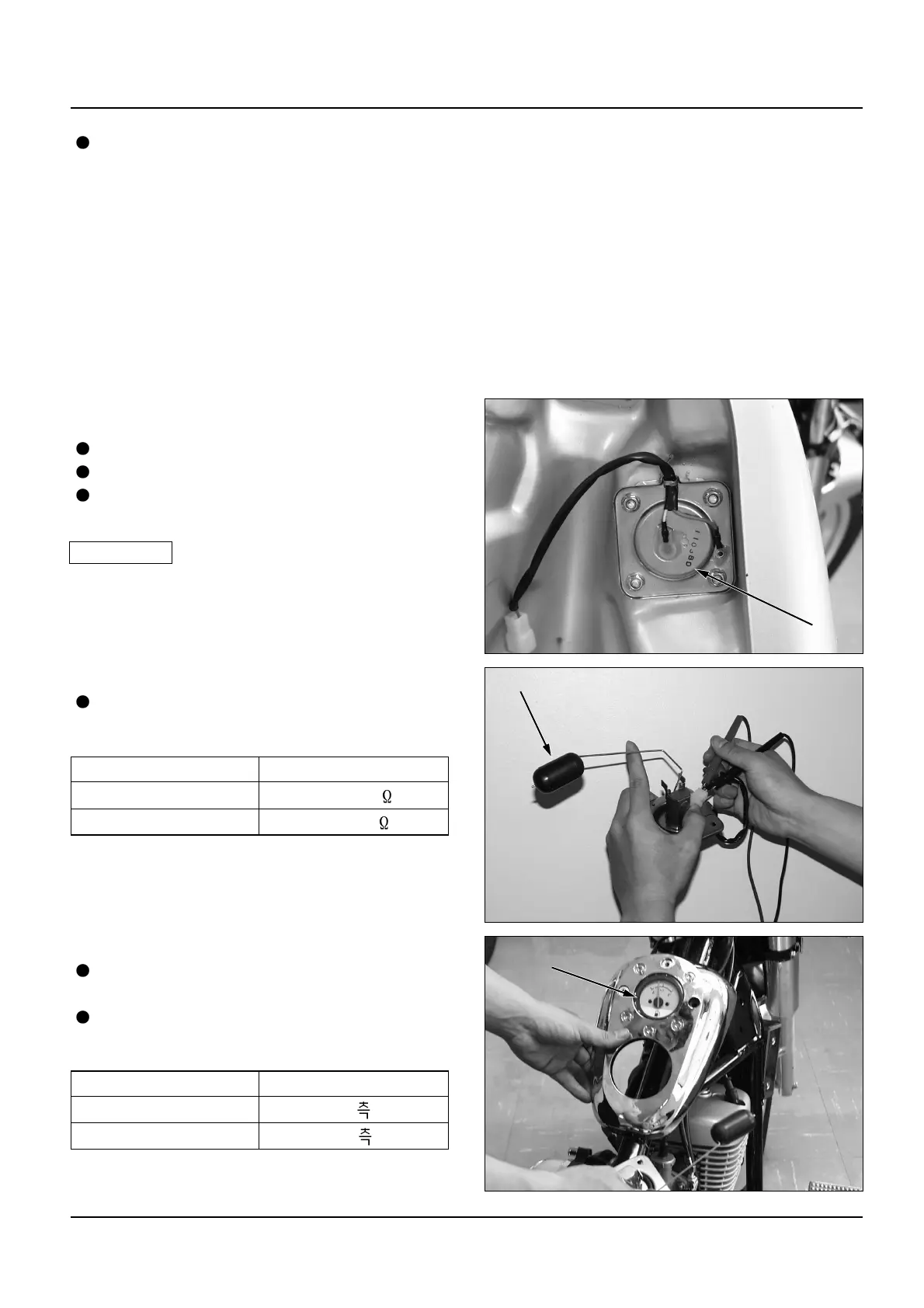

Fuel Unit
Remove the fuel tank.
Drain fuel out of tank at clean container.
Loosen the 4 nuts and remove the fuel unit
from tank.
• Be careful float arm is not bended
Unit Inspection
Measure the resistance between both terminals
moving float up and down.
Fuel Meter Inspection
Connect wire coupler of fuel unit and put the
main switch on.
Check the position of the meter indicator
moving float up and down.
Float Position Resistance
High 0.02~0.1
Low 13~25.5
Float Position Resistance
High F
Low E
!
CAUTION
△
Fuel Unit
Fuel Unit
Fuel Unit
Fuel Unit
Fuel Unit
Fuel UnitFuel Unit
Fuel Unit
Fuel Unit
Fuel Unit
Fuel Unit
Fuel Unit
Fuel Unit
Float
Float
Float
Float
Float
FloatFloat
Float
Float
Float
Float
Float
Float
Fuel Meter
Fuel Meter
Fuel Meter
Fuel Meter
Fuel Meter
Fuel MeterFuel Meter
Fuel Meter
Fuel Meter
Fuel Meter
Fuel Meter
Fuel Meter
Fuel Meter

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
