DAELIM DAYSTAR Service Manual

19-6
Lights/Switches/Horn

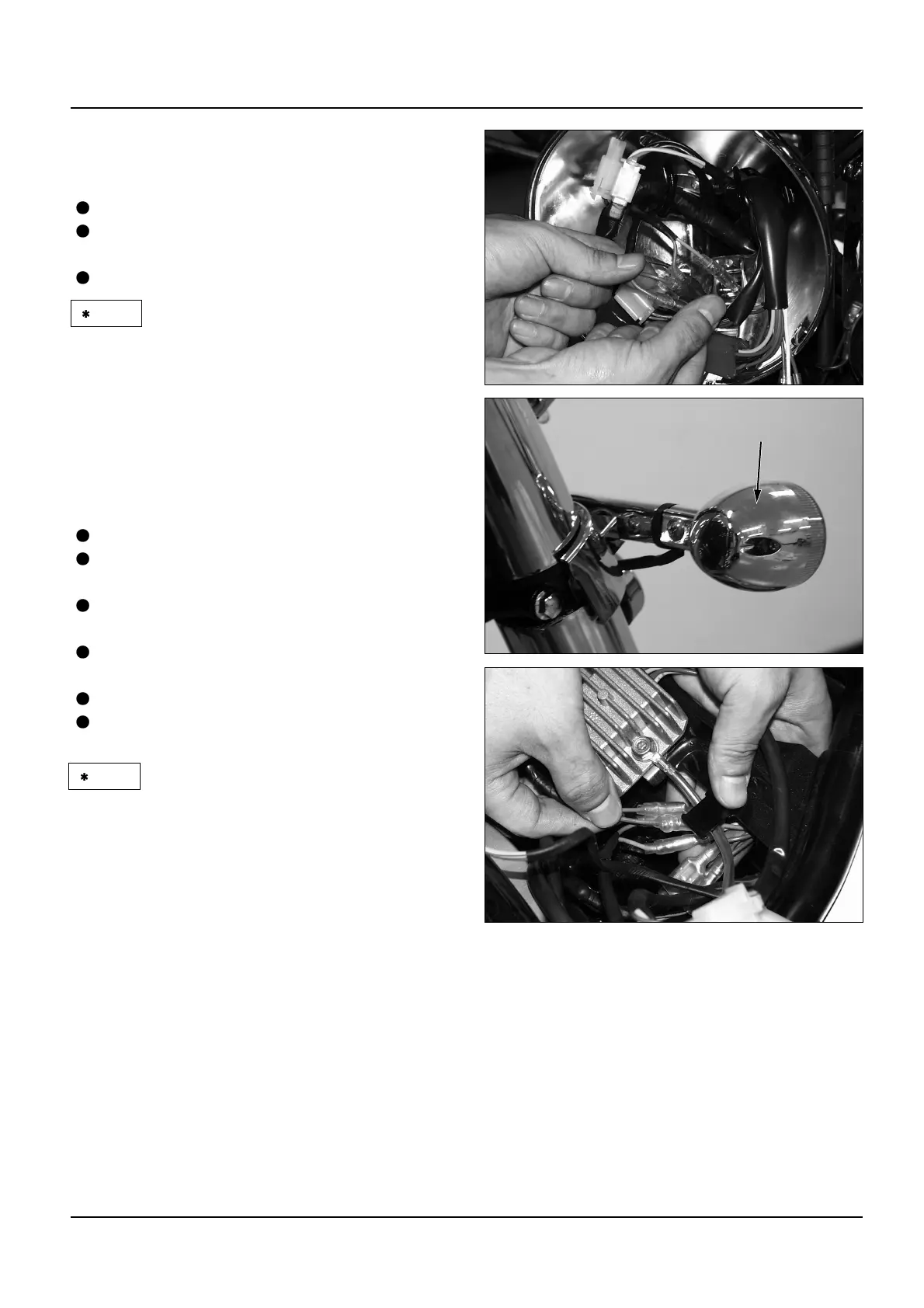

Winker Ass’y Removal
Front
Loosen the head light case screw (2 screws)
Remove the winker connector connection in
state of inclining for ward the head light lens.
Remove the winker.
• Place the wiring and cables exactly according
to a wiring diagram.
• Installation is done in the reverse order of
removal.
Rear
Remove the seat.
Loosen the bolt and remove the winkr
connector connection.
Remove the winker coupler socket/grab rail
ass’y.
Push the winker wire clamp and loosen the
nut.
Remove the winker coupler socket.
Assembly is done in the reverse order of
disassembly.
• When assembling, align the projecting part the
winker coupler socket with the grab rail
groove.
• When installing, install the winker wire into
the clamp of the grab rail exactly.
• Place the wire in exact position according to
the intensity of wire.
NOTE
NOTE
Front Winker
Front Winker
Front Winker
Front Winker
Front Winker
Front WinkerFront Winker
Front Winker
Front Winker
Front Winker
Front Winker
Front Winker
Front Winker
