DAELIM DAYSTAR Service Manual

3-8
Maintenance

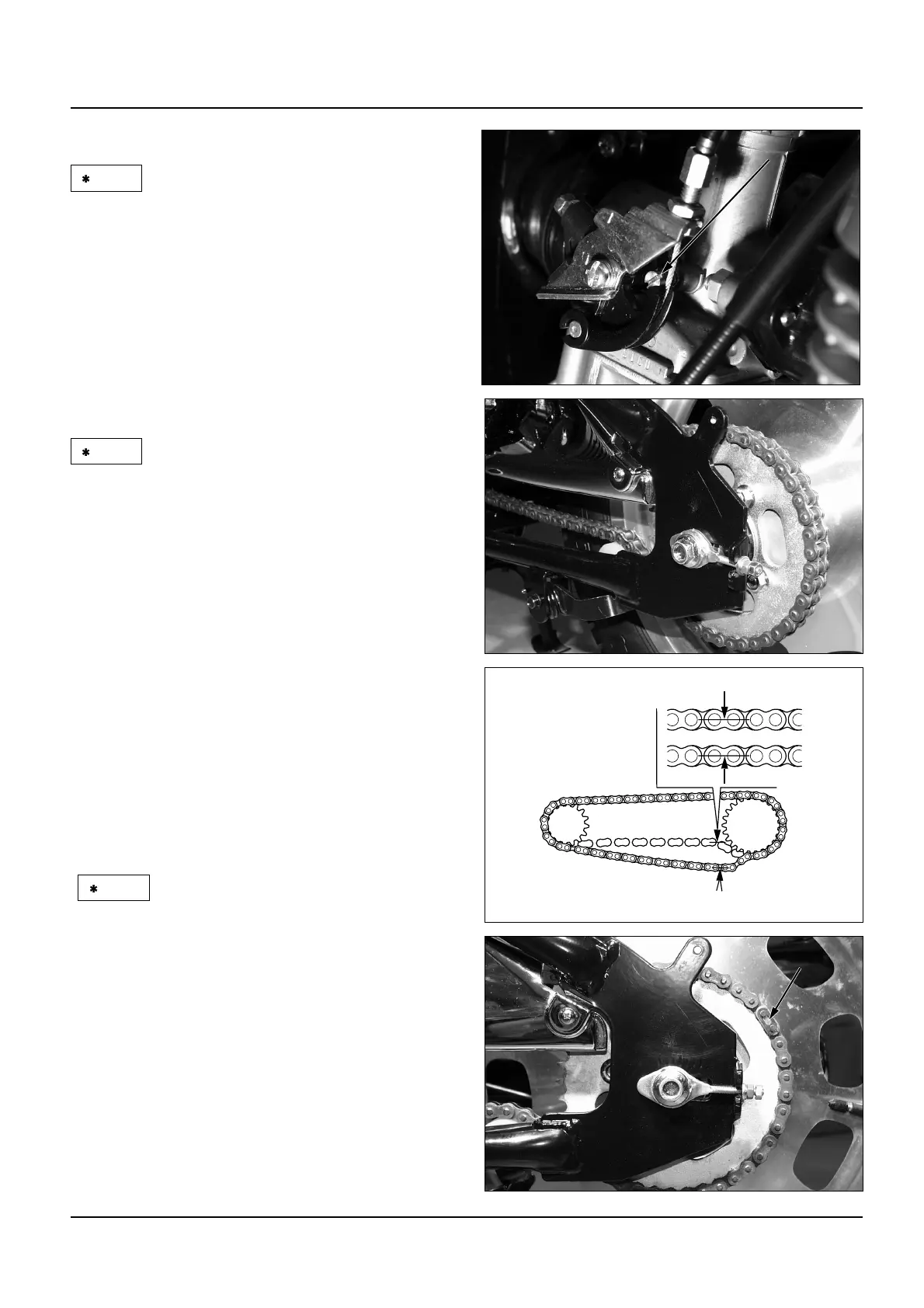

Carburetor Idle Speed
Inspect all other engine adjustments are within
specifications and adjust idle speed.
The engine must be warm for accurate
adjustment. Support the motorcycle on a level
surface and shift the transmission into neutral.
Check the idle speed and adjust by truning the
throttle stop screw if necessary.
Drive Chain
Stop the engine to inspect the drive chain,
otherwise fingers can be caught in the drive
chain while the drive chain is operating.
Chain Free Play Adjustment
 Stop the engine and shaft the gear into neutral,
support the motorcycle on a level surfase.
 Remove the chain tensioner.
 Move the position of chain tensioner roller up
and down with hands to check if the chain free
play is within recommended range.
Free Play: 50~60mm
 If necessary, adjust the drive chain free play.
 Adjust by loosening the axle nut and lock nuts
in the right/left chain adjusters and turning the
adjusting nut.
Adjust the chain adjuster reading scale into the
same place in the right and left sides.
Tighten the axle nut
Torque: 88kgf-m(88N.m)
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop ScrewThrottle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Throttle Stop Screw
Retainer Clip
Retainer Clip
Retainer Clip
Retainer Clip
Retainer Clip
Retainer ClipRetainer Clip
Retainer Clip
Retainer Clip
Retainer Clip
Retainer Clip
Retainer Clip
Retainer Clip
NOTE
NOTE
NOTE
Removal/Inspection
 Inspect the drive chain for contamination.
50~60mm

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
