DAELIM DAYSTAR Service Manual

19-2
Lights/Switches/Horn
Speedometer/Tachometer/Fuelmeter
Removal
Loosen the speedometer cable nut and remove
the cable from the meter.
Remove the cable guide and meterstay from
top bridge.
Remove the seat and fuel tank, and separate
the meter code from wire harness.

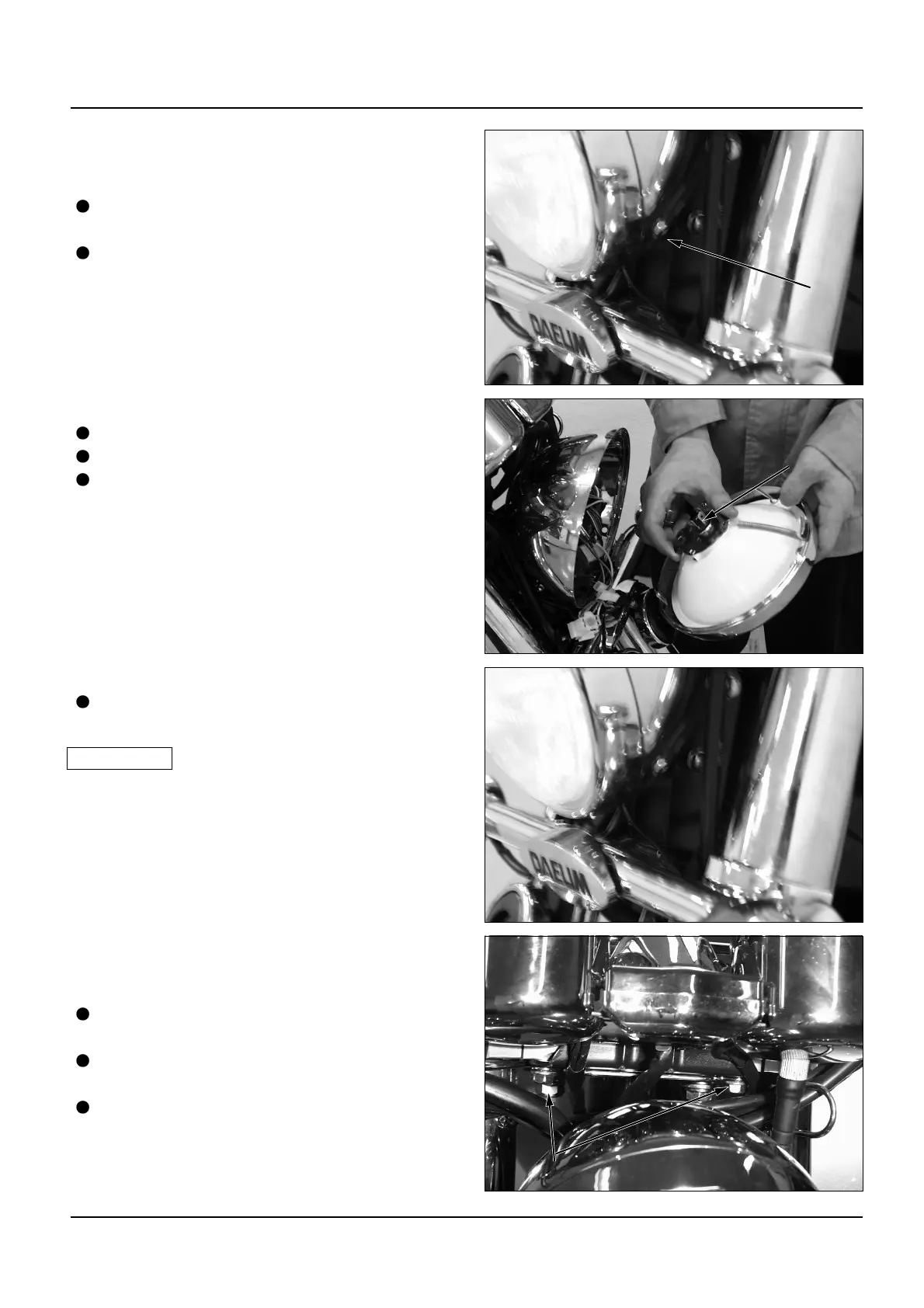

Bulb Replacement
Remove the headlight rim and unit.
Remove the spring.
Remove the headlight socket and position light
socket and replace the headlight bulb.
Installation
Install the headlight in the reverse order of
removal.
• Align the index mark on the headlight case
with the index mark on the bracket.
Headlight
Removal
Remove the two headlight mounting bolts and
remove the headlight from the bracket.
Remove the individual code from the wire.
!
CAUTION
△
Screw
Screw
Screw
Screw
Screw
ScrewScrew
Screw
Screw
Screw
Screw
Screw
Screw
Headlight Socket
Headlight Socket
Headlight Socket
Headlight Socket
Headlight Socket
Headlight SocketHeadlight Socket
Headlight Socket
Headlight Socket
Headlight Socket
Headlight Socket
Headlight Socket
Headlight Socket
Meter Cable Nut
Meter Cable Nut
Meter Cable Nut
Meter Cable Nut
Meter Cable Nut
Meter Cable NutMeter Cable Nut
Meter Cable Nut
Meter Cable Nut
Meter Cable Nut
Meter Cable Nut
Meter Cable Nut
Meter Cable Nut

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
