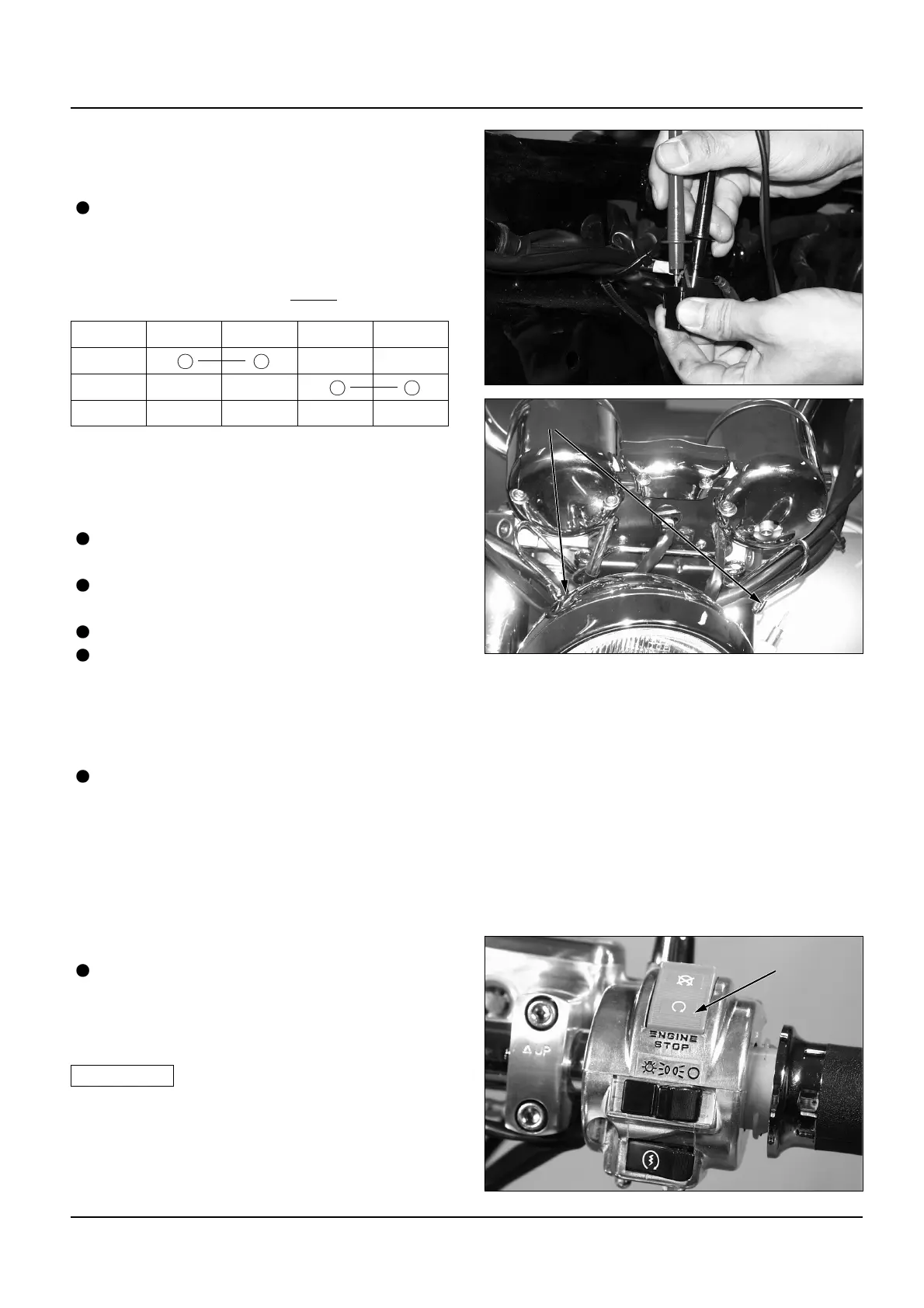

DAELIM DAYSTAR Service Manual

19-7
Lights/Switches/Horn
Main Switch
Inspection
Remove the fuel tank. Disconnect the main
switch code coupler connection. Check for
continuity between terminals in each switch
position. There should be a continuity between
the colour coded wire. (○○)
Removal
Remove the combination switch upper/under
cover.
Remove the 4 tapping screw from the meter
stay.
Remove the main switch coupler.
Remove the main switch
Installation
Install the main switch in the reverse order of
removal.
Engine Stop Switch
When happening the urgent situation during
driving, it is equipment for operating the
engine stop to “OFF” position and braking the
engine.
• After checking for being “RUN” position
before starting, start the main switch in “ON”
position.
IG E BAT
1
BAT
2
OFF
ON
Color Code Black/White Green Red Black
Engine Stop Switch
Engine Stop Switch
Engine Stop Switch
Engine Stop Switch
Engine Stop Switch
Engine Stop SwitchEngine Stop Switch
Engine Stop Switch
Engine Stop Switch
Engine Stop Switch
Engine Stop Switch
Engine Stop Switch
Engine Stop Switch
Cable Guide
Cable Guide
Cable Guide
Cable Guide
Cable Guide
Cable GuideCable Guide
Cable Guide
Cable Guide
Cable Guide
Cable Guide
Cable Guide
Cable Guide
!
CAUTION
△

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
