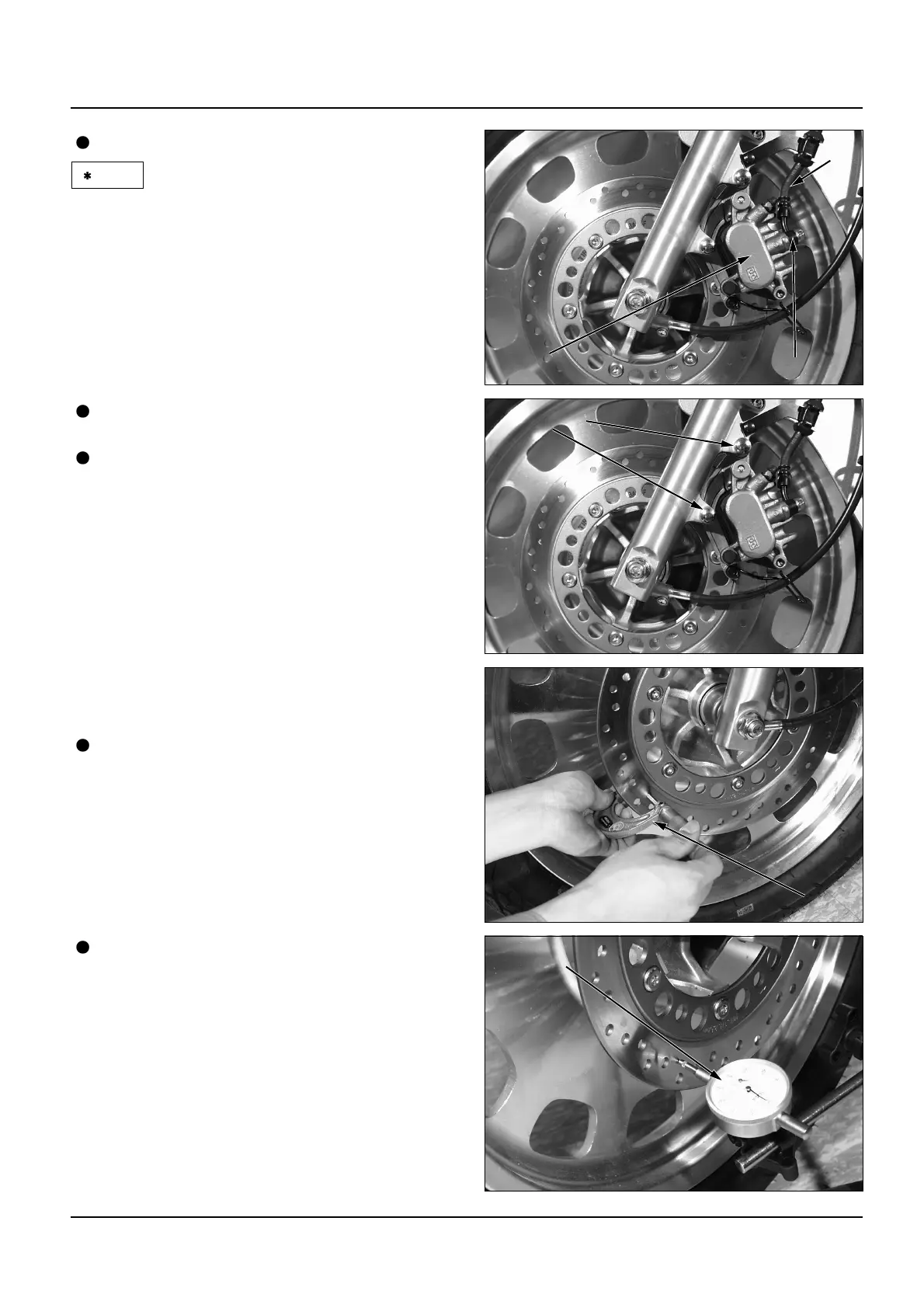

DAELIM DAYSTAR Service Manual

15-6
Hydraulic Brake
Install the brake caliper into the left front fork.
• Be careful not to damage the brake pad.
Tighten the caliper bracket bolt.
Torque: 3.0kgf-m
Tighten the hanger pin.
Torque: 1.8kgf-m
Measure the Brake disk for warpage.
Service Limit:0.3mm
Brake Disk
Inspection
Measure the thickness of the disk.
Service Limit: 3.0mm(0.12in)
NOTE
Brake Hose
Brake Hose
Brake Hose
Brake Hose
Brake Hose
Brake HoseBrake Hose
Brake Hose
Brake Hose
Brake Hose
Brake Hose
Brake Hose
Brake Hose
Brake Caliper
Brake Caliper
Brake Caliper
Brake Caliper
Brake Caliper
Brake CaliperBrake Caliper
Brake Caliper
Brake Caliper
Brake Caliper
Brake Caliper
Brake Caliper
Brake Caliper
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose BoltBrake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Bracket Bolt
Bracket Bolt
Bracket Bolt
Bracket Bolt
Bracket Bolt
Bracket BoltBracket Bolt
Bracket Bolt
Bracket Bolt
Bracket Bolt
Bracket Bolt
Bracket Bolt
Bracket Bolt
Micro Meter
Micro Meter
Micro Meter
Micro Meter
Micro Meter
Micro MeterMicro Meter
Micro Meter
Micro Meter
Micro Meter
Micro Meter
Micro Meter
Micro Meter
Dial Gauge
Dial Gauge
Dial Gauge
Dial Gauge
Dial Gauge
Dial GaugeDial Gauge
Dial Gauge
Dial Gauge
Dial Gauge
Dial Gauge
Dial Gauge
Dial Gauge
