DAELIM DAYSTAR Service Manual

8-8
Cylinder Head / Valve
Valve Guide Replacement
 When replacing the valve guide, valve seat
must be amended.
 Heat the cylinder head equally to 130-140.
 Avoid heating over 150
 Avoid performing the unskilled work. It is
caused a burn.
 When heating the cylinder Head, do not heat it
sectionally using a gas burner. It is caused the
twist of cylinder Head.

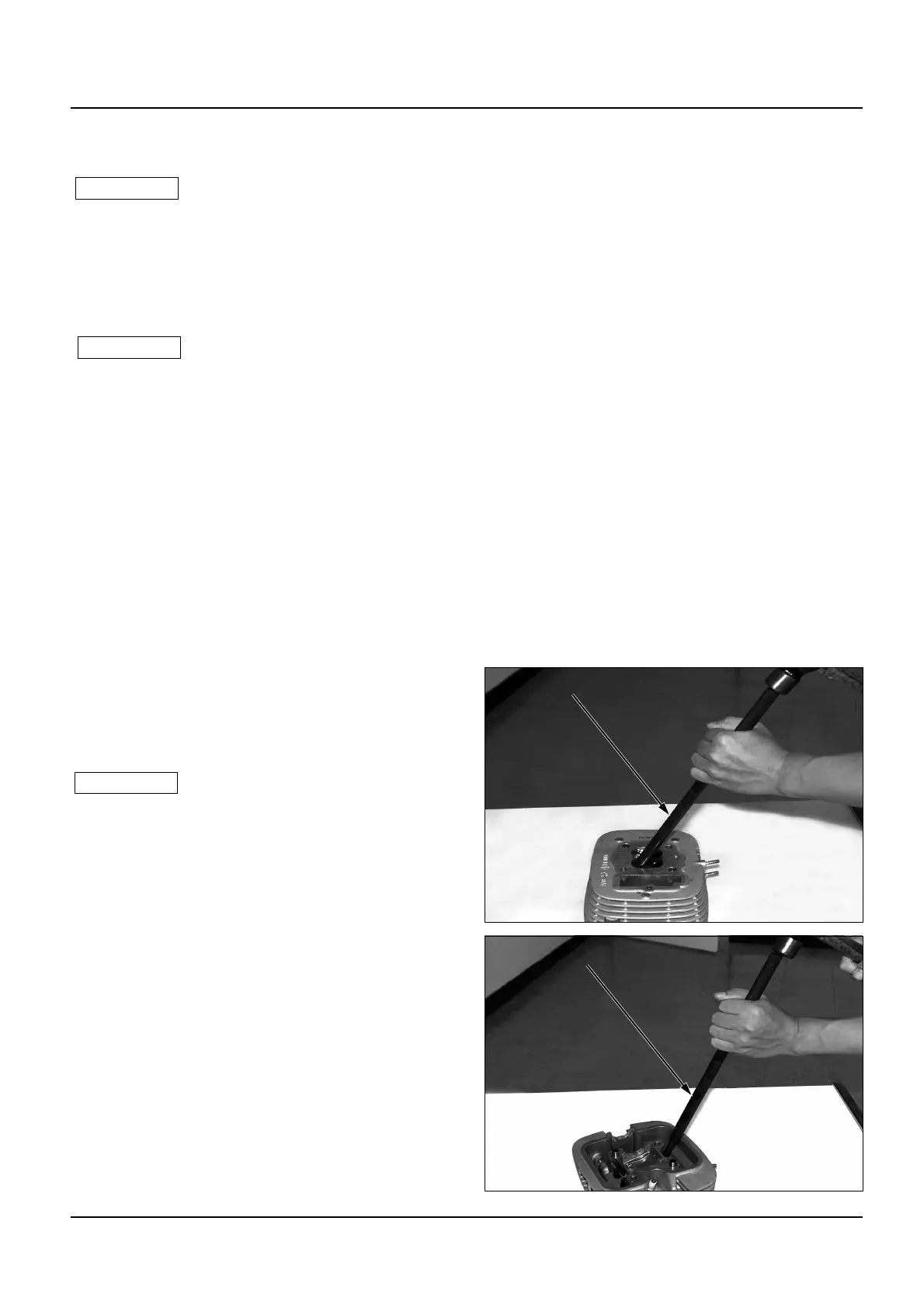

 Hold the cylinder head, and remove the valve
guide from the combustion chamber using
valve guide driver.
Tool : Valve guide driver
 Avoid the cylinder head from damaging.
 Install the new o-ring into the new valve guide.
 Insert the valve guide in the top of the cylinder
head.
Tool: Valve guide driver.
 After inserting the valve guide, install the
valve guide reamer in the combustion chamber
of the cylinder head and trim the valve guide.
!
CAUTION
△
!
CAUTION
△
!
CAUTION
△
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide DriverValve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide DriverValve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver
Valve Guide Driver

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
