DAELIM DAYSTAR Service Manual

15-3
Hydraulic Brake
Brake Fluid / Bleeding

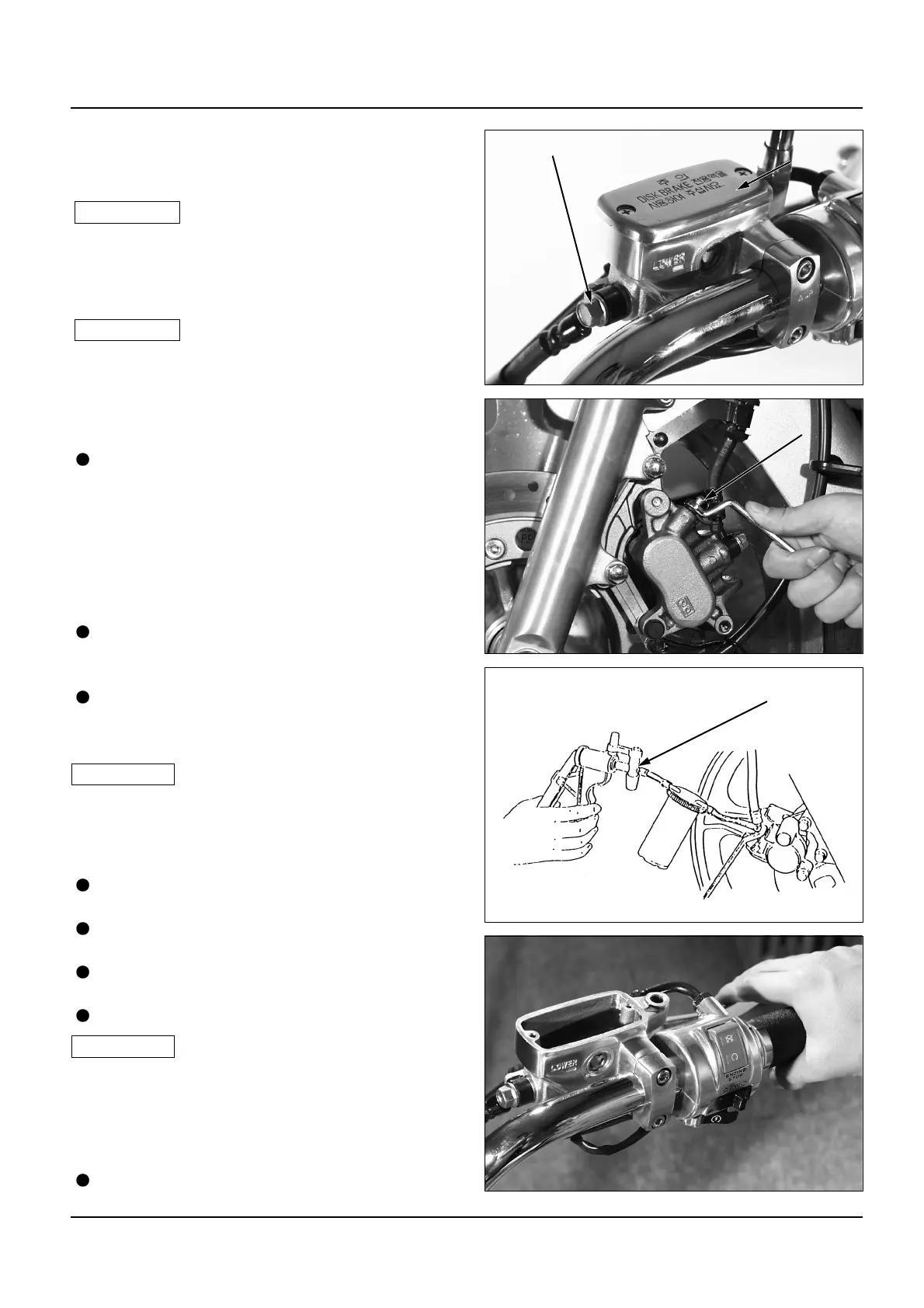

Brake Fluid Replacement
• A contaminated brake disk or pad reduces
stopping power. Discard contaminated pads
and clean the disk with a high quality brake
degreasing agent.
• Check the fluid level often while filling the
reservoir. Avoid spilling fluid on painted,
plastic or rubber parts. Place a cloth over these
parts whenever the system is serviced.
Remove the master cylinder cap and
diaphragm from the master cylinder. Connect
a bleed hose to the caliper bleed valve.
Loosen the bleed valve and pump the brake
lever until no more fluid flows out of the bleed
valve.
Brake Fluid Filling
Tighten the bleed valve and fill the master
reservoir with DOT 3 or DOT 4 brake fluid to
the upper level.
Install the master cylinder. Operate the brake
lever until air bubbles do not appear in the
plastic hose.
• Do not mix different types or fluid. They are
not compatible.
Bleeding
Connect a commercially available brake
bleeder to the bleed valve.
Remove the bleed valve while pumping the
brake bleeder.
Repeat the above procedures until brake fluid
appear in the brake bleeder.
Add brake fluid.
•
Check the fluid level often. Add fluid when the
fluid level in the master cylinder reservoir is low.
• If air is entering the bleeder from around the bleed
valve threads, seal the threads with teflon tape.
Close the bleed valve and operate the brake
lever, checkthere is air sponge.
!
CAUTION
△
!
CAUTION
△
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master CylinderMaster Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose BoltBrake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Bleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Bleed ValveBleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Bleed Valve
Brake Bleeder
Brake Bleeder
Brake Bleeder
Brake Bleeder
Brake Bleeder
Brake BleederBrake Bleeder
Brake Bleeder
Brake Bleeder
Brake Bleeder
Brake Bleeder
Brake Bleeder
Brake Bleeder
!
CAUTION
△
!
CAUTION
△

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
