DAELIM DAYSTAR Service Manual

10-9
Crank Case / Transmission / Crankshaft / Kick Starter

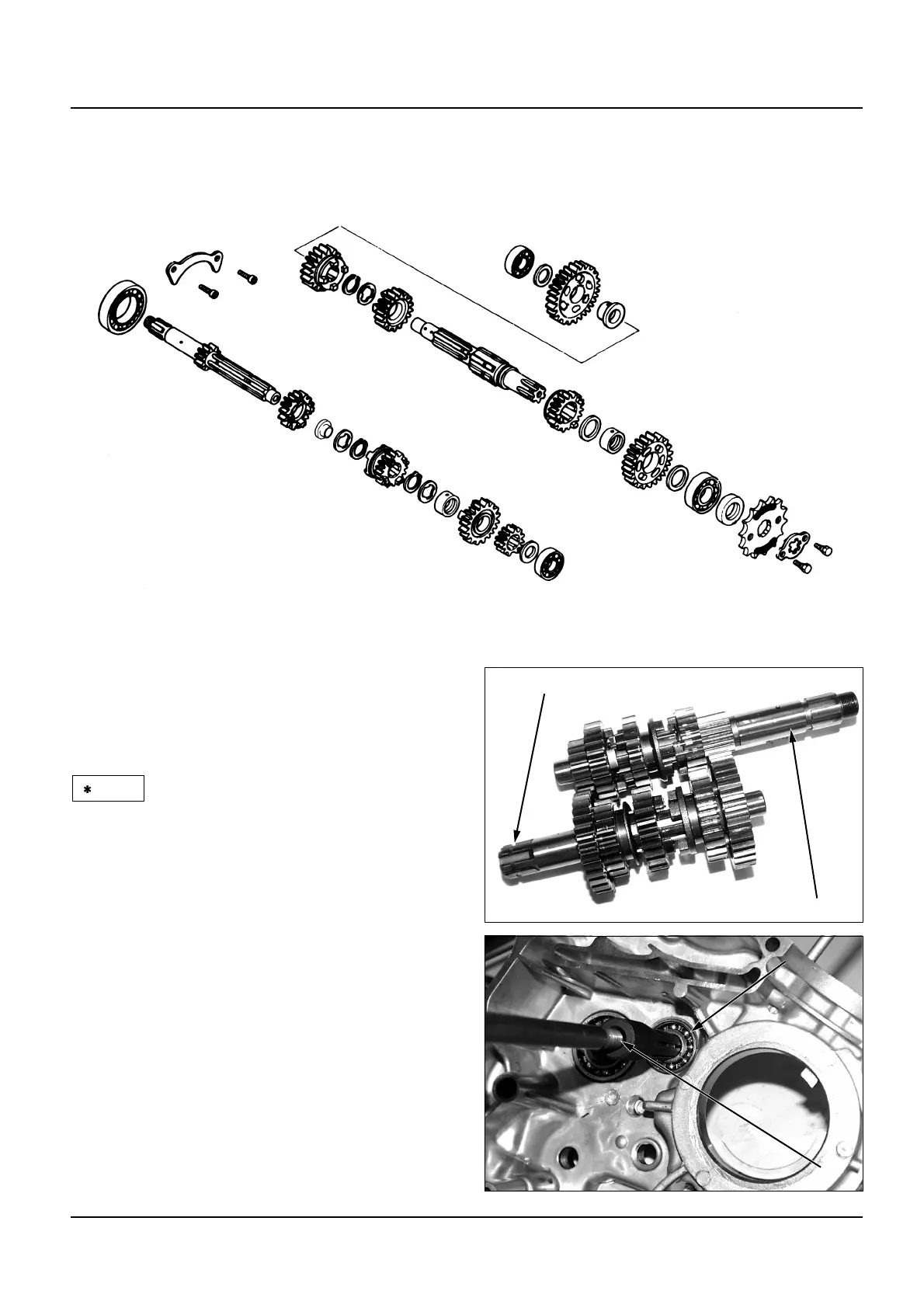

Transmission Assembly
 Coat the gear and gear bush with clean engine
oil and install the mainshaft and counter shaft.
 Check the gears for freedom of movement or
rotation on the shaft.
 Note the installation direction of each snap
ring.
Do not use the worn snap ring again.
Check the snap rings are seated in the grooves
spinning the rings. Align the end gaps of the
snap ring with the grooves of spline.
 Install the mainshaft and countershaft into the
left crankcase together.
NOTE
Main Shaft
Main Shaft
Main Shaft
Main Shaft
Main Shaft
Main ShaftMain Shaft
Main Shaft
Main Shaft
Main Shaft
Main Shaft
Main Shaft
Main Shaft
Counter Shaft
Counter Shaft
Counter Shaft
Counter Shaft
Counter Shaft
Counter ShaftCounter Shaft
Counter Shaft
Counter Shaft
Counter Shaft
Counter Shaft
Counter Shaft
Counter Shaft
Main Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Main Shaft BearingMain Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Main Shaft Bearing
Remover 15mm
Remover 15mm
Remover 15mm
Remover 15mm
Remover 15mm
Remover 15mmRemover 15mm
Remover 15mm
Remover 15mm
Remover 15mm
Remover 15mm
Remover 15mm
Remover 15mm

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
