DAELIM DAYSTAR Service Manual

3-4

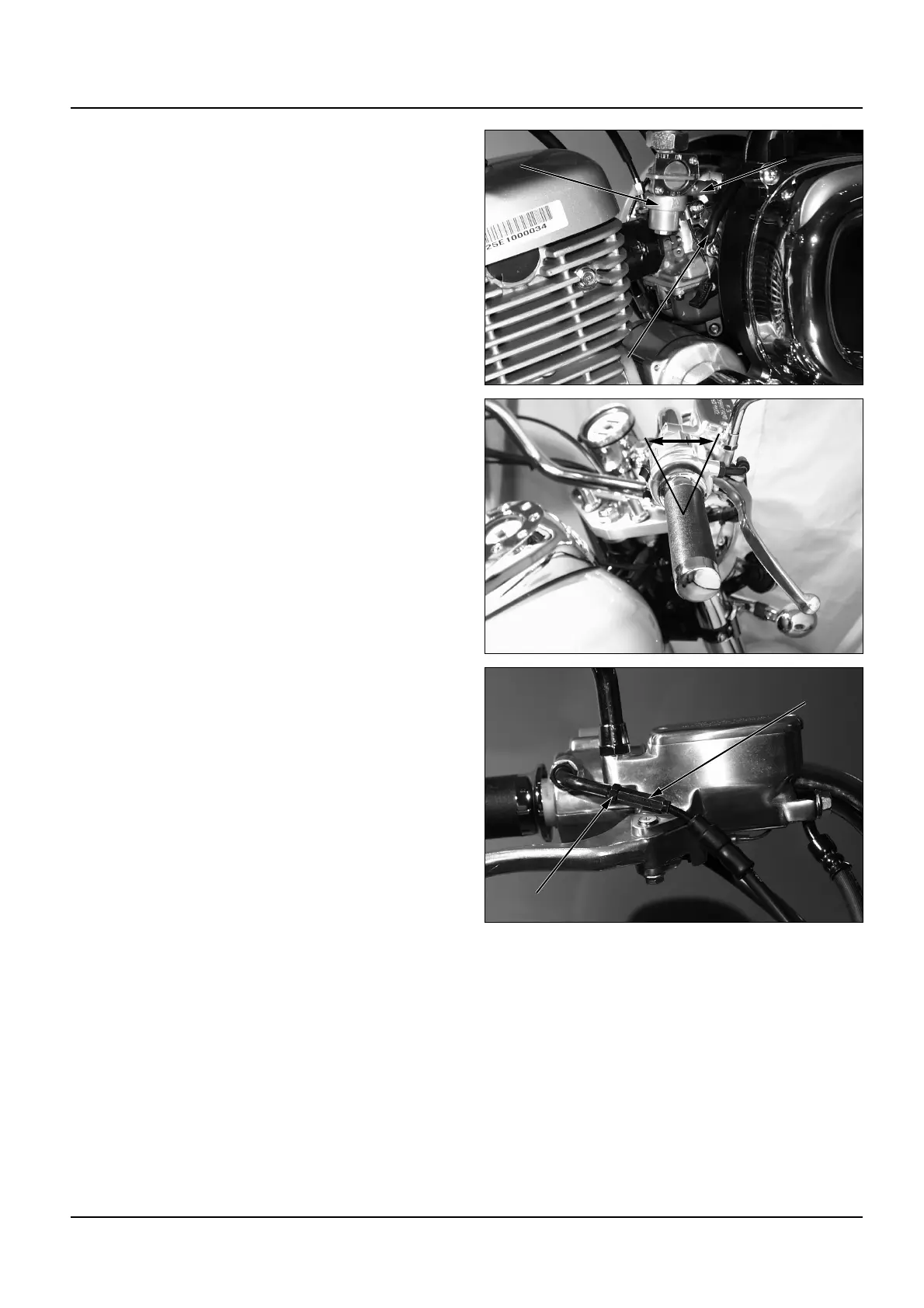

Maintenance
Fuel Line
 Check the fuel lines for deterioration, damage,
or leakage. Replace the fuel lines.
Throttle Grip Operation
 Check the throttle grip for smooth operation.
 Complete opening and automatic closing in
all steering positions.
 Lubricate the throttle cables if throttle
operation is not smooth (2-7)
 Make sure if there is no deterioration,
damage, or kinking in the throttle cables.
 Measure the throttle grip free play at the
throttle grip flange.
Free Play : 2~6mm(0.078~0.236in)
 Adjust the free play by loosening the lock nut
and turning the adjuster. Tighten the lock nut.
 Recheck the throttle free play.
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Cock
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Fuel Tube
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Choke Cable
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Lock Nut
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster
Adjuster

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
