DAELIM DAYSTAR Service Manual

12-2
Seat/Exhaust Muffler

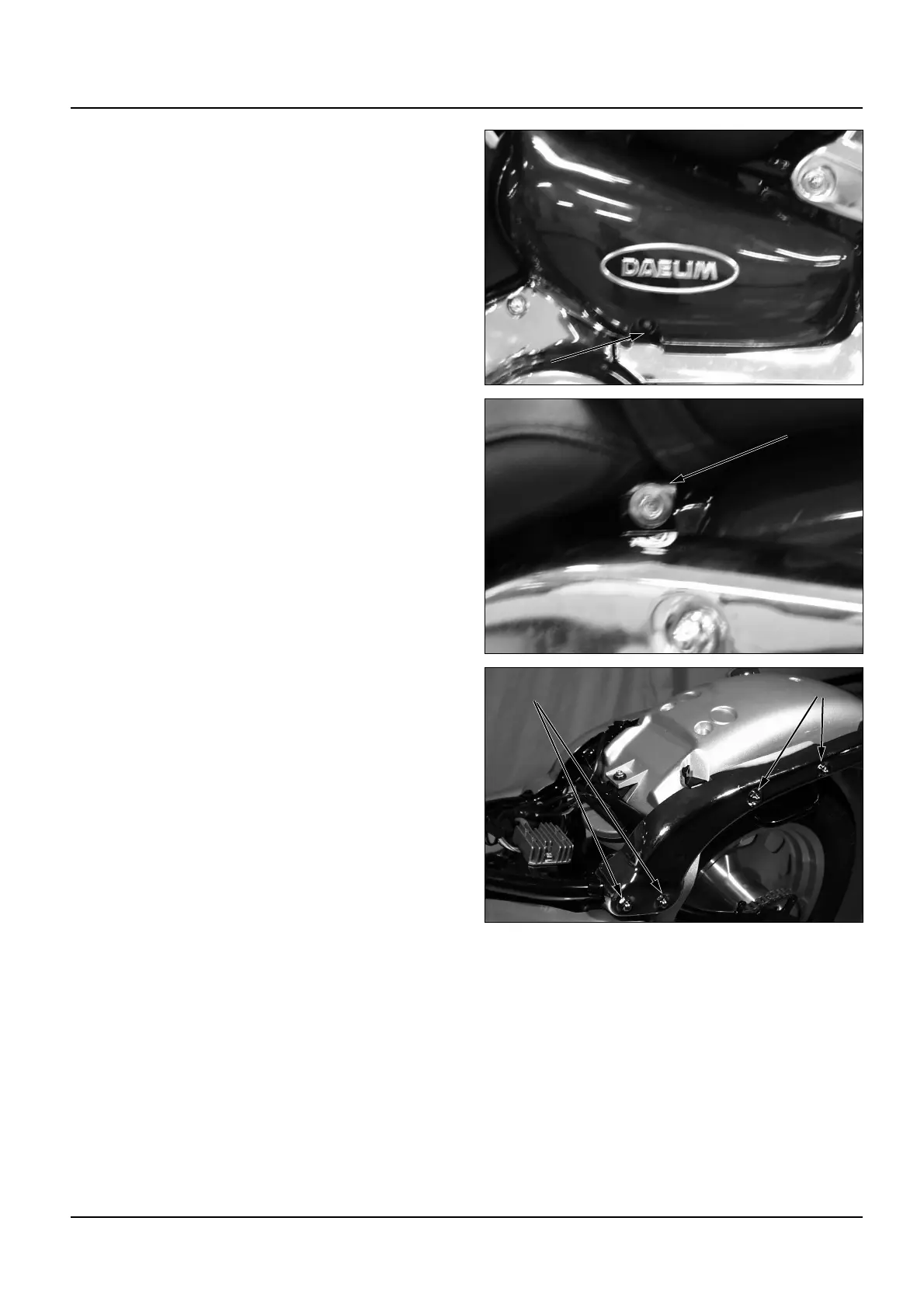

Side Cover/Seat
Side Cover Removal
● Remove the R.side cover. (Removing with a
lock key)
● Loosen the screw with a “+” driver
● Separate the side cover hook from grommet of
frame.
(When removing, remove the side cover with
pushing toward the down.)
Seat Removal
● Remove 3 flange bolts (1 left, 1 right, 1 rear)
and remove the seat by pulling the seat toward
the back.)
Assembly
● Assembly is done the reverse order of
disassembly.
Grab Rail
Removal
● After removing the seat remove the rear
winker and tail light code.
● Remove the left, right cap nut/bolts (each 4EA)
of the grab rail. (After removing, push the stay
pinch bolt to the inside.)
Assembly
● Assembly is done in the reverse order of
disassembly.
Screw
Screw
Screw
Screw
Screw
ScrewScrew
Screw
Screw
Screw
Screw
Screw
Screw
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange BoltFlange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap NutCap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Bolt
Cap Bolt
Cap Bolt
Cap Bolt
Cap Bolt
Cap BoltCap Bolt
Cap Bolt
Cap Bolt
Cap Bolt
Cap Bolt
Cap Bolt
Cap Bolt
