10-12

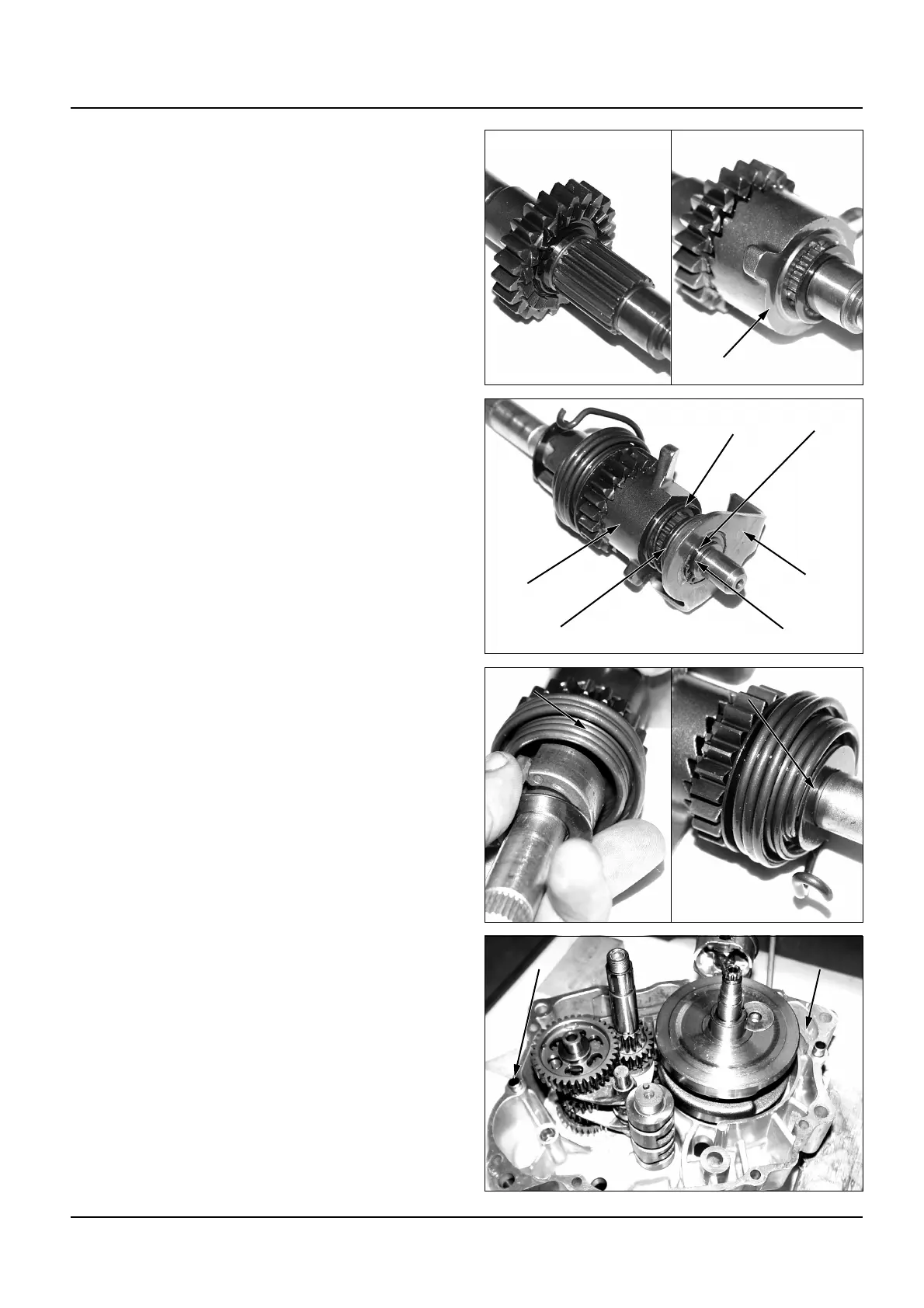

Crank Case / Transmission / Crankshaft / Kick Starter

Installation

 Coat the pinion gear with clean engine oil.

Install the gear into the 20mm thrust washer

and tighten them with the snap ring.

 Install the kick starter ratchet into the spindle,

aligning the punch mark.

Crankcase Assembly

 Install the dowel pins and a new gasket.

 Install the spring retainer and kick starter

spring and insert the end of the spring pin into

the spindle hole.

 Align the spindle collar end gap with the end

of the spring.

 Install the 16mm thrust washer.

 Install the ratchet spring into the ratchet guide

plate as shown and tighten them with the snap

ring.

 Install the 12mm thrust washer.

Ratchet

RatchetRatchet

Ratchet

Spring

SpringSpring

Spring

16mm Thrust Washer

16mm Thrust Washer16mm Thrust Washer

16mm Thrust Washer

Dowel Pins

Dowel PinsDowel Pins

Dowel Pins

Gasket

GasketGasket

Gasket

Spring

SpringSpring

Spring

Snap Ring

Snap RingSnap Ring

Snap Ring

Guide Plate

Guide PlateGuide Plate

Guide Plate

Ratchet

RatchetRatchet

Ratchet

16mm Thrust Washer

16mm Thrust Washer16mm Thrust Washer

16mm Thrust Washer

12mm Thrust Washer

12mm Thrust Washer12mm Thrust Washer

12mm Thrust Washer
