DAELIM DAYSTAR Service Manual

10-13
Crank Case / Transmission / Crankshaft / Kick Starter

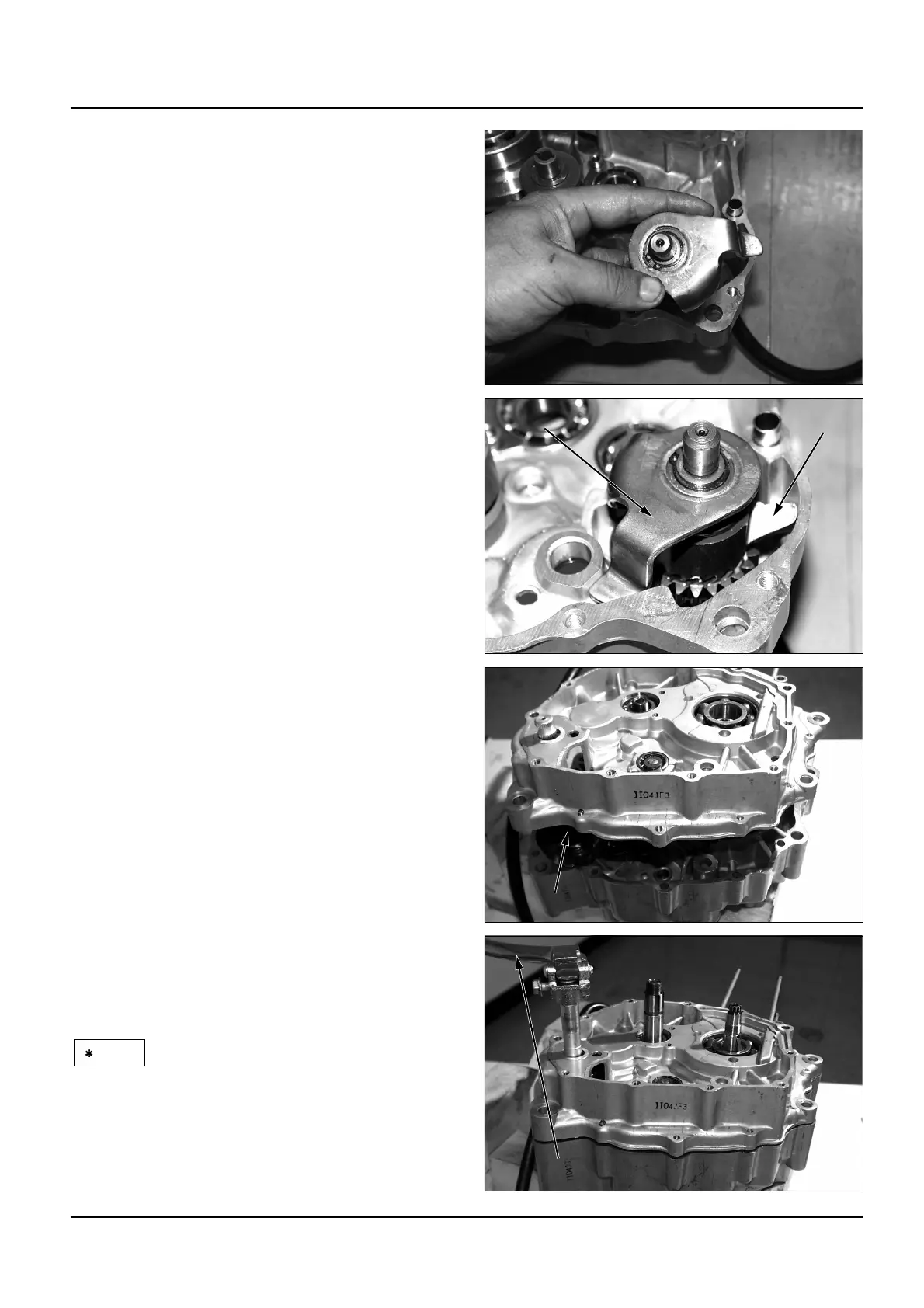

 Install the kick starter into the right crankcase,
hanger the end of the kick starter spring on the
case hole.
 After installation of the kick starter pedal
temporarily, turn the kick starter to the right
slowly to align the end of the spindle with the
left crankcase assembling hole thoroughly.
 Make sure that there is no gap between the
mating surfaces of the right and left crankcase.
 Be careful to prevent 12mm kick starter thrust
washer from falling. Install the right crankcase
into the left crankcase while pressing the kick
starter to prevent the ratchet and guide plate
from falling.
 Turn the ratchet and ratchet guide plate to the
right and place them as shown.
NOTE
Guide Plate
Guide Plate
Guide Plate
Guide Plate
Guide Plate
Guide PlateGuide Plate
Guide Plate
Guide Plate
Guide Plate
Guide Plate
Guide Plate
Guide Plate
Retchet
Retchet
Retchet
Retchet
Retchet
RetchetRetchet
Retchet
Retchet
Retchet
Retchet
Retchet
Retchet
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
12mm Thrust Washer
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter PedalKick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
