DAELIM DAYSTAR Service Manual

10-14
Crank Case / Transmission / Crankshaft / Kick Starter

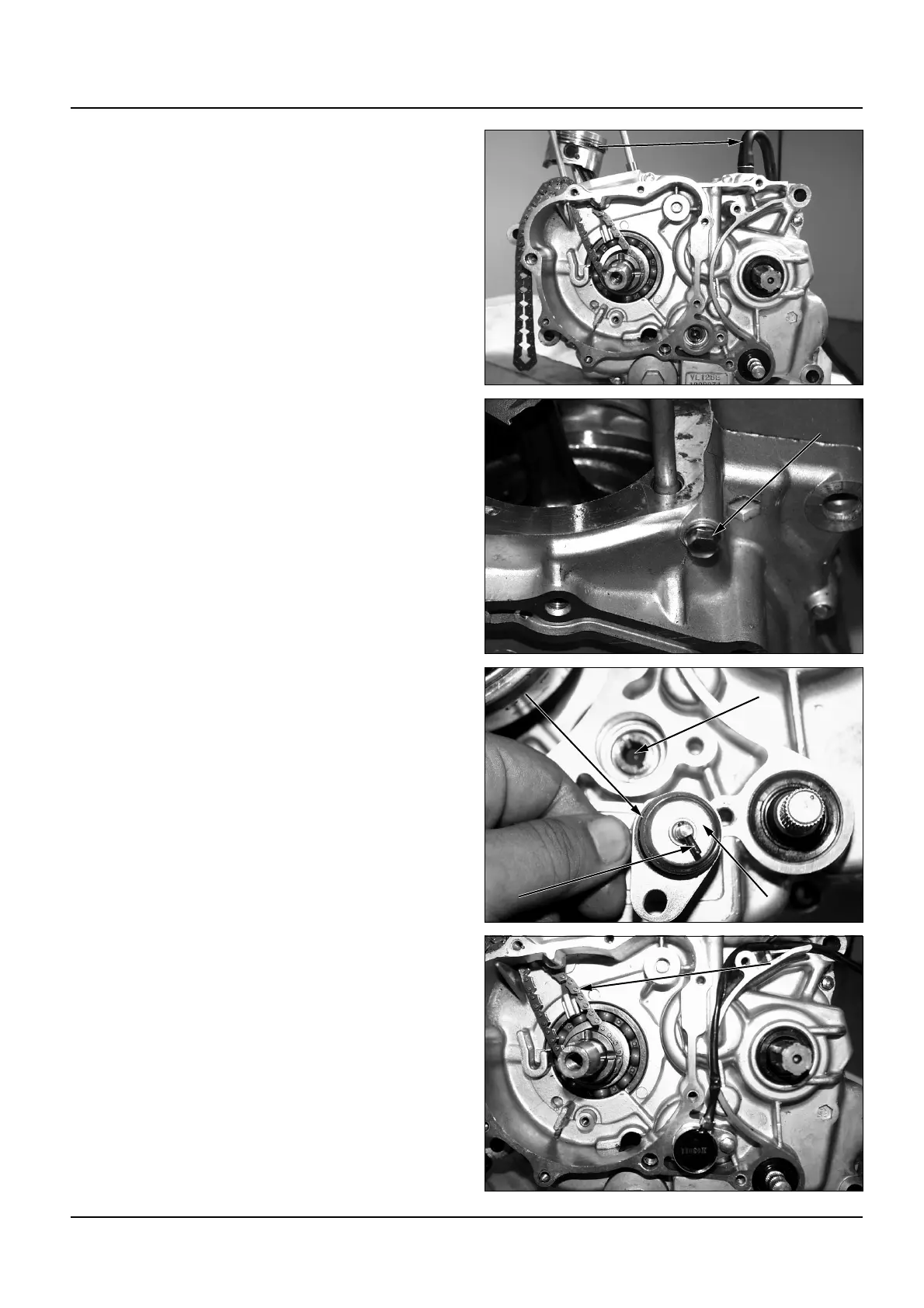

 Tighten the left crankcase bolt ina crisscross
pattern in 2-3 steps.
Torque: 1.1kgf-m(11N.m)
 Install the cam chain and set plate.
 Install the disassembled parts.
 Install the engine on the frame. (Section 5)
 After replacing the o-ring of the gear change
switch to a new one, coat the new o-ring with
engine oil, then install the switch pin into the
groove of the shift drum.
 Tighten the right crankcase bolt.
Torque: 1.1kgf-m(11N.m)
