DAELIM DAYSTAR Service Manual

8-13
Cylinder Head / Valve

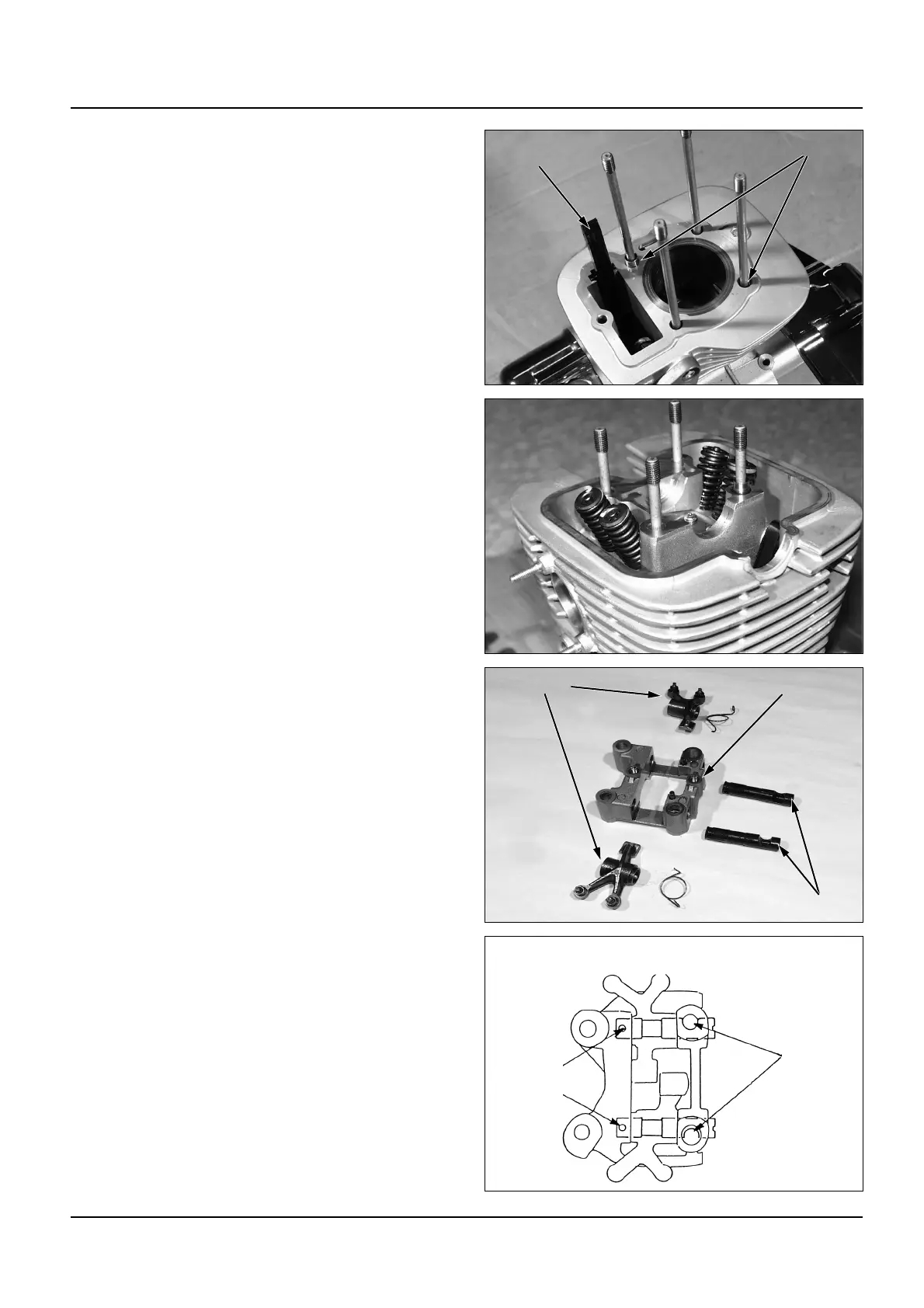

Cylinder Head Installation
 Clean the cylinder head surface of any gasket
materials.
 Install the cam chain guide into the cylinder.
 Install the dowel pins and a new gasket.
 Install the cylinder head.
 Install the cam shaft.
 Install the engine into the frame( 5)
Camshaft Installation
 Install the rocker arm ring and rocker arm on
the camshaft holder.
 Coat the rocker arm shaft with engine oil and
installl it into the camshaft holder.
 Rotate the rocker arm shaft with a driver, align
the dowel pin hole and bolt hole of the cam
shaft holder and rocker arm shaft.
Cam Chain Guede
Cam Chain Guede
Cam Chain Guede
Cam Chain Guede
Cam Chain Guede
Cam Chain GuedeCam Chain Guede
Cam Chain Guede
Cam Chain Guede
Cam Chain Guede
Cam Chain Guede
Cam Chain Guede
Cam Chain Guede
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel PinDowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Rock Arms
Rock Arms
Rock Arms
Rock Arms
Rock Arms
Rock ArmsRock Arms
Rock Arms
Rock Arms
Rock Arms
Rock Arms
Rock Arms
Rock Arms
Shaft
Shaft
Shaft
Shaft
Shaft
ShaftShaft
Shaft
Shaft
Shaft
Shaft
Shaft
Shaft
Bolt
Holes
Dowel Pin
Holes
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft HolderCam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder
Cam Shaft Holder

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
