DAELIM DAYSTAR Service Manual

3-7
Maintenance

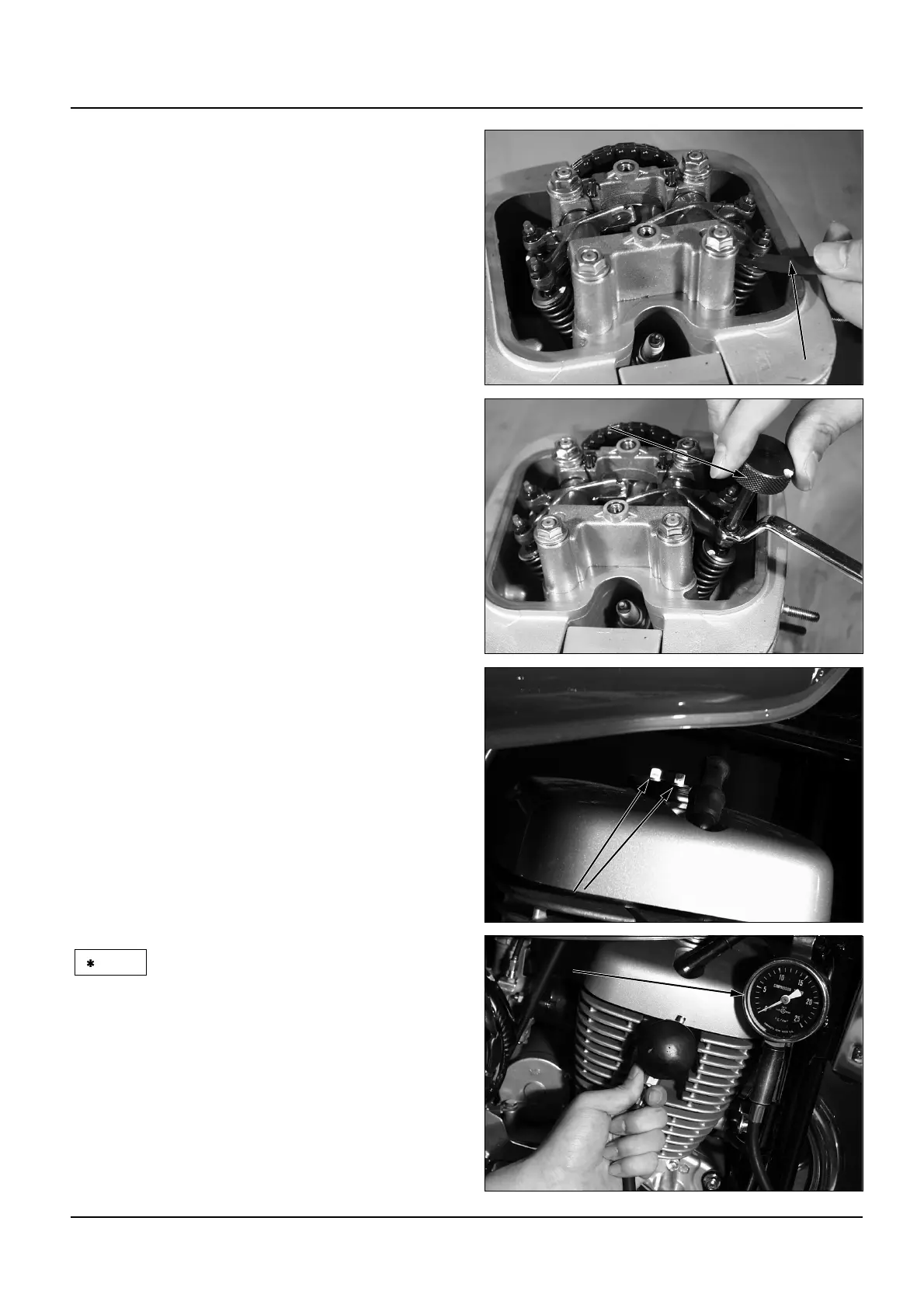

 Measure the valve clearance with filler gauge.
Valve Clearance:
Intake: 0.120.02mm(0.050.001in)
Exhaust: 0.120.02mm(0.050.001in)
 Loosen the lock nut with a valve wrench, and
adjust the adjuster screw to the standard
clearance using a valve adjusting wrench.
When the standard clearance is done, hold the
adjuster screw with a valve adjusting wrench.
And then tighten the lock nut.
Torque : 1.1kgf-m(11N.m)
Tools : Wrench 89mm
Adjusting wrench
 Measure the valve clearance again.
 After connecting the cylinder head cover,
tighten the bolt.
Torque : 1.0kgf-m(10N.m)
 Install the timing hole cap and crank case hole
cap.
Timing Hole Cap : 0.6kgf-m(6N.m)
Crank Case Hole Cap : 0.8kgf-m(8N.m)
Cylinder Compression Pressure
 Warm up the engine to normal operating
temperature.
 Stop the engine, disconnect the spark plug
caps and spark plug. Install the compression
gauge.
 Open the throttle all the way and crank the
engine with the starter motor until the gauge
reading stops rising.
Tool: Compression gauge
 The maximum reading is usually reached
within 4~7 seconds.
Compression Pressure : 14.0f/(550rpm)
If compression is low, check the following:
 Incorrect valve clearance adjustment
 Valve for leakage
 Exposed cylinder head from the gasket
 Worn piston/cylinder
If compression is high, check the following:
 Carbon deposits on the piston head, cylinder
head
Filler Gauge
Filler Gauge
Filler Gauge
Filler Gauge
Filler Gauge
Filler GaugeFiller Gauge
Filler Gauge
Filler Gauge
Filler Gauge
Filler Gauge
Filler Gauge
Filler Gauge
Adjusting Wrench
Adjusting Wrench
Adjusting Wrench
Adjusting Wrench
Adjusting Wrench
Adjusting WrenchAdjusting Wrench
Adjusting Wrench
Adjusting Wrench
Adjusting Wrench
Adjusting Wrench
Adjusting Wrench
Adjusting Wrench
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover BoltCylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Cylinder Head Cover Bolt
Compression Gauge
Compression Gauge
Compression Gauge
Compression Gauge
Compression Gauge
Compression GaugeCompression Gauge
Compression Gauge
Compression Gauge
Compression Gauge
Compression Gauge
Compression Gauge
Compression Gauge
NOTE

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
