DAELIM DAYSTAR Service Manual

8-3
Cylinder Head / Valve

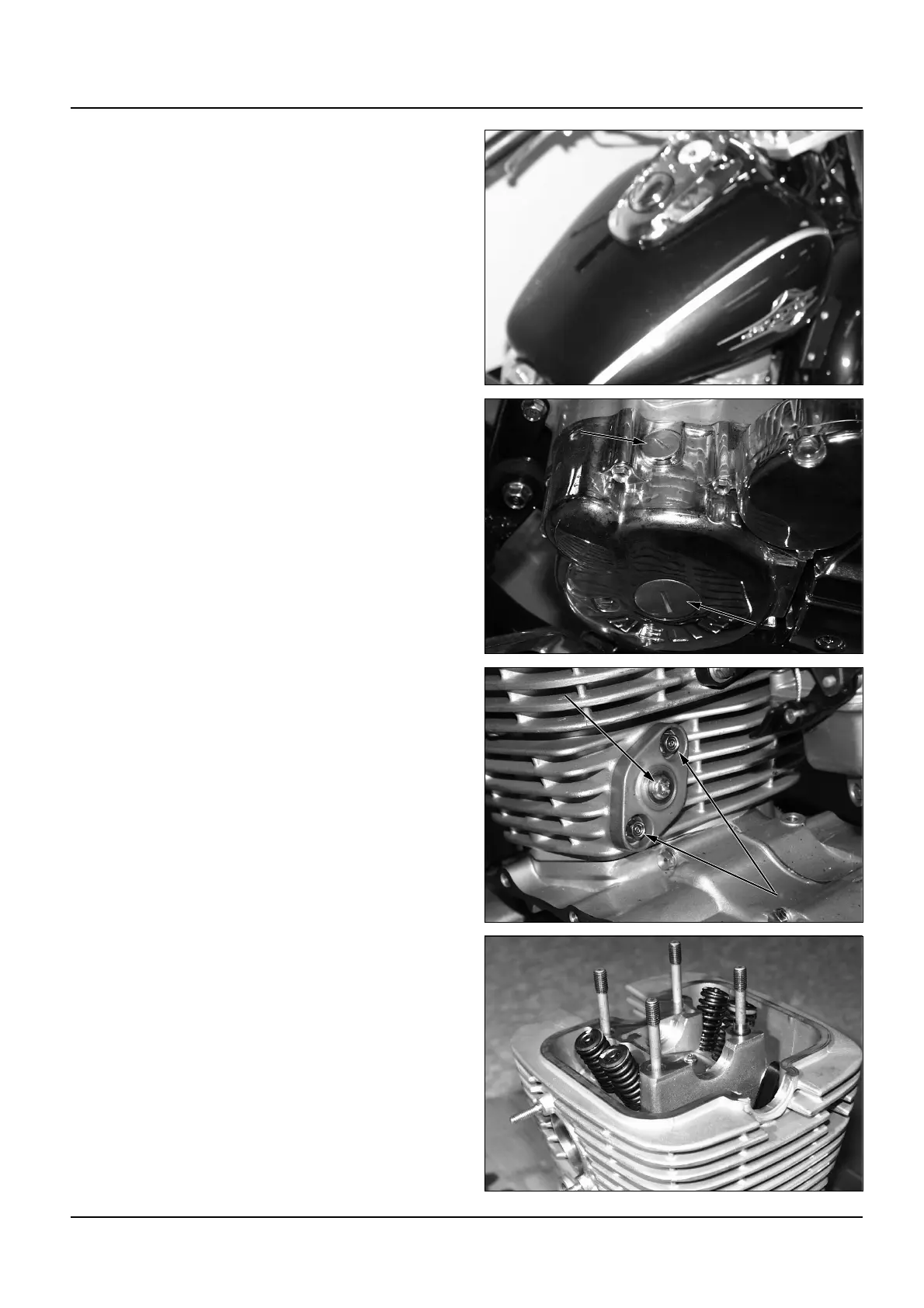

Camshaft Removal
 Remove the fuel tank( 4-3)
 Remove the cylinder head cover bolts and
cover.
 Remove the timing hole cap and crank shaft
hole cap out of the left crankcase cover.
 Rotate the crankshaft clockwise, place the
flywheel Tmark on the left crankcase cover
index mark.
 Make surethat the piston is placed on the
compression groove. (All the cam lobes of the
camshaft should face down.)
 Rotate the crankshaft clockwise on turn(360)
and place the Tmark on the index mark.
 Loosen the sealing screw of the cam chain
tensioner. Remove the tensioner mounting bolt
and tensioner.
 Remove the camshaft holder 8mm nuts.
 Remove the camshaft holder from the cylinder.
Timing Hole Cap
Timing Hole Cap
Timing Hole Cap
Timing Hole Cap
Timing Hole Cap
Timing Hole CapTiming Hole Cap
Timing Hole Cap
Timing Hole Cap
Timing Hole Cap
Timing Hole Cap
Timing Hole Cap
Timing Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole CapCrank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Crank Shaft Hole Cap
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing ScrewSealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting BoltTensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt
Tensioner Mounting Bolt

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
