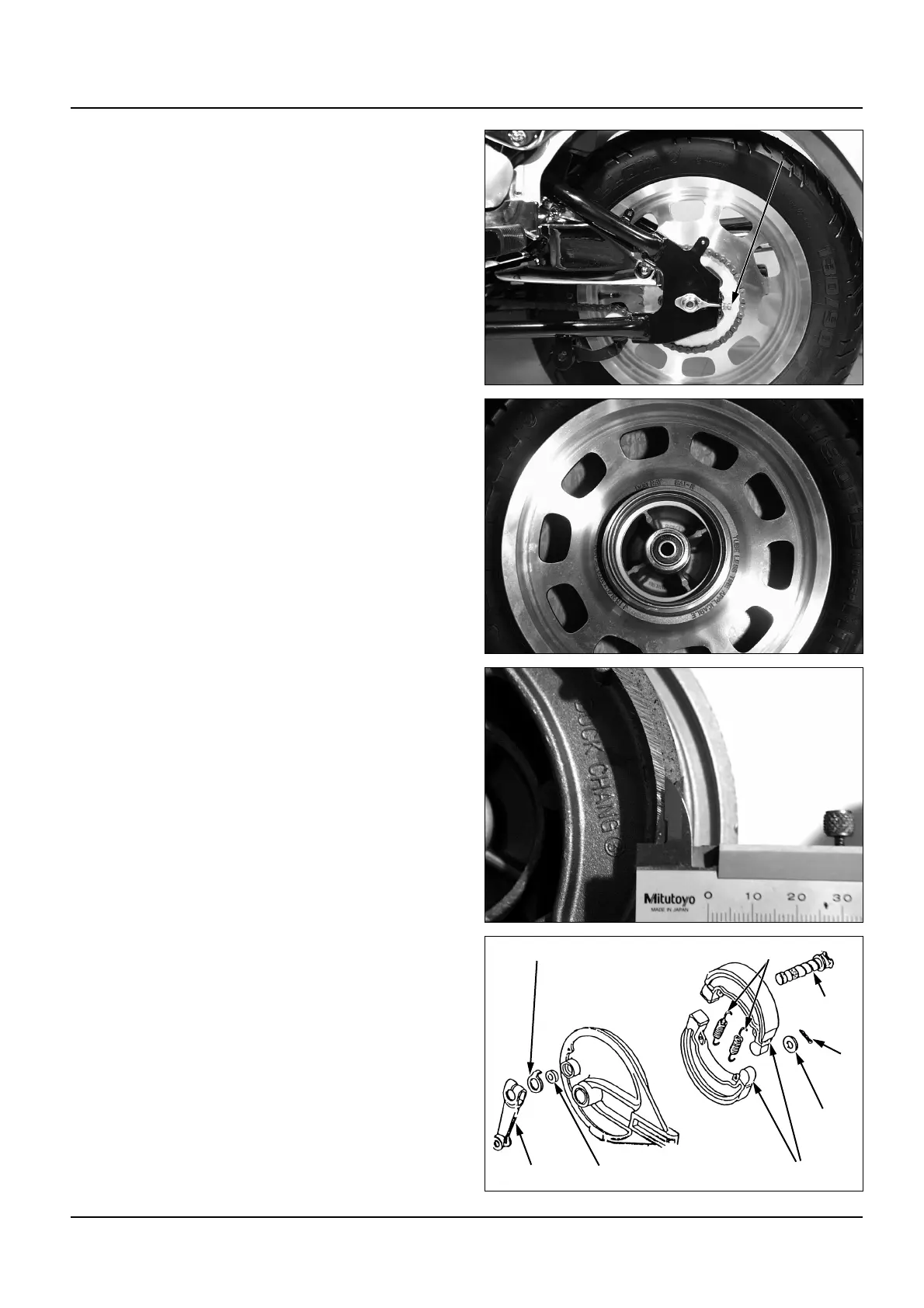

DAELIM DAYSTAR Service Manual

14-6
Rear Wheel/Rear Brake/Suspension
● Install the chain adjuster, insert the axle shaft
from the left side.
● Install the chain case B.
● Install the brake rod, brake adjusting nut.
Check the drive chain operation.
● Install the lock washer and axle nut.
Torque: 8.8kgf-m
● Adjust the brake pedal operation. (⇨3-11)
Rear Brake
Removal
● Remove the rear wheel. (⇨14-3)
● Remove the brake panel from the rear wheel.
Inspection
● Measure the brake drum I.D.
Service Limit: 131mm (5.16in)
● Measure the rear brake lining thickness.
Service Limit: 2.0mm (0.08in)
Disassembly
● Open the brake shoe with hands and remove it
from the brake panel. Separate the split pin
from the washer. Remove the shoe spring
from the brake shoe.
● Remove the brake arm, wear indicator, cam
dust seal.
● Remove the brake cam.
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust NutChain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Chain Adjust Nut
Cam Dust Seal
Brake Arm
Wear Indicator
Spring
Brake Shoe
Washer
Brake Cam
Pin

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
