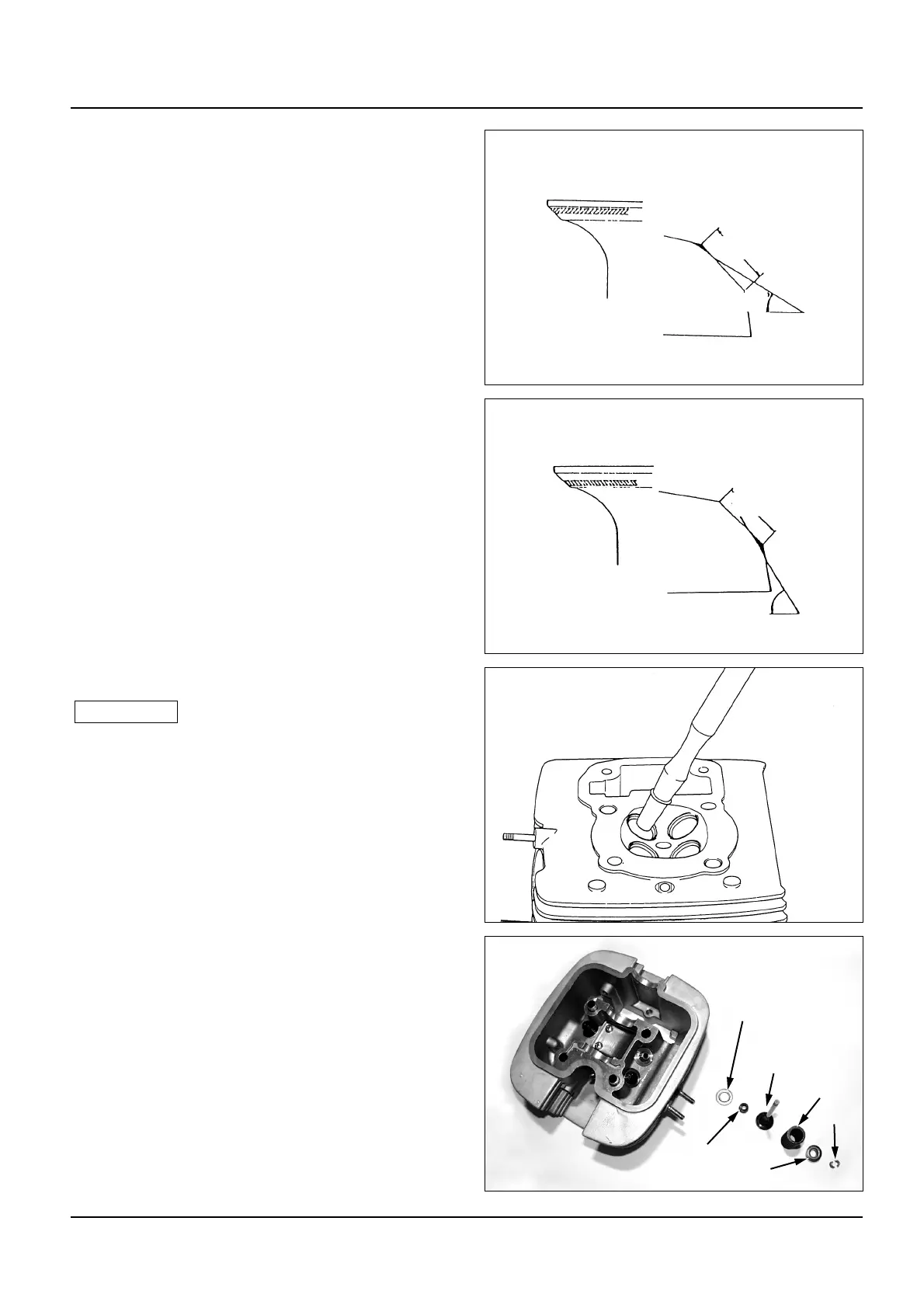

DAELIM DAYSTAR - Cylinder Head Assembly

8-11
Cylinder Head / Valve
 Coat the valve seat with the compound.
 Use the valve guide reamer without turning the
Valve, check the attached state by hitting
against lightly.
 If the position of contacting side is high, cut it
using a 35cutter, and then cut it using a 45
cutter according to the standard width.
 If the position of contacting side is low, cut it
using a 60cutter, and then cuts by 45cutter
according to the standard width.
 After amending, coat the valve seat with a
compound and align the valve using a valve
guide reamer.
 If it is turned by pressing the valve to seat
strongly when aligning the valve, it is damaged.
Therefore, align it by trimming lightly.
 If aligning the valve in same position, it is
caused that seat is worn partly. Therefore align
valve by turning.
 Avoid putting compound in the gap of step and
guide while aligning the Valve.
Cylinder Head Assembly
 Install the valve spring seat and a new stem
seal.
 Lubricate each valve stem with molybdenum
disulfide grease and insert the valve into the
valve guide. To avoid damage to the stem seal,
turn the valve slowly when inserting.
 Check the valve for freedom of up-down
movement.
