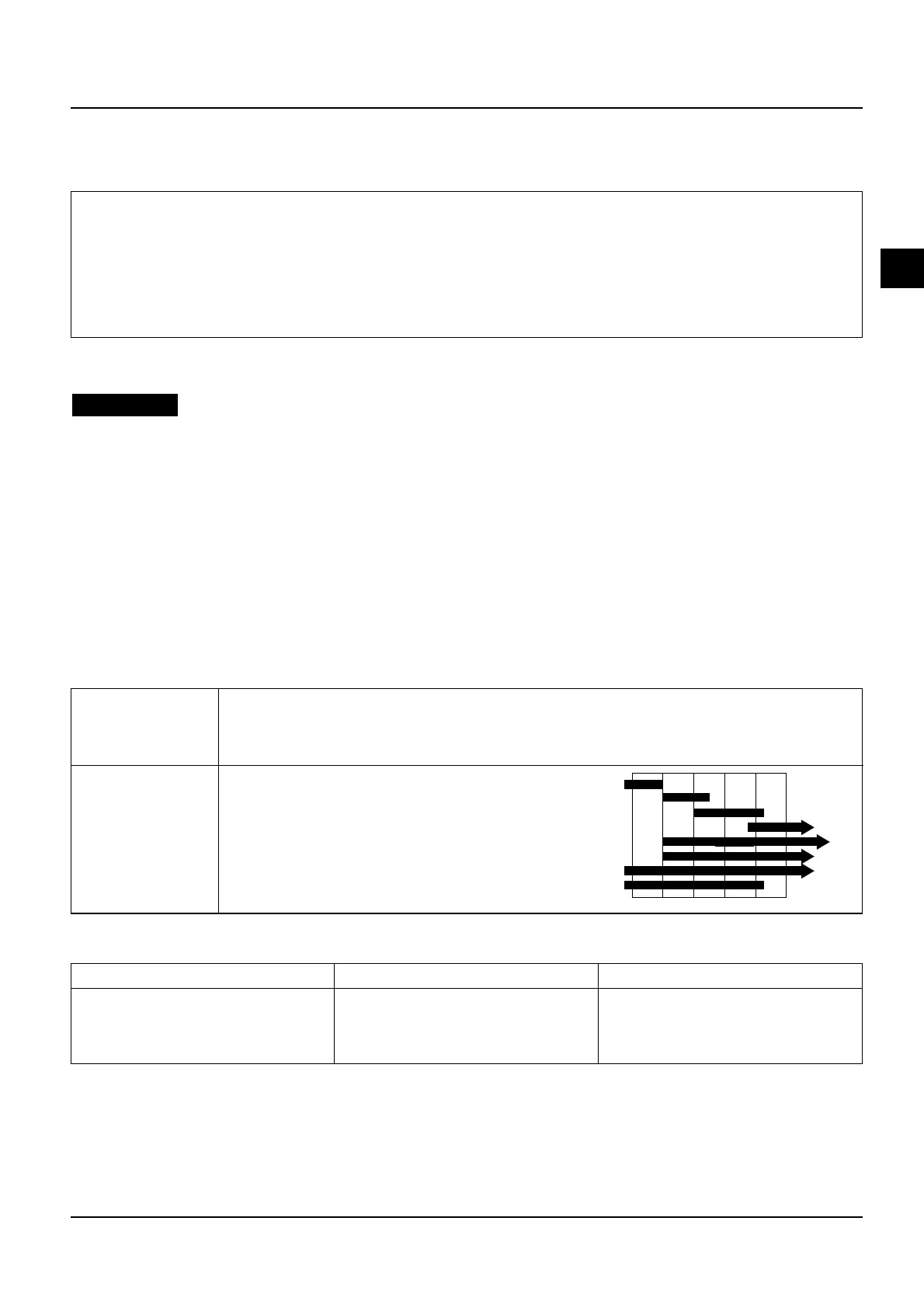

2-1
Lubrication
Service Information
If the engine must be running to do some work, make sure the area is well ventilated. Never run the
engine in an enclosed area. The exhaust contains poisonous carbon monoxide gas that may cause loss
of consciousness and lead to death. Run the engine in an open area or with an exhausted evacuation
system in an enclosed area.
Used engine oil may cause skin cancer if repeatedly left in contact with the skin for prolonged.
Although it is unlikely to happen unless you handle used oil on a daily basis, it is still advisable to
wash your hands thoroughly with soap and water as soon as possible after handling used oil.
The oil pump can be serviced with the engine installed in the frame.
2. Lubrication
Service Information …………………2-1
Specifications ………………………2-1
Troubleshooting ……………………2-2
Engine Oil Level Check ……………2-3
Engine Oil Change …………………2-3
Engine Oil Filter Element Change
…2-4
Oil Pump………………………………2-4
Lubrication Points …………………2-7
Engine oil
1.2
(all capacity)
Oil Capacity
1.15(after oil filter change)
1.1(after oil change)
API Service Classification:SE or SH
Oil
Viscosity:SAE10W-30
Recommendation
10W
20·20W
30
40
20W 50
20W 40
10W 40
10W - 30
10 0 10 20 30 40℃
Pump Body clearance 0.15~0.20(0.006~0.008) 0.25(0.010)
Rotor end clearance 0.15(0.006) 0.20(0.008)
Pump side clearance 0.05~0.09(0.002~0.004) 0.12(0.005)
Oil Filter Screen Cap 1.5kgf-m(15N.m)
Oil Filter Relief Valve Oval Screw 1.2kgf-m( 9N.m)
Oil Filter Cover Socket Bolt 1.1kgf-m(11N.m)
Oil Pump Mounting Bolt 1.1kgf-m(11N.m)
Item Standard Value Service Limit
Oil Pump
Torque Valves
Unit : mm(in)
2
!
WARNING
△
Specifications
(Other viscosities shown in the chart may be
used when the average temperature in your
riding area is within the indicated range.)
To Next Page
