DAELIM DAYSTAR Service Manual

14-3
Rear Wheel/Rear Brake/Suspension

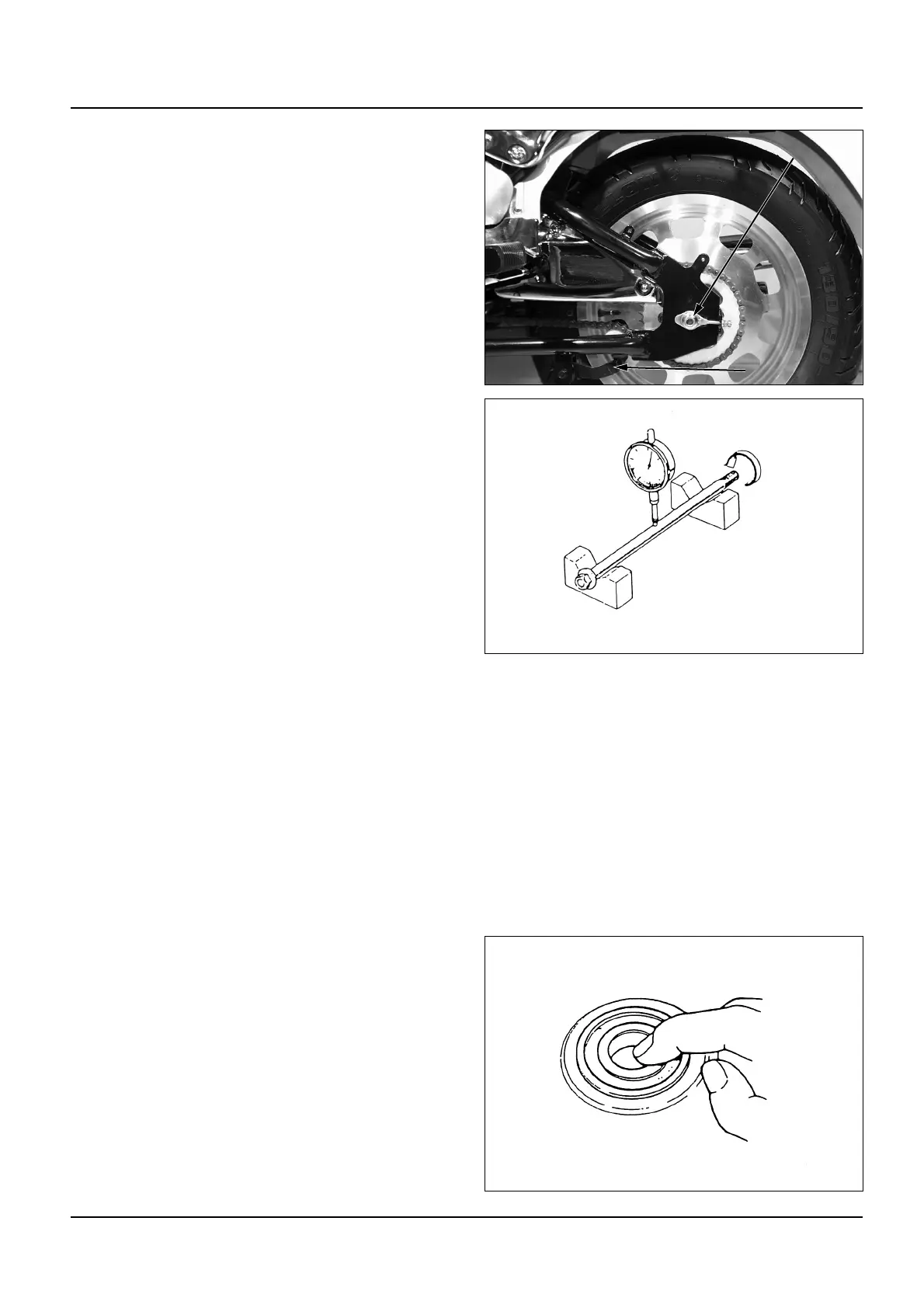

Rear Wheel
Removal
● Raise and support the motorcycle with main
stand.
● Loosen the rear brake adjuster, remove the
brake rod.
● Loosen the chain adjusting nut.
● Remove the axle nut, then disconnect the axle
shaft.
● Remove the drive chain by pressing the rear
wheel forward.
● Remove the rear wheel.
● Remove the brake pedal.
Inspection
● Inspect the winding of Axle Shaft.
Service Limit: 0.2mm
● Inspect by the oscillation of rim in turning the
wheel.
Service Limit: Radial: 2.0mm (0.008in)
Axial: 2.0mm (0.008in)
● Replace the worn bearing by turning the
bearing.
Chain Adjuster
Chain Adjuster
Chain Adjuster
Chain Adjuster
Chain Adjuster
Chain AdjusterChain Adjuster
Chain Adjuster
Chain Adjuster
Chain Adjuster
Chain Adjuster
Chain Adjuster
Chain Adjuster
Chain Tensioner
Chain Tensioner
Chain Tensioner
Chain Tensioner
Chain Tensioner
Chain TensionerChain Tensioner
Chain Tensioner
Chain Tensioner
Chain Tensioner
Chain Tensioner
Chain Tensioner
Chain Tensioner

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
