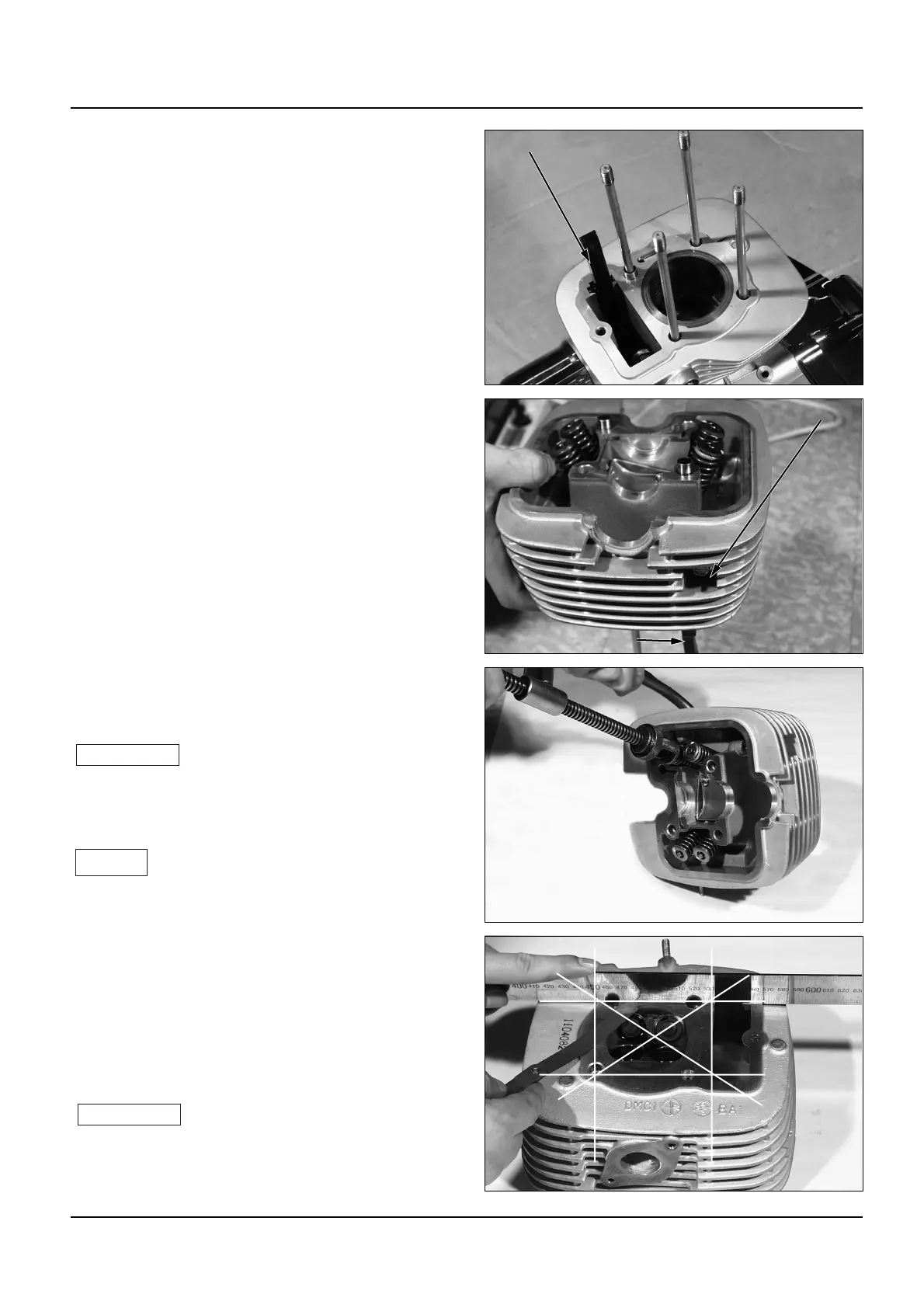

DAELIM DAYSTAR Service Manual

8-6
Cylinder Head / Valve
 Remove the valve spring, valve cotter, retainer,
spring, and valve.
Tool: Valve spring compressor
 To prevent the loss of tension, do not compress
the valve springs more than necessary to
remove the cotters.
 Mark all parts during disassembly so they can
be placed back in their original locations.
 Remove the valve stem seals and valve spring
seals, remove the carbon deposits from the
combustion chamber.
Cylinder Head
 Clean off the head gasket surface.
 Avoid damaging the gasket surfaces.
 Remove the gasket, dowel pins, and cam chain
guide from the cylinder.
Cylinder Head Disassembly
 Loosen the pivot bolt and remove the cam
chain tensioner.
 Remove the carburetor insulator.
 Remove the spark plug from the cylinder head.
 Remove the spark plug cover from the cylinder
head.

NOTE
!
CAUTION
△
!
CAUTION
△
Cam Chain Guide
Cam Chain Guide
Cam Chain Guide
Cam Chain Guide
Cam Chain Guide
Cam Chain GuideCam Chain Guide
Cam Chain Guide
Cam Chain Guide
Cam Chain Guide
Cam Chain Guide
Cam Chain Guide
Cam Chain Guide
Pivot Bolt
Pivot Bolt
Pivot Bolt
Pivot Bolt
Pivot Bolt
Pivot BoltPivot Bolt
Pivot Bolt
Pivot Bolt
Pivot Bolt
Pivot Bolt
Pivot Bolt
Pivot Bolt
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain TensionerCam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner
Cam Chain Tensioner

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
