DAELIM DAYSTAR Service Manual

12-3

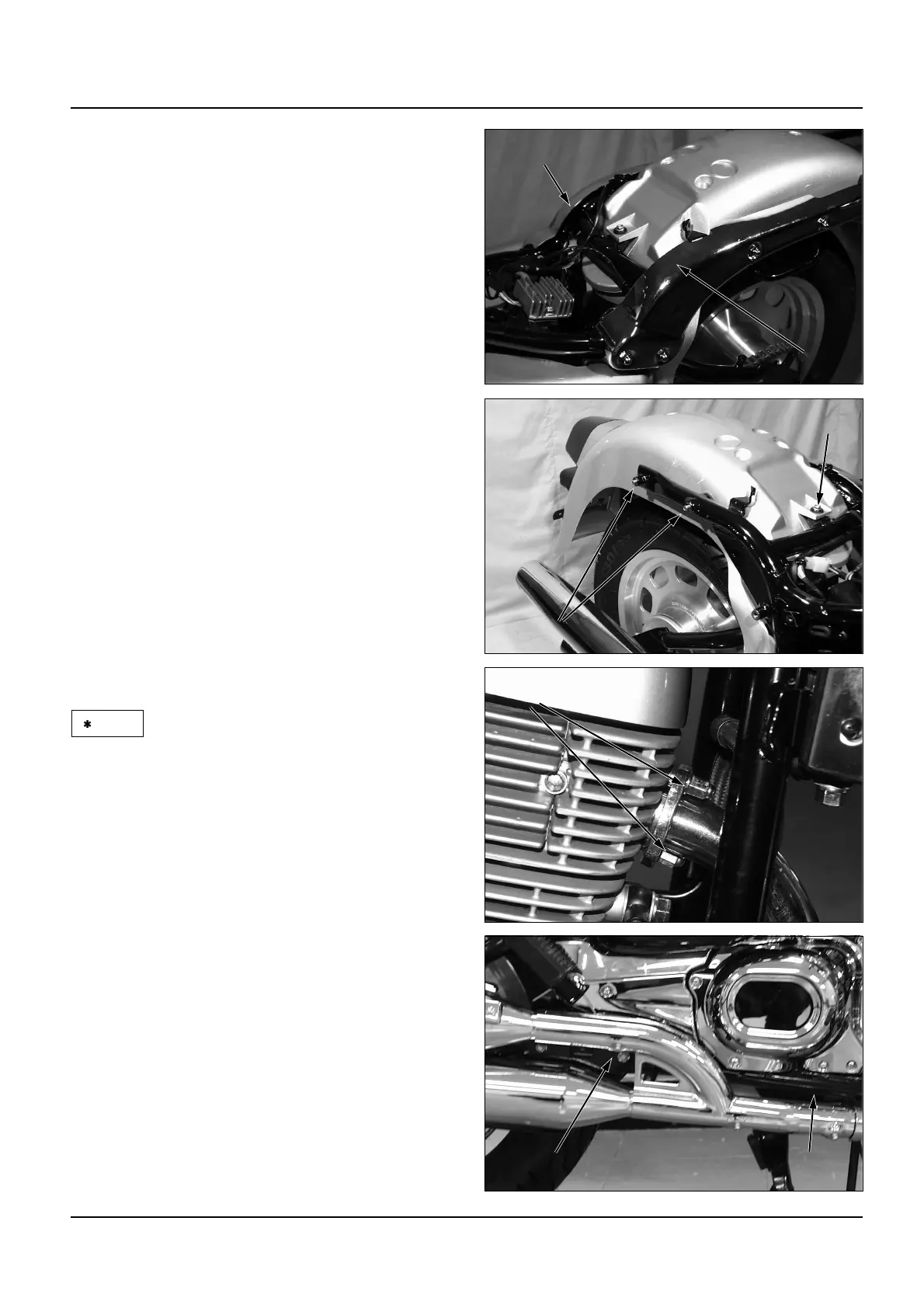

Seat/Exhaust Muffler
Rear Fender
Removal
● Separate the seat and remove the code
connection.
● Remove the grab rail.
(After removing, push the stay connecting bolt
toward the inside.)
● Remove the rear fender.
(Tail light is attached.)
● Loosen the inside screws of rear fender. After
removing the green connector of inside socket,
remove the tail light.
● Assembly is done in the reverse order of
disassembly.
Muffler
• Do not service the exhaust system when it is
not.
Removal
● Loosen the 2 muffler pipe cap nut.
● Loosen the flange bolt from muffler pipe
comp.
● Remove the 2 flange nut from upper muffler
stay.
● Assembly is done in reverse of disassembly.
NOTE
R. Grab Rail
R. Grab Rail
R. Grab Rail
R. Grab Rail
R. Grab Rail
R. Grab RailR. Grab Rail
R. Grab Rail
R. Grab Rail
R. Grab Rail
R. Grab Rail
R. Grab Rail
R. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab RailL. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab Rail
L. Grab Rail
Bolt
Bolt
Bolt
Bolt
Bolt
BoltBolt
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support BoltFender Support Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support Bolt
Fender Support Bolt
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap NutCap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Cap Nut
Flange Nut
Flange Nut
Flange Nut
Flange Nut
Flange Nut
Flange NutFlange Nut
Flange Nut
Flange Nut
Flange Nut
Flange Nut
Flange Nut
Flange Nut
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange BoltFlange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
