DAELIM DAYSTAR Service Manual

19-9
Lights/Switches/Horn

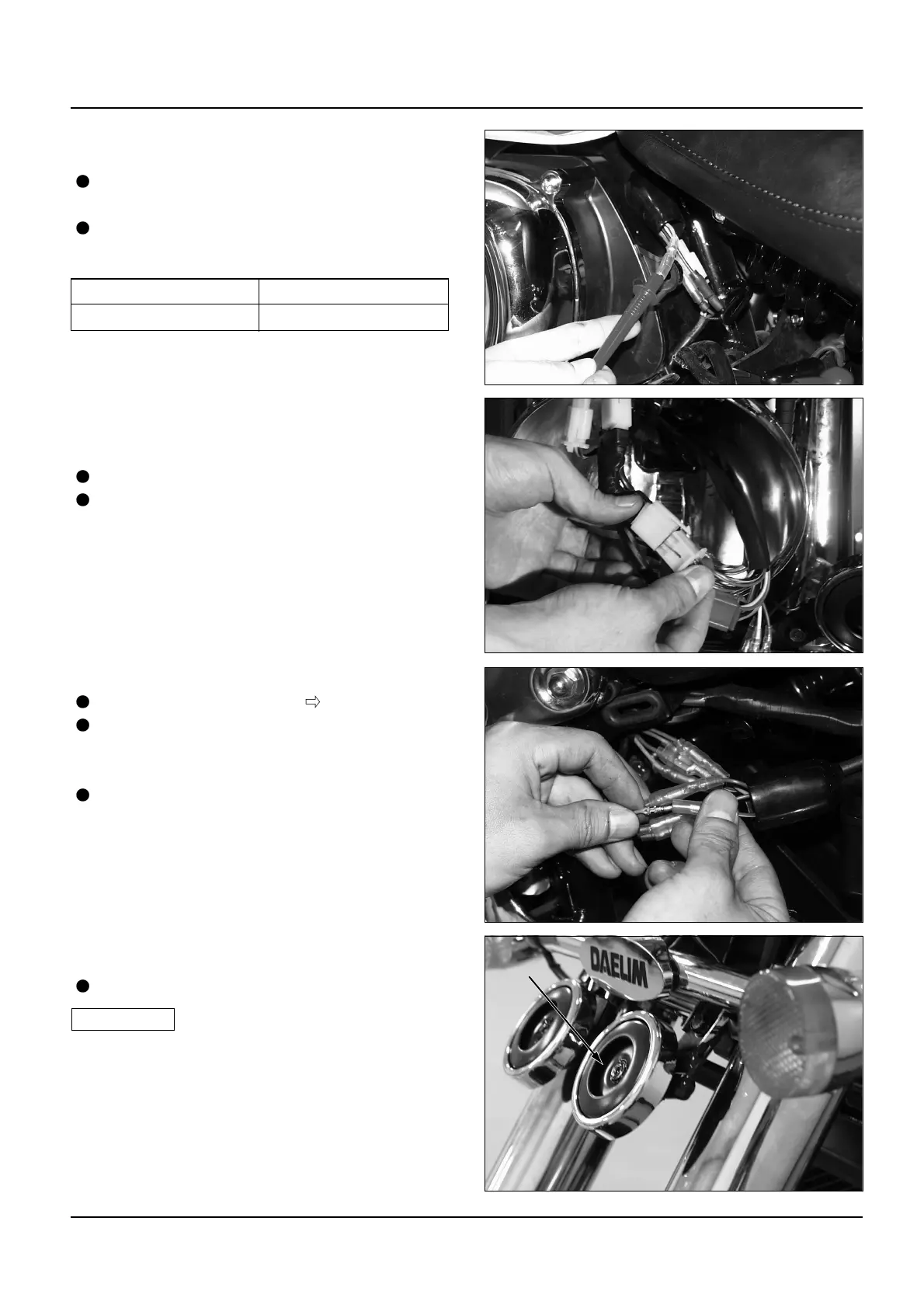

Gear Chain Switch
Disconnect the gear change switch wire
coupler.
Check for the continuity between the terminal
and engine ground.
Brake Light Switch
Front
Remove the headlight case.
Disconnect the front brake light switch wire
connectors and check for continuity between
the connector terminals. The switch should
have continuity with the front brake applied
and no continuity with it released.
Rear
Remove the R. side cover. ( 12-2)
Disconnect the rear brake light switch wire
coupler and check for continuity between
terminals.
The switch should have continuity with the
rear brake applied and no continuity with it the
rear brake applied and no continuity with it
released.
Horn
Remove the wire connector from the horn.
• The horn is consisted of the high horn and the
low horn. Install the high horn on the left side
and the low horn on the right side in case of
replacement.
Gear Position Terminal
Neutral Light green/Red
!
CAUTION
△
Horn
Horn
Horn
Horn
Horn
HornHorn
Horn
Horn
Horn
Horn
Horn
Horn
