DAELIM DAYSTAR Service Manual

17-6
Ignition System

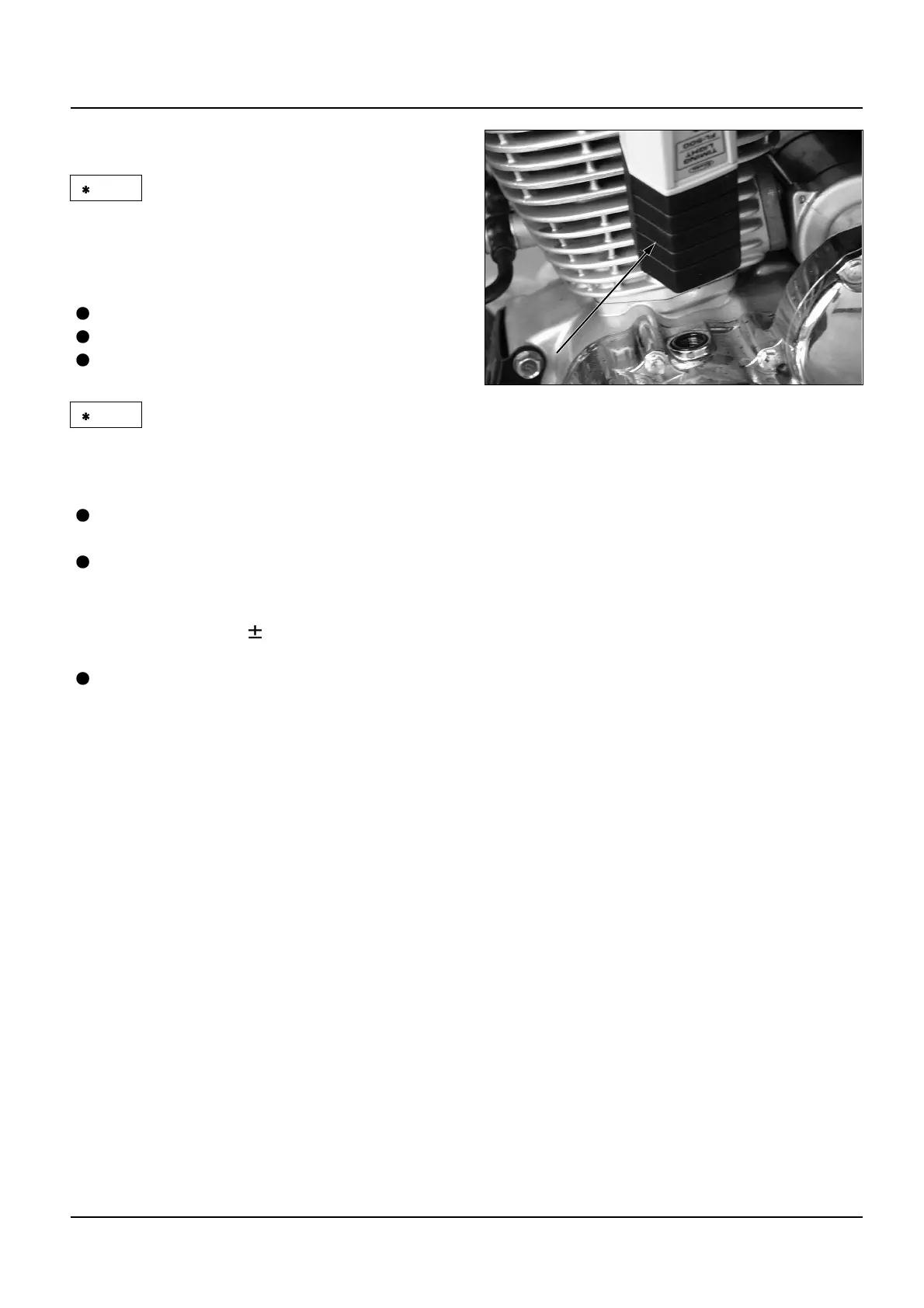

Ignition Timing Inspection
• A CDI ignition system is used and it can not be
adjusted. Inspect the ignition system if
ignition timing is incorrect.
Start the engine and warm it up.
Remove the timing hole cap.
Install the timing light into the high tension
code.
• Handle the timing light properly according to
the service information.
Remove the timing hole cap from the left
crank case cover and start the engine.
Align the “F”mark on the rotor with the index
mark on the case cover when specified idle
rotates.
Idle Speed: 1,400 100(rpm)
Gradually increase the engine speed. If the
index mark is placed on the preceded “F” mark
inside at over 3,900(rpm), the function of the
advance system is correct.
NOTE
NOTE
Timing Light
Timing Light
Timing Light
Timing Light
Timing Light
Timing LightTiming Light
Timing Light
Timing Light
Timing Light
Timing Light
Timing Light
Timing Light

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
