DAELIM DAYSTAR Service Manual

15-7
Hydraulic Brake
Brake Caliper

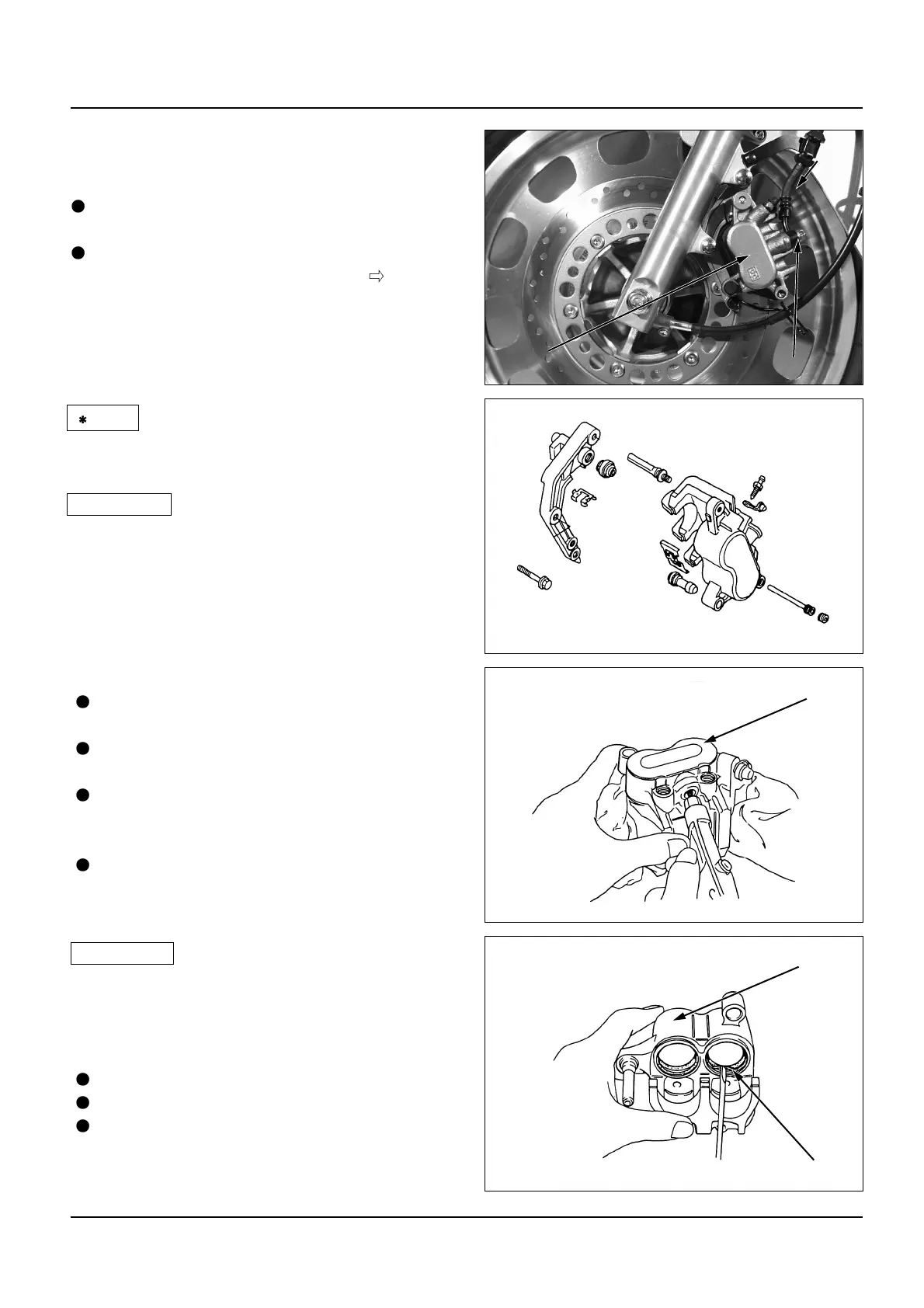

Removal
Remove the brake hose bolt and brake hose
from the brake caliper.
Remove the caliper from the front fork, then
remove the pad pin bolt, brake pad. ( 14-4)
• Avoid spilling brake fluid on painted, plastic,
or rubber parts.
• A contaminated brake disk or pad reduces
stopping power. Discard contaminated pads
and clean the disk with a high quality brake
degreasing agent.
Disassembly
Remove the slide pin, caliper bracket, and boot
from caliper.
Must be replaced if the boot is damaged or
worn.
Cover the caliper with cloth in order to avoid
the Piston and brake fluid from leakage, and
the piston face down.
Blow the low pressure air slowly in the
assembly part of brake hose, and remove the
piston from caliper.
• Do not use the high pressure air, or do not
close the air conditioner.
• Do not put the hand into the caliper inside.
Remove the piston seal and dust seal.
Prevent the caliper inside from damaging.
Clean the caliper inside and piston with brake
fluid.
NOTE
!
CAUTION
△
