DAELIM DAYSTAR Service Manual

15-8
Hydraulic Brake

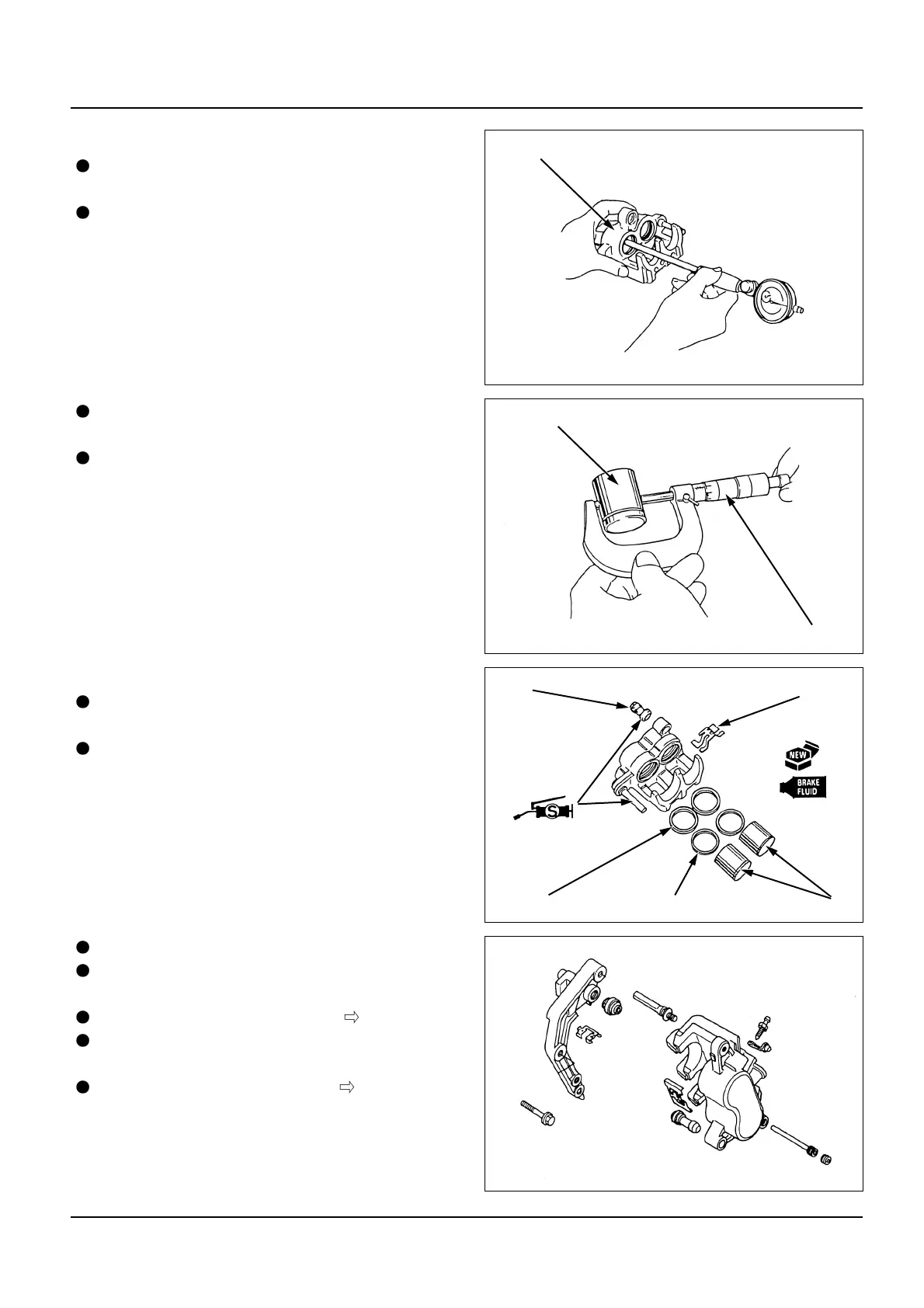

Inspection
Inspect the caliper friction surface for
damaging or crack.
Measure the caliper inside diameter.
Service Limit: 34.02mm (1.339in)
Inspect the piston outside for damaging or
crack.
Measure the piston outside diameter.
Service Limit: 33.87mm (1.333in)
Assembly
Clean the piston seal, dust seal with brake
fluid, and install of caliper into the  part.
Install the piston into the caliper by the groove
side of piston faces the pad.
Coat the boot with the silicon grease.
Install the boot into the  part of caliper
exactly.
Install the pad spring to caliper. ( 15-5)
Install the caliper pin bolt, and install the
caliper bracket to caliper.
Install the brake pad to caliper. ( 15-5)
Caliper
Caliper Piston
Micro Meter
Pad Spring
Bush
PistonSeal
Dust Seal
Piston

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
