DAELIM DAYSTAR Service Manual

14-4
Rear Wheel/Rear Brake/Suspension

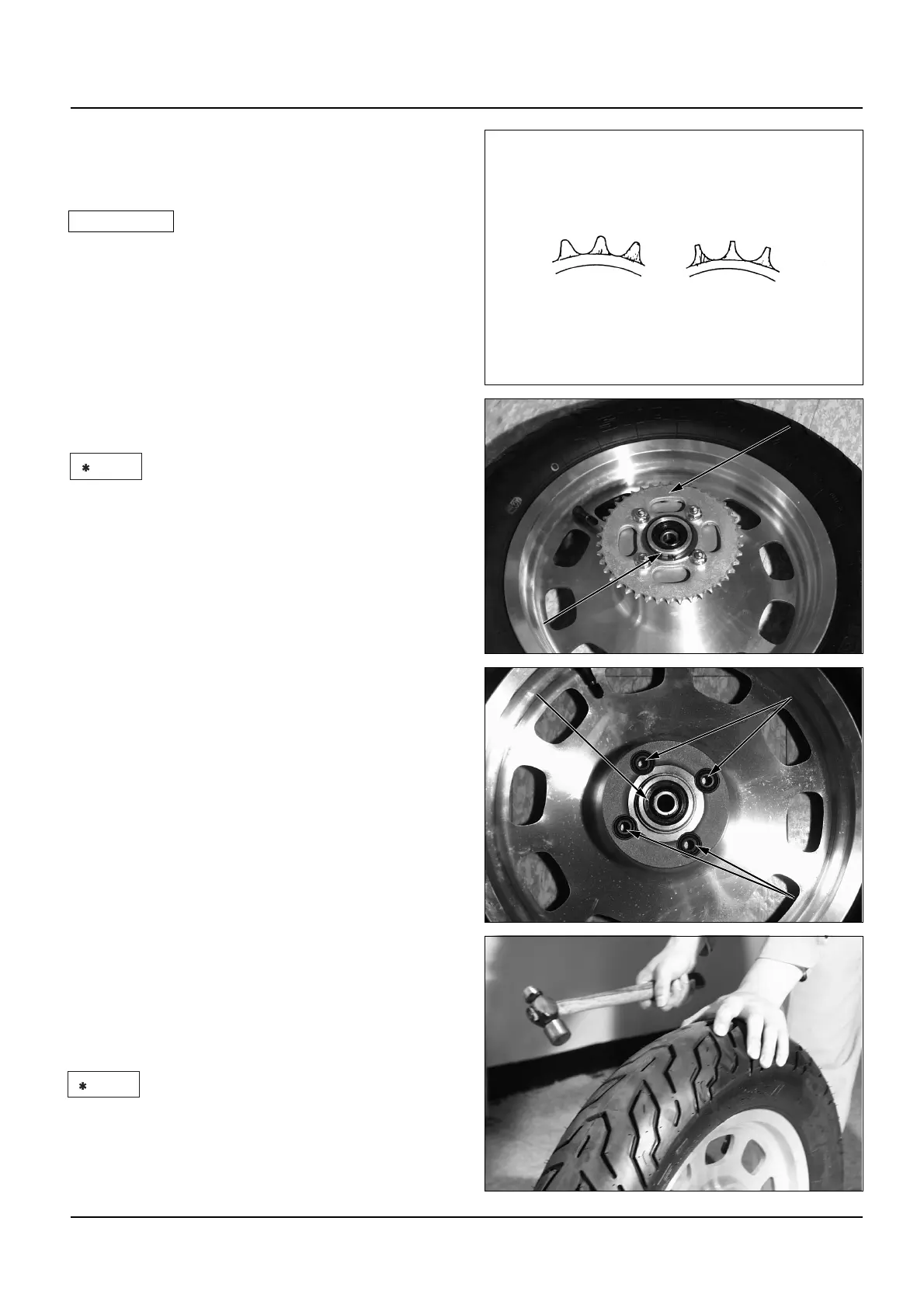

● Check the teeth of the final driven sprocket.
● Replace the worn, damaged final driven
sprocket.
• Check the drive chain and drive sprocket at the
same time.
● Check the damper rubber. Replace the faulty,
damaged, worn damper rubber.
● Remove the dust seal if it is damaged.
Disassembly
● Remove the snap ring and final driven sprocket.
• Do not disassemble unless replacement.
Bearing Replacement
● Install the bearing remover into the bearing.
● Install the bearing remover shaft at th opposite
position, and remove the wheel bearing by
heating with a hammer.
● After removing the distance collar, remove the
other bearing.
• When taking off the wheel bearding, must be
replaced with the new one.
Tools:
Bearing remover shaft
Remover head
양호
불량
NOTE
NOTE
Driven Sprocket
Driven Sprocket
Driven Sprocket
Driven Sprocket
Driven Sprocket
Driven SprocketDriven Sprocket
Driven Sprocket
Driven Sprocket
Driven Sprocket
Driven Sprocket
Driven Sprocket
Driven Sprocket
Snap Ring
Snap Ring
Snap Ring
Snap Ring
Snap Ring
Snap RingSnap Ring
Snap Ring
Snap Ring
Snap Ring
Snap Ring
Snap Ring
Snap Ring
Good
Bad
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper RubberDamper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper RubberDamper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Damper Rubber
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust SealDust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
!
WARNING
△

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
