DAELIM DAYSTAR Service Manual

8-4
Cylinder Head / Valve

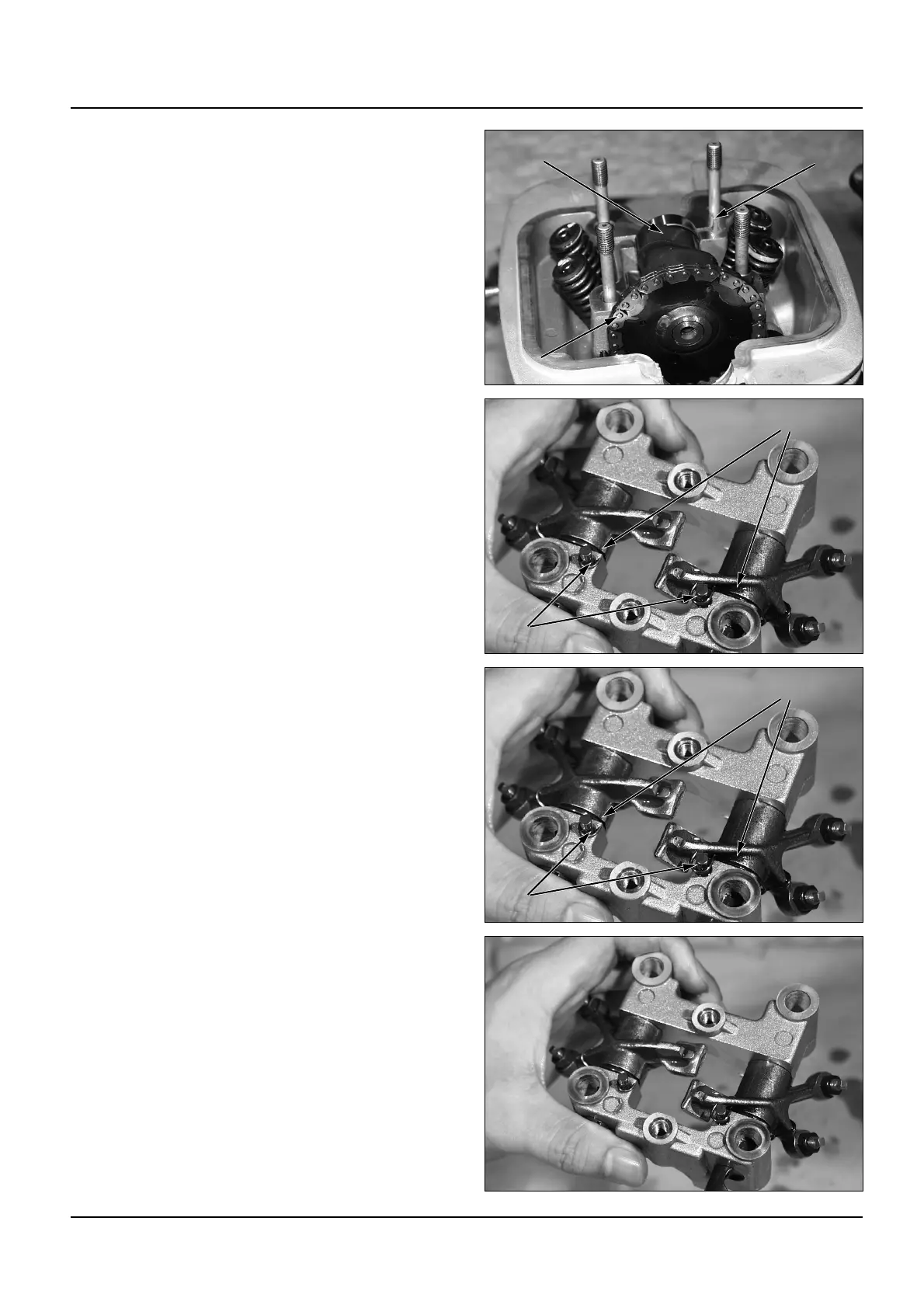

 Remove the cam chain from camshaft.
 In order to separate the cam chain from the
crank case, bind it with the thread or a string.
 Remove the camshaft.
Camshaft Holder Disassembly
 Remove the end of the rocker arm spring from
the dowel pins.
 Remove the dowel pins from the Camshaft
holder using the following
Tools:
- Dowel pin puller set
- Sliding shaft
- Sliding weight
 Put the 6mm bolt into the rocker arm shaft,
remove the rocker arm shaft, pulling the bolt.
 Remove the rocker arm and rocker arm spring
 Remove the other rocker arm shaft, rocker
arm, and rocker arm spring following the same
order.
