DAELIM DAYSTAR Service Manual

8-14
Cylinder Head / Valve

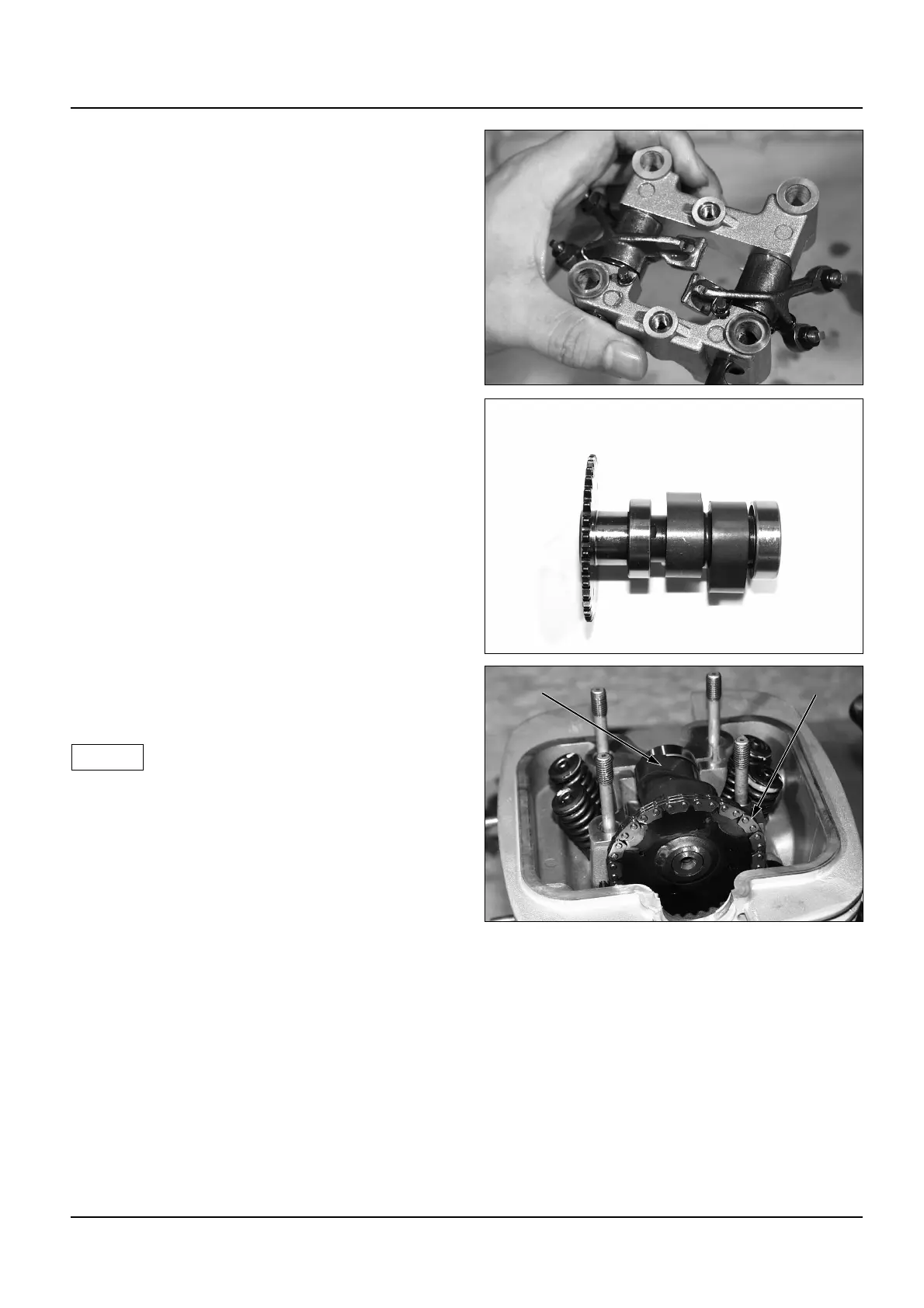

 Insert the dowel pins into the camshaft holder
thoroughly. Align the teeth of the rocker arm
spring with the dowel pins as shown.
 Check the camshaft assy for wear or damage,
and Install the Cylinder head
 Install the cam chain on the cam sprocket.
 Rotate the crankshaft to the left slowly, aligh
Tmark on the flywheel with the index mark
on the left crankcase cover.
 When turning the crankshaft, make sure that
the cam chain does not come off from the
crankshaft timing gear.
 Coat the camshaft with engine oil, and install
the cam lobe on the cylinder head with the cam
lobe facing down. With the timing marks on
the cam sprocket parallel to the top of the
cylinder head, Install the chain and sprocket.
 Install the dowel pins on the cylinder head.
 Install the dowel pin into the cylinder Head.

