DAELIM DAYSTAR Service Manual

8-15
Cylinder Head / Valve

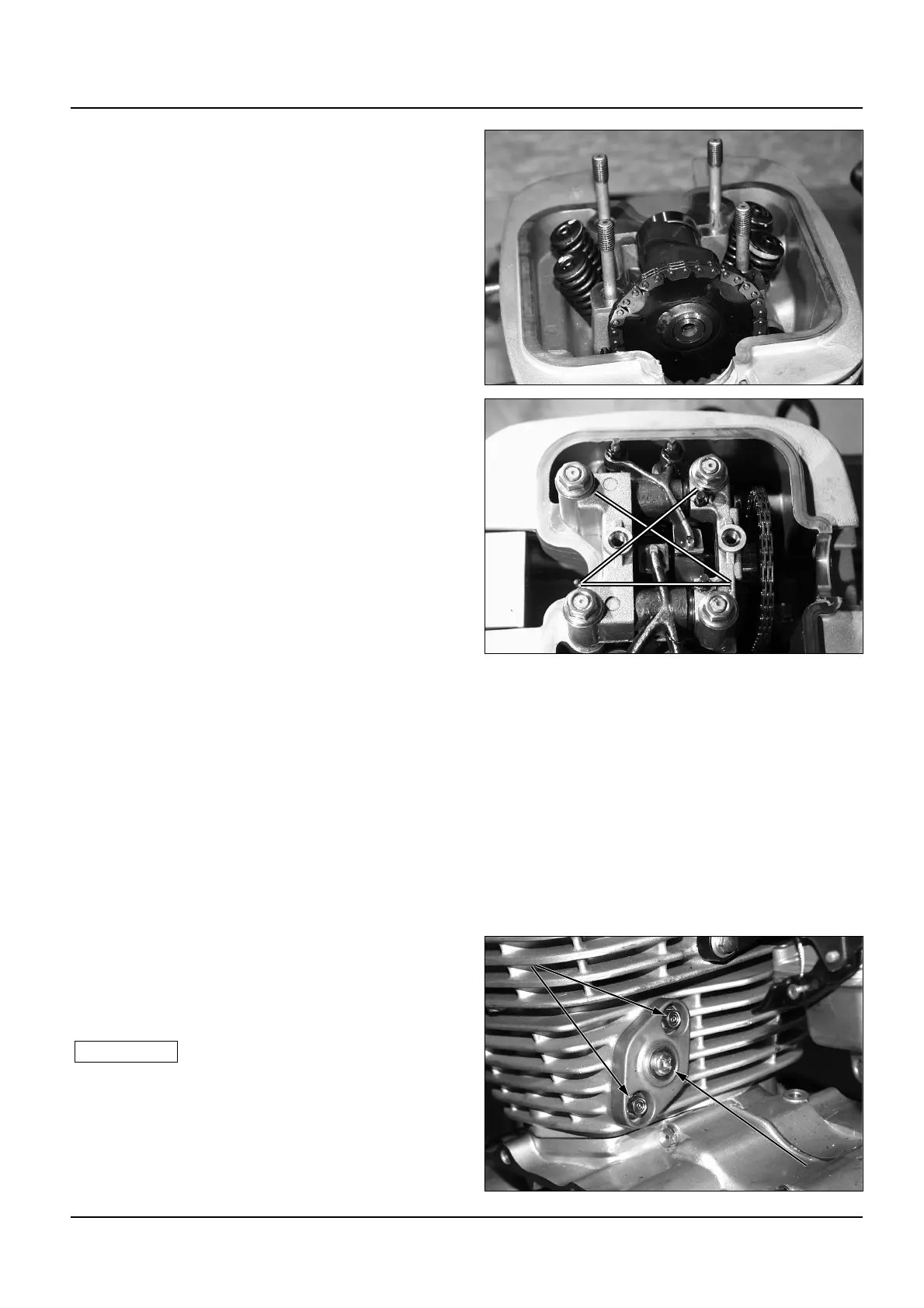

 Install the dowel pin into the cylinder Head.
 Install the camshaft holder.
 Apply engine oil to the nut part, install and
tighten the cam shaft holder nut and bolt in two
or three steps as shown
Torque : 2.0kgf-m(29N.m)
 Remove the sealing screw and washer from the
cam chain tensioner lifter. Remove the shaft
from the body by turning the tensioner shaft to
the right with a small driver.
 When dropping the cam chain tensioner lifter,
the shaft is proceeded by the spring power.
!
CAUTION
△
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing ScrewSealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Mount Bolt
Mount Bolt
Mount Bolt
Mount Bolt
Mount Bolt
Mount BoltMount Bolt
Mount Bolt
Mount Bolt
Mount Bolt
Mount Bolt
Mount Bolt
Mount Bolt

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
