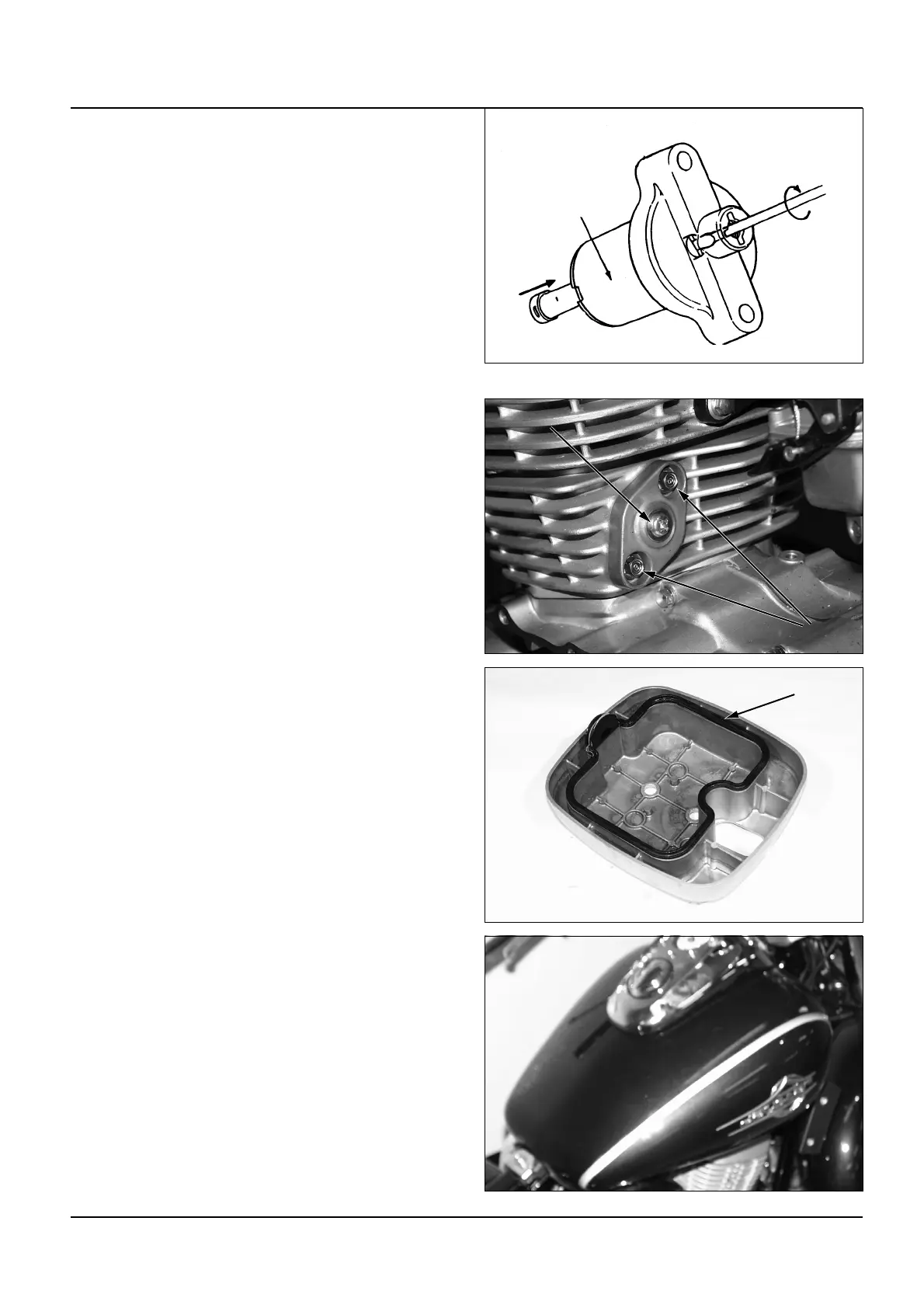

8-16
Cylinder Head / Valve
Hold the tensioner shaft with the light clip as
shown Install a new gasket into the tensioner
lifter, then install the tensioner lifter into the
cylinder.
Install the tensioner mounting bolt.
Torque:1.2kgf-m(12N.m)
From the tensioner lifter, remove the clip
which holds the tensioner shaft.
Install the sealing washer and screw on the
tensioner lifter
Torque:0.4kgf-m(4N.m)
Apply clean engine oil to all the operation
parts of the cylinder head.
Adjust the valve clearance( 3-6)
Install the crankshaft hole cap and timing hole
cap.
Torque:
Crank shaft hole cap: 0.8kgf-m(8N.m)
Timing hole cap: 0.6kgf-m(6N.m)
Clean oil in the slot part of the cylinder
head cover.
Place the gasket on the correct position in the
cover.
Install the cylinder head cover.
Tighten the cylinder cover bolt.
Torque:1.0kgf-m(10N.m)
Install the fuel tank( 4-3)
Tensioner Lifter
Mounting Bolt
Mounting Bolt
Mounting Bolt
Mounting Bolt
Mounting Bolt
Mounting BoltMounting Bolt
Mounting Bolt
Mounting Bolt
Mounting Bolt
Mounting Bolt
Mounting Bolt
Mounting Bolt
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing ScrewSealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Sealing Screw
Gasket
Gasket
Gasket
Gasket
Gasket
GasketGasket
Gasket
Gasket
Gasket
Gasket
Gasket
Gasket
