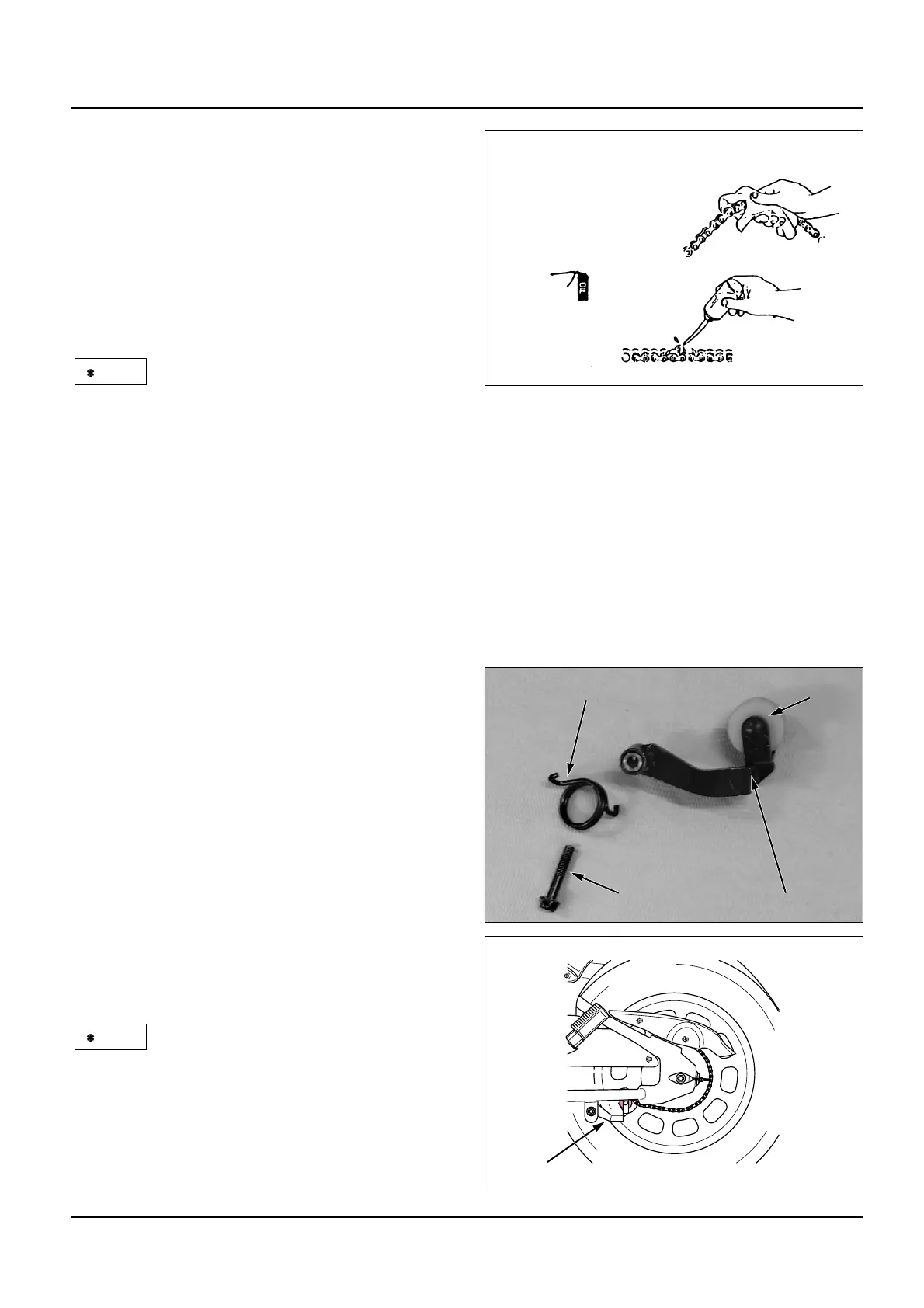

DAELIM DAYSTAR Service Manual

3-9
Maintenance
Installation
 After assembling the chain tensioner, keep the
upper part of bracket which is holding chain
tensioner-roller to the underline of rear swing
arm under pipe.
 Install the drive chain with the closed area of
the clip facing to the proceeding direction.
While driving, master link will be removed
suddenly when facing to the opposite direction.
Check for the master link-to-retainer clip
clearance.
 Inspect the drive chain for adherence and
damaging.
 Remove the contamination with a cleaner.
After drying completely, coat the chain with
#80-90 gear oil. Wipe any excessive oil off
the chain, check the drive chain for wear and
damage, replace it if necessary.
 Check the drive sproket for wear and damage.
 Replace it if necessary.
New motocycle adapts endless-type drive chain
(end-type for after-sales service purpose)
After once disassembling chain, chain clip can
be accidentally removed, so even change new
one after disassembling chain once.
 If the chain or sprocket requires replacement,
the chain and sproket must be replaced as a set.
 Inspect the rollar for wear and damage, and
remove the chain tensioner
Service limit: 30.5mm
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return SpringRR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
RR. Brake Pedal Return Spring
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner RollarChain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Rollar
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner BraketChain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Chain Tensioner Braket
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange BoltFlange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Flange Bolt
Dry
Gear Oil(#80-90)
NOTE
NOTE
Chain tensioner

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
