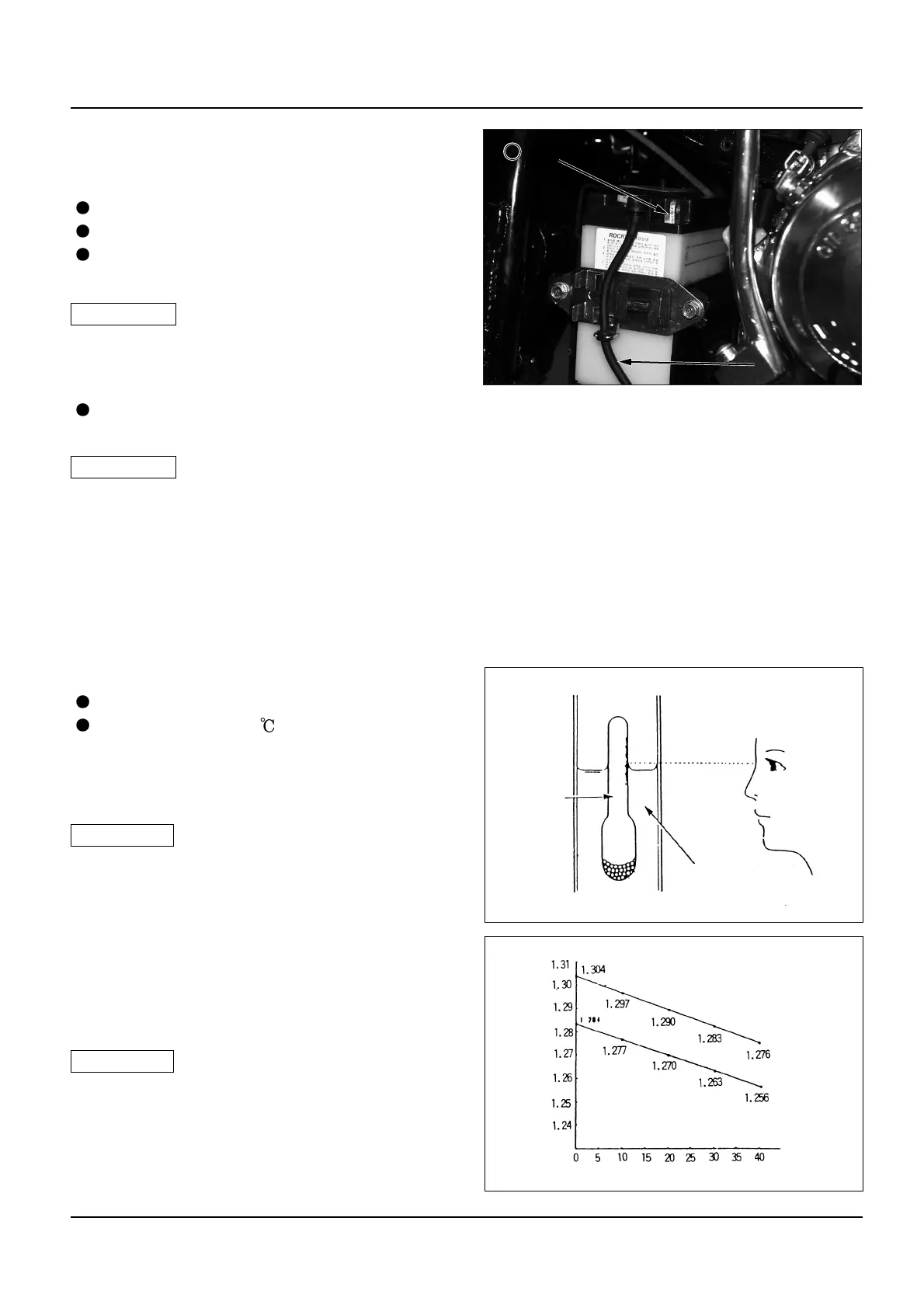

DAELIM DAYSTAR Service Manual

16-3
Charging System/Battery
Battery
Removal
Remove the right side cover.
Disassemble the battery holder.
Remove the battery cable from the battery
terminal.
• Remove the battery negative cable from the
battery first, then the positive cable.
Disconnect the battery bleed tube from the
battery and remove the battery.
• When removing the tube, avoid the battery
fluid from getting in your eyes or on your skin
because the breed tube is often covered with
the battery fluid.
Specific Gravity
Measure the battery specific gravity.
Specific gravity(at 20 ).
1.280 :Fully Charged
Below 1.260:Needs charging
• The battery needs charging when the specific
gravity is below 1.230
• The specific gravity changes according to the
battery temperature as shown.
• Replace the battery with a new battery when it
has white cells.
• Replace the battery with a new one when it has
a deposit in the lower part of the battery.
• The battery electrolyte contains sulfuric acid.
• Avoid contact with skin or clothing. If
electrolyte gets in your eyes, flush them
thoroughly with water and get prompt medical
attention.
Electrolyte Temperature
。
C
Bleed Tube
Bleed Tube
Bleed Tube
Bleed Tube
Bleed Tube
Bleed TubeBleed Tube
Bleed Tube
Bleed Tube
Bleed Tube
Bleed Tube
Bleed Tube
Bleed Tube
!
CAUTION
△
!
CAUTION
△
Specific
Gravity
Electrolyte
Hydro
Meter
Battery Temperature VS
Specific Gravity
!
CAUTION
△
!
CAUTION
△
+ Terminal
+ Terminal
+ Terminal
+ Terminal
+ Terminal
+ Terminal+ Terminal
+ Terminal
+ Terminal
+ Terminal
+ Terminal
+ Terminal
+ Terminal

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
