DAELIM DAYSTAR Service Manual

18-2
Electric Starter

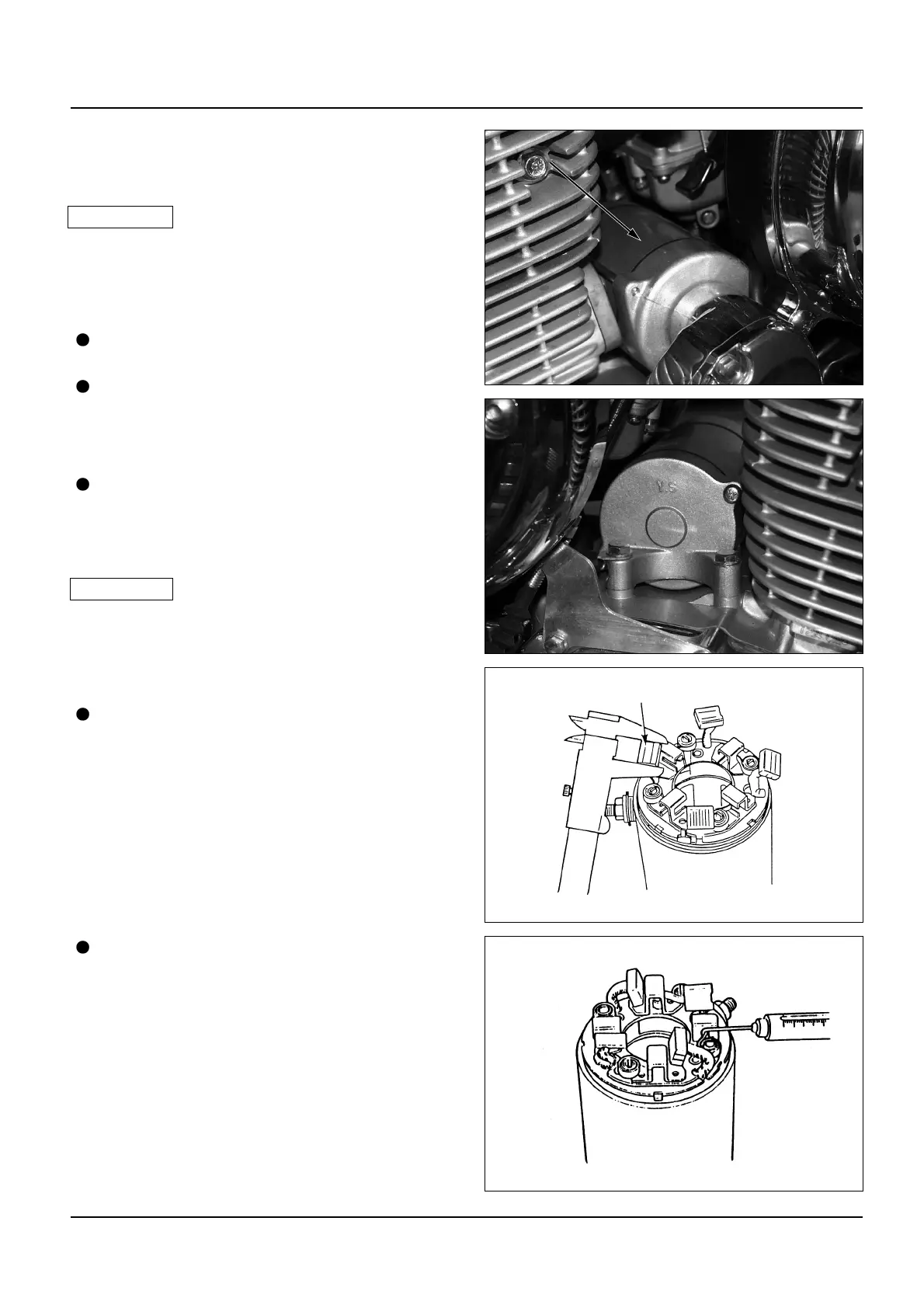

Starter Motor
Removal
• Turn the main switch OFF before servicing the
starter motor.
• The main switch ON brings about an injury.
Remove the starter motor cable from the
motor.
Remove the starter motor mounting bolt, and
starter motor.
Disassembly
Remove the following parts
- Motor case
- Front cover, rear cover
- Armature
• Check the trust washer for position and
number of sheet.
Inspection
Measure the brush length.
Service Limit: 8.5mm (0.33in)
Measure the spring tension.
Service Limit: 350g (771Ib)
!
CAUTION
△
Starter Motor
Starter Motor
Starter Motor
Starter Motor
Starter Motor
Starter MotorStarter Motor
Starter Motor
Starter Motor
Starter Motor
Starter Motor
Starter Motor
Starter Motor
Brush
!
CAUTION
△

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
