Fuel System

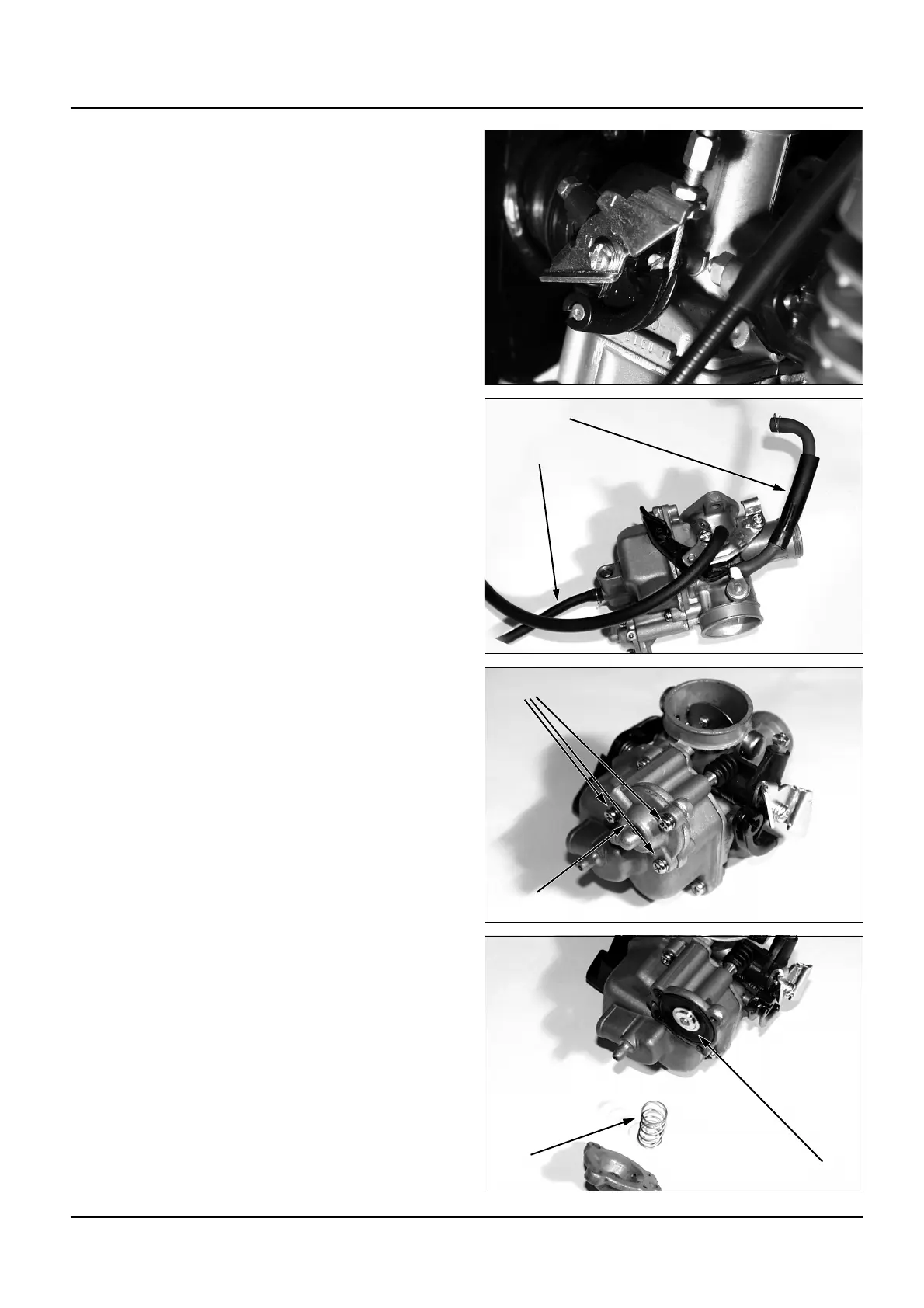

 Remove the throttle cable.
 Loosen the carburetor mounting nut, and
remove the carburetor.
Disassembly
 Remove the fuel and drain tube.
Accelerator Pump
 Take of the 3 screws, and remove the pump
cover.
 Remove the spring.
 Inspect the damage of Accelerator pump rod
and diaphragm. Blow the fuel pathway of
diaphragm with air lightly and clean the
clogged place.
