Daikin DCM601A52 - Page 183

User’s Manual EM11A015B
intelligent Touch Manager
182

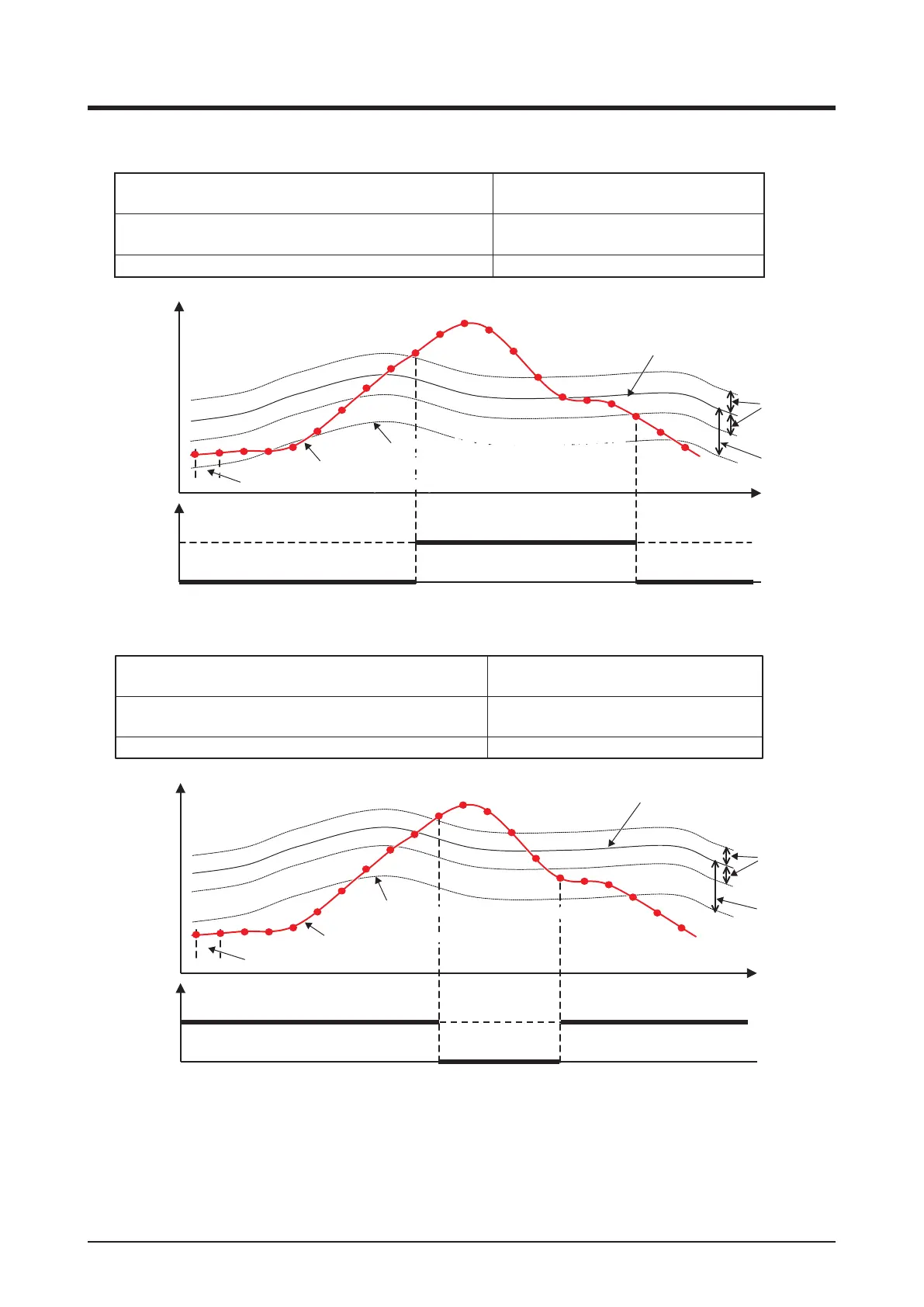

• Similarly, two analog values are compared as follows.
Success
Failure
HysteresisHysteresis
Assessment interval (1 minute)Assessment interval (1 minute)
Time
Analog value
Assessment
Offset
Offset
Analog value at management point (2)Analog value at management point (2)
Management point (2) + OffsetManagement point (2) + Offset
Example: [Analog value at the management point > Analog value at the management point + Offset ± Hysteresis]
Analog value at management point (1) >
Analog value at management point (2) + Offset + Hysteresis
Analog value at management point (1) <
Analog value at management point (2) + Offset – Hysteresis
Success
Failure
Except above
Not assessed (Previous assessment kept)
Analog value at management point (1)Analog value at management point (1)
Success
Failure
HysteresisHysteresis
Assessment interval (1 minute)Assessment interval (1 minute)
TimeTime
Analog value
Assessment
Offset
Offset
Analog value at management point (2)Analog value at management point (2)
Management point (2) + OffsetManagement point (2) + Offset
Range condition can be defined by combining the two cases above.
Example: [Analog value at the management point < Analog value at the management point + Offset ± Hysteresis]
Analog value at management point (1) <
Analog value at management point (2) + Offset – Hysteresis
Analog value at management point (1) >
Analog value at management point (2) + Offset + Hysteresis
Success
Failure
Except above
Not assessed (Previous assessment kept)
Analog value at management point (1)Analog value at management point (1)
