Daikin DCM601A52 - Layout View (Optional) Screen

User’s Manual EM11A015B
intelligent Touch Manager
56

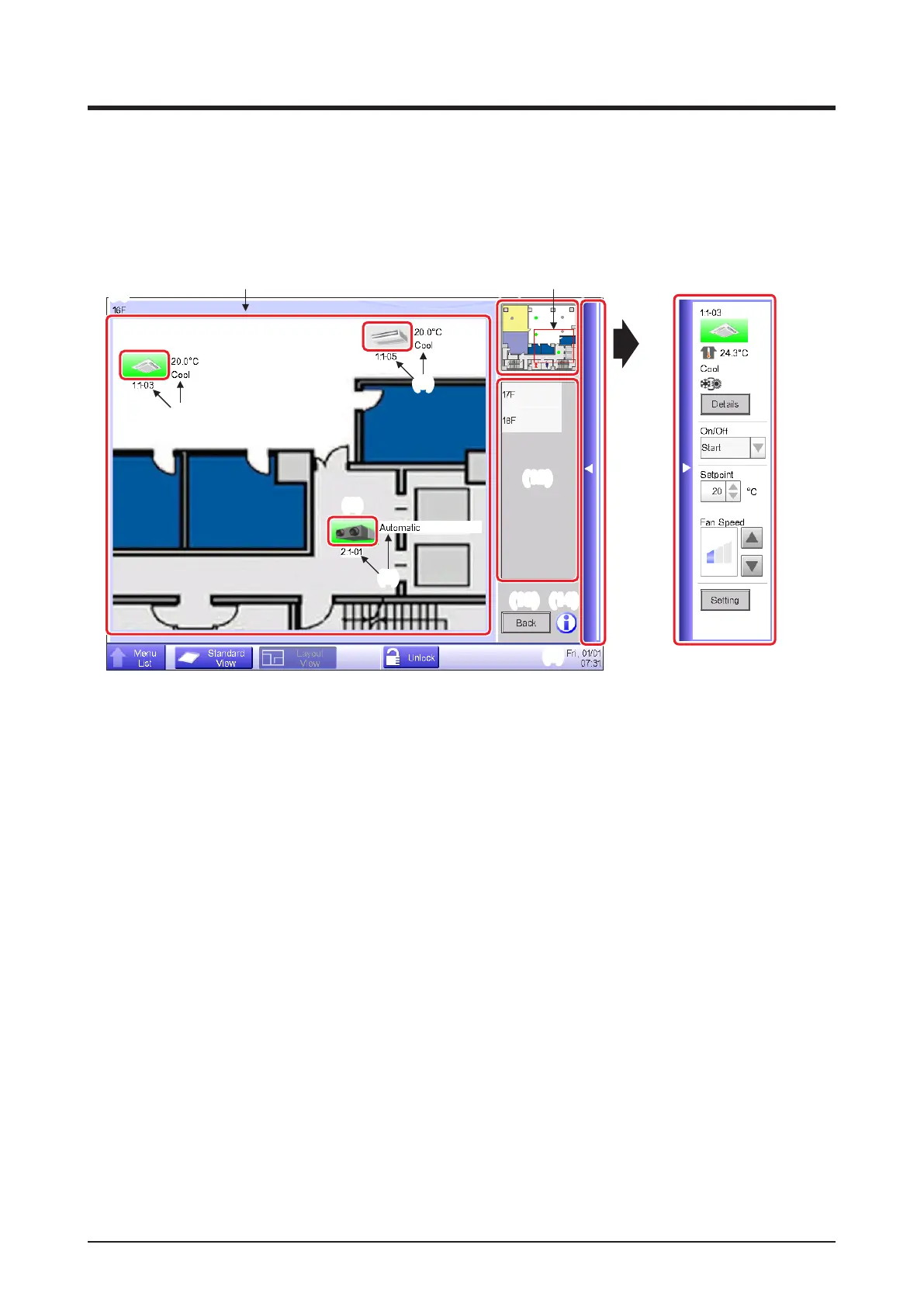

4-4 Layout View (Optional) Screen
The Layout View screen is displayed only when the Layout option is enabled.
The Layout View screen appears when you touch the Layout View switch button on the Standard
View screen (see “4-2 Standard View (Icon) Screen” and “4-3 Standard View (List) Screen”).
(15)
(6)
(7)
(9)
(1) (2) (3) (4)
(5)
(13)
(14)
(12)
(11)
(10)
(8)
(15)
(9)
(8)
(9)
(8)
(1) Menu List switch button
Switches to the Menu List screen, which consists of Automatic Ctrl., System Settings, Operation
Mgmt. and Energy Navigator (optional) tabs.
(2) Standard View switch button
Switches from the Layout View to the Standard View screen.
(3) Layout View switch button
Displayed when the button is pressed while the Layout View is being displayed.
(4) Lock/Unlock button
Locks/Unlocks the screen. Not displayed when screen lock is not enabled.
(5) Time
Displays the current time.
(6) Title
Displays the name of the displayed screen.
(7) Background
Displays the background image set up to the screen.
