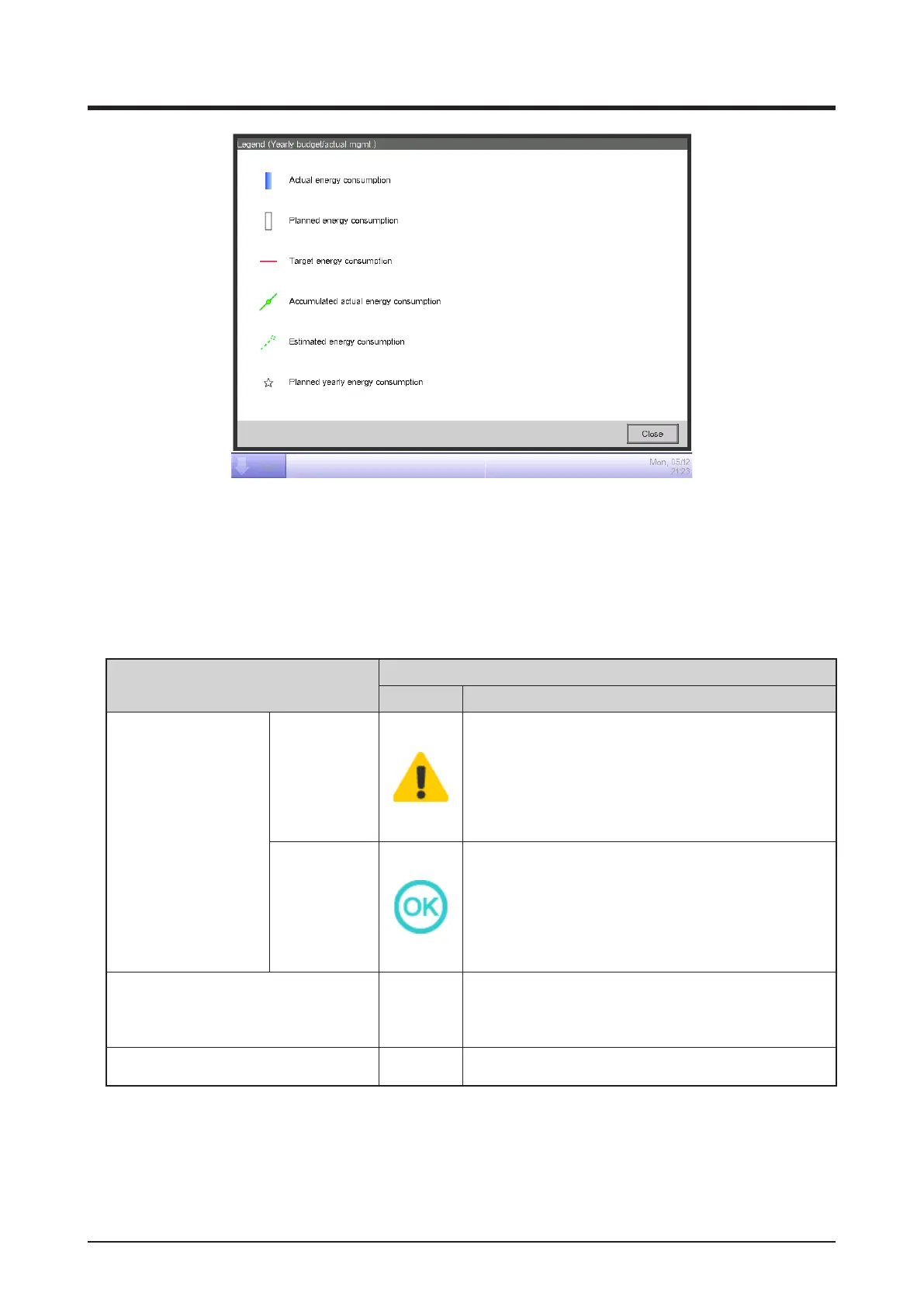

displays icons along with messages in accordance with the level of achievement of the energy
consumption plan.
Also, touching a month on the graph displays the actual energy consumption, planned value, and
target value for that month in a tool tip.
When the screen is displaying the last year
Classication
Displayed information
Icon Message
When both actual energy
consumption and
planned energy
consumption exist
Accumulated
energy
consumption –
Planned
accumulated
energy
consumption >0
Excess over planned energy consumption: ..% (...kWh)
– Accumulated energy consumption: ............... kWh
– Planned yearly energy consumption: ............ kWh
Accumulated
energy
consumption –
Planned
accumulated
energy
consumption ≤0
Excess over planned energy consumption: .....Nothing
– Accumulated energy consumption: ...............kWh
– Planned yearly energy consumption: ............ kWh
When only the actual energy consumption
exists
(When energy consumption plan is not
set)
– Accumulated energy consumption: ......................kWh
When neither actual energy consumption
nor planned energy consumption exists
– (No messages are displayed)
