User’s Manual EM11A015B
intelligent Touch Manager
257
(3)
(2)(2)

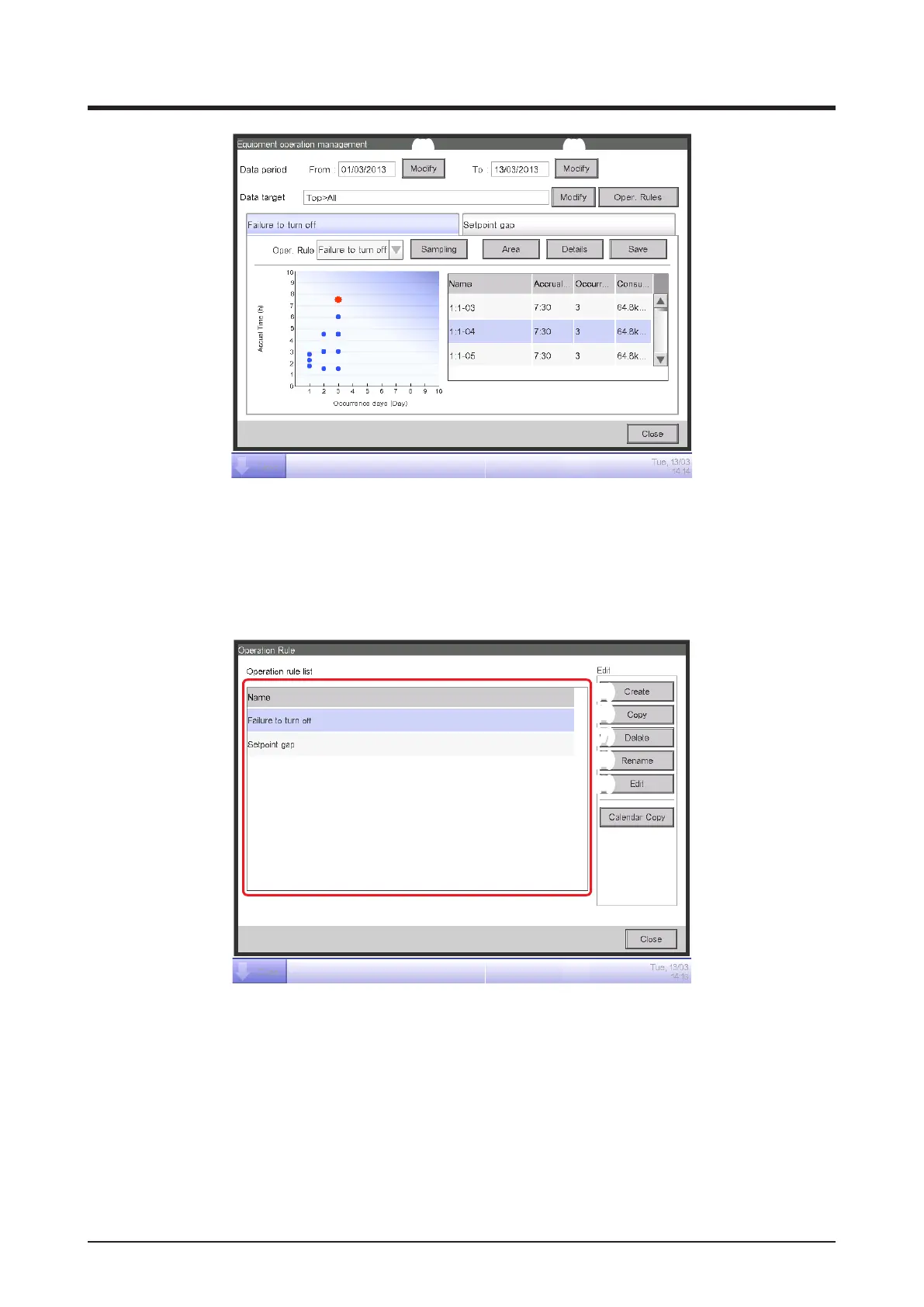

Touch Modify button (2) and display the date input dialog to specify the period of the data shown
on the screen. The period is up to 31 days. The data of past 13 months is stored in iTM.
Touch the Oper. Rules button (3) and display the Operation Rule screen. The Oper. Rules button
is available on both tabs.
(4)
(5)
(6)
(7)
(8)
(9)
(4) is the list of registered operation rules. Perform the intended operation by touching the
relevant button on the right.
(5) Create button
Creates a new operation rule. You can create up to 10 operation rules including those registered
by default.
Enter a name in the Name Input dialog that appears. Touch the OK button to register the name
in (4)
.
To Next Page
